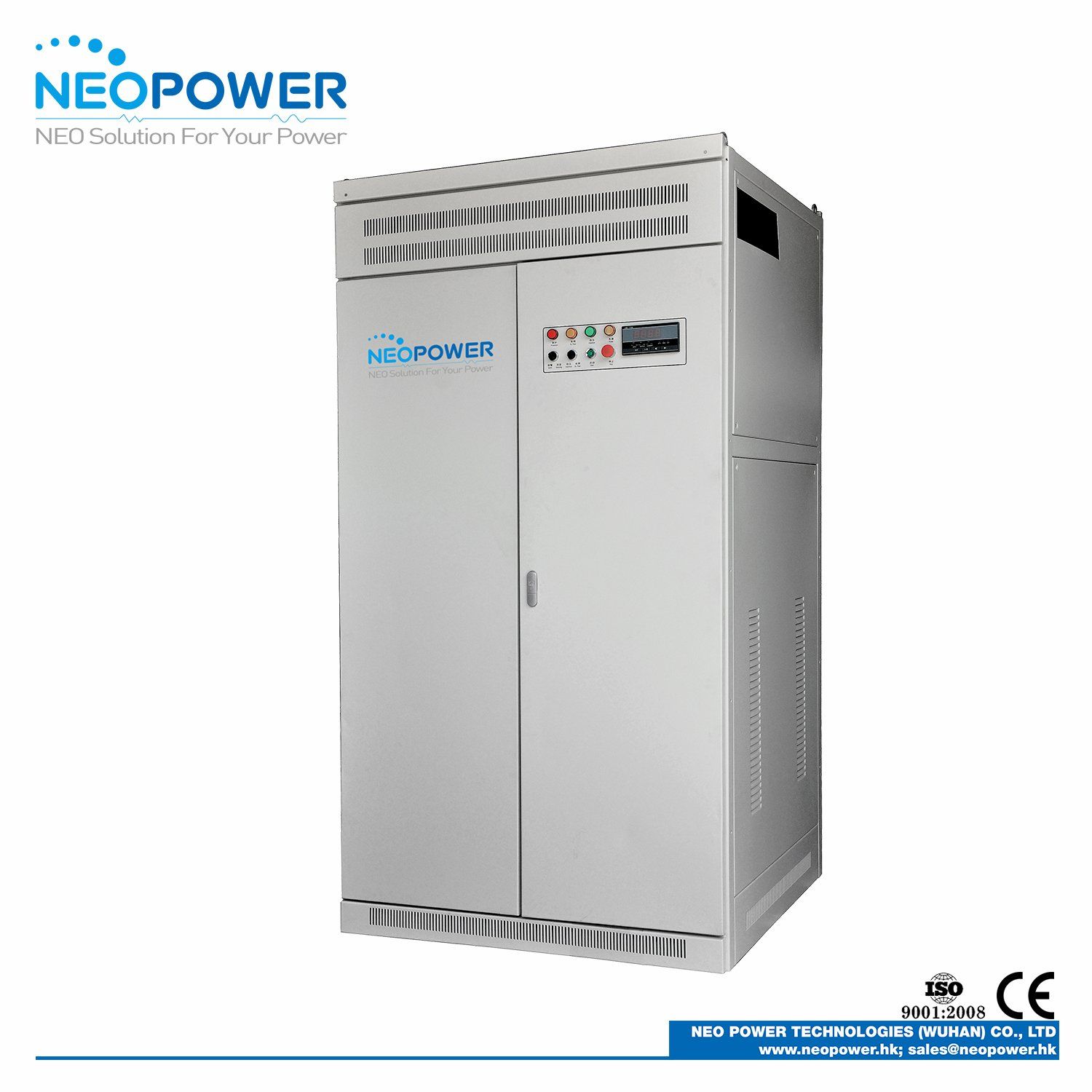

Three Phase Generator AVR AC Power Voltage Regulator (SBW/DBW/SVC 15~3000kVA)
Price: |
US $ 1000-10000/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Prod Model: |
NPT-2500H-3P-RX |
Capacity: |
10~3000 kVA |
Input Voltage: |
380V/400V/415V +/-20% |
Output Accuracy: |
+/-2% ~ 3% |
Circuit: |
Electronic Type |
Architecture: |
Contactless |
Regulation Time: |
<40ms |
Communication Port: |
RS485/RS232/Dry Contact |
Protection Level: |
IP21 ~ IP54 |
Bypass: |
Yes |
Certificate: |
Ce |
Current Type: |
AC |
Phase: |
Three Phase |
Usage: |
JIW |
Frequency: |
Industrial Frequency |
Brand: |
Neopower |
Product Description
Model | NPW-2500H-3P-R20 |
Capacity | 10~3000 kVA |
Power Rating | 8~2400 kW |
Input Voltage | 380/400/415 Vac +/-20%, three phase + N + PE |
Input Frequency | 40 ~ 65 Hz |
Output Voltage | 380/400/415 Vac +/-2% ~ 3%, three phase + N + PE |
Output Frequency | input frequency synchronized |
Output Power Factor | 0.8/0.9 |
Response Time | < 200 ms |
Regulation Time | 10% variation within 40 ms |
Surge Rating | 1000% max current for 2 seconds; 300% max current for 1 minute; 200% max current for 2 minutes |
Harmonic Distortion | Less than 1% |
Efficiency | 98% |
Display | LED display |
Communication Port | RS 232 / RS 485 / SNMP Card / Dry Contact |
Operation Temperature | -10 ~ 50ºC |
Protection | over/low voltage, overload, short circuit, phase failure |
Function | manual bypass mode, auto bypass switch, auto restart |
Option | isolation transformer, output circuit breaker, ATS, lightning surge arrestor, IP21 ~ IP54, LCD display, RS485 port |
Protection Level | IP20 |
Noise | < 60 dB |
Temperature | -15 ~ 45 ºC |
Humidity | 95% (non-condensing) |
Altitude | 1000 m |
Alarm | buzzer + LED indicators (+optional LCD display) |
Standards | EMI: IEC50091-1; EMC: IEC50091-2 |
Dimension | 1200 * 1000 * 2000 mm |
Net Weight | 1500 kG |
ELECTRICAL COMPONENTS |
|
ISOLATION TRANSFORMER |
|

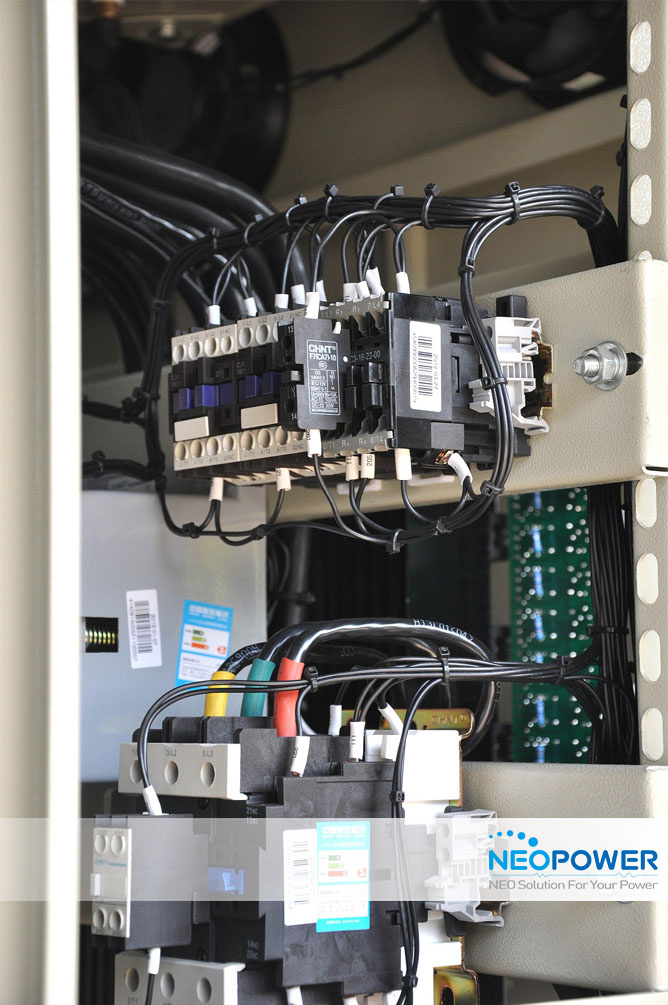

CIRCUIT BREAKERS |
|

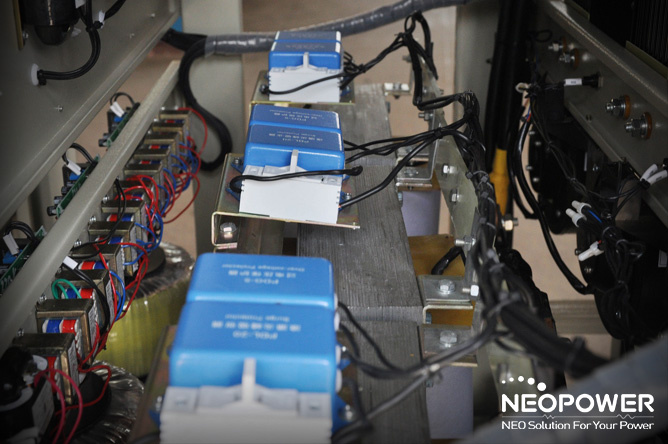

SURGE SUPPRESSORS |
|
Industrial Grade
Low Noise
IGBT Module
Ultra Fast Regulation
Bypass Mode Available
LCD Touch Screen & LED Display Options
NEOPOWER was born for providing high efficient and reliable solutions and products for people who are living with power problems, like power surges, sags, spikes, fails, harmonic etc. Integrating R&D, manufacturing, marketing, and sales, NEOPOWER supplies various power products, such as Uninterruptible Power Supplies (UPS), Automatic Voltage Regulators/Stabilizers (AVR/AVS), Inverters & Chargers, Load Banks, Voltage Optimizers, Voltage Transformers, Surge Protective Devices (SPD), and Power Distribution Units (PDU).
NEOPOWER set foot in power optimization in early 1990s. Now the power product range covers miscellaneous fields: Not only precision machines in telecommunications, IT, TV or radio broadcasting, and medical systems, but also heavy equipment in oil & gas, military, mining, HVAC, fire-fighting, and building. Where there are power problems, there are NEO Solutions.
Certified with ISO9001, NEOPWOER has received wide recognition from partners in Africa, Middle East, Southest Asia, Europe, the Caribbean, and Latin America during past decades, and has exclusive distributors in Kenya, Papua New Guinea, and Zimbabwe, authorized distributors in Ghana, Zambia, Ethiopia, and Nigeria, and Philipines exclusive distributor is in progress.
NEO: The New, Effective, Optimistic attitudes towards your power problems!
Slogan: NEO Solution For Your Power
Purpose: To be a global leading expert in power optimization.
Mission: To multiply values for our customers and our employees, to improve energy efficiency for our society.
Vision: After equipped with NEOPOWER products, people are no longer tormented by the poor power quality from their daily life, production, and work.
Value: Adhering to the customer demand-oriented development and sincere customer care principles, deeply understanding customers' demands, providing instructive solutions and finally creating value for them.
Quality: Pursuing high-quality products and efficient services, taking an uncompromising attitude towards the quality problems.
