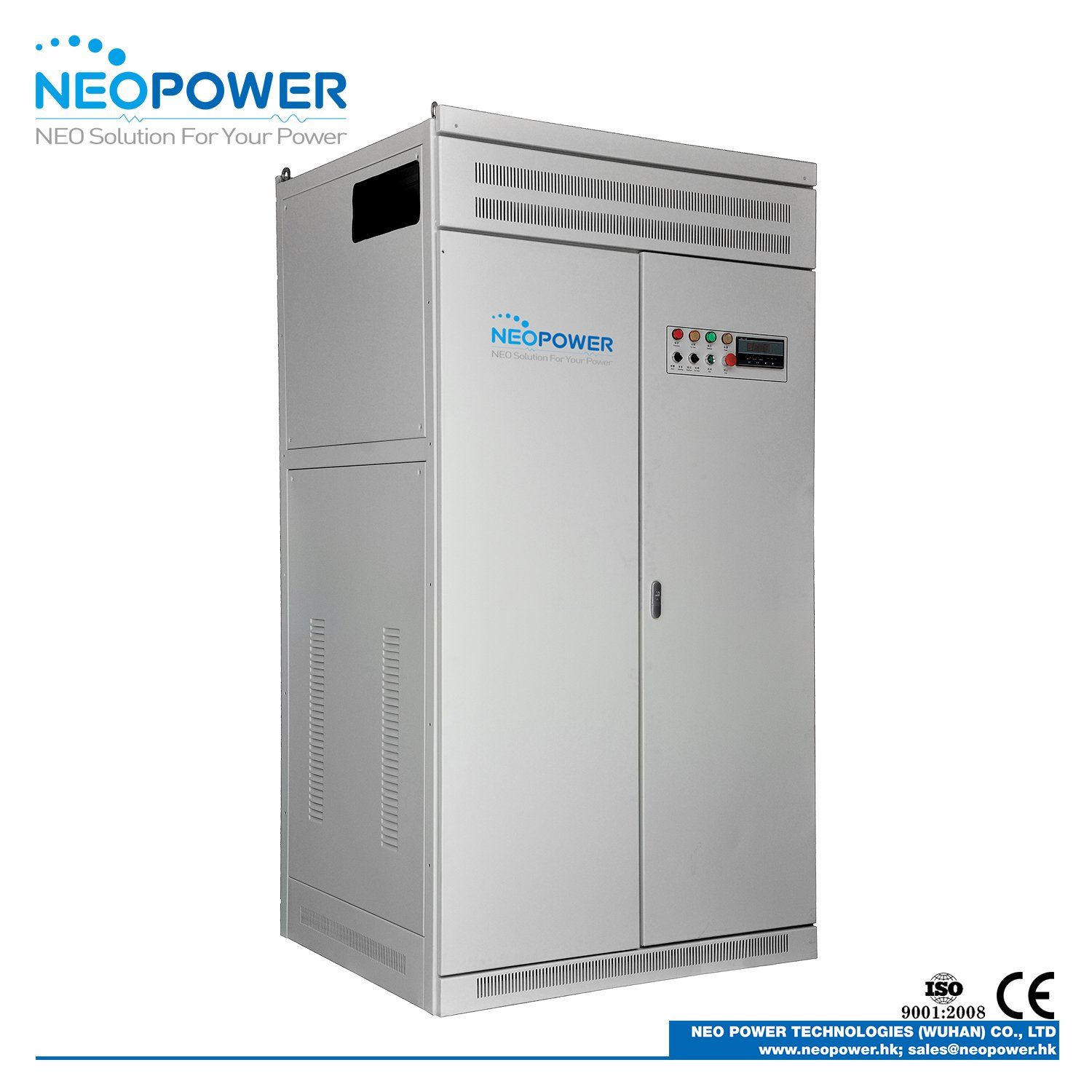

| Model | NPT-XH-3P-RX |
| Capacity | 10~3000 kVA |
| Power Rating | 8~2400 kW |
| Input Voltage | 380/400/415 Vac +/-20%, three phase + N + PE |
| Input Frequency | 40 ~ 65 Hz |
| Output Voltage | 380/400/415 Vac +/-2% ~ 3%, three phase + N + PE |
| Output Frequency | input frequency synchronized |
| Output Power Factor | 0.8/0.9 |
| Response Time | < 40 ms |
| Regulation Time | 10% variation within 40 ms |
| Surge Rating | 1000% max current for 2 seconds;
300% max current for 1 minute;
200% max current for 2 minutes |
| Harmonic Distortion | Less than 1% |
| Efficiency | 98% |
| Display | LED display |
| Communication Port | RS 232 / RS 485 / SNMP Card / Dry Contact |
| Operation Temperature | -10 ~ 50ºC |
| Protection | over/low voltage, overload, short circuit, phase failure |
| Function | manual bypass mode, auto bypass switch, auto restart |
| Option | isolation transformer, output circuit breaker, ATS, lightning surge arrestor,
IP21 ~ IP54, LCD display, RS485 port |
| Protection Level | IP20 |
| Noise | < 60 dB |
| Temperature | -15 ~ 45 ºC |
| Humidity | 95% (non-condensing) |
| Altitude | 1000 m |
| Alarm | buzzer + LED indicators (+optional LCD display) |
| Standards | EMI: IEC50091-1; EMC: IEC50091-2 |
| Dimension | 1200 * 1000 * 2000 mm |
| Net Weight | 1500 kG |

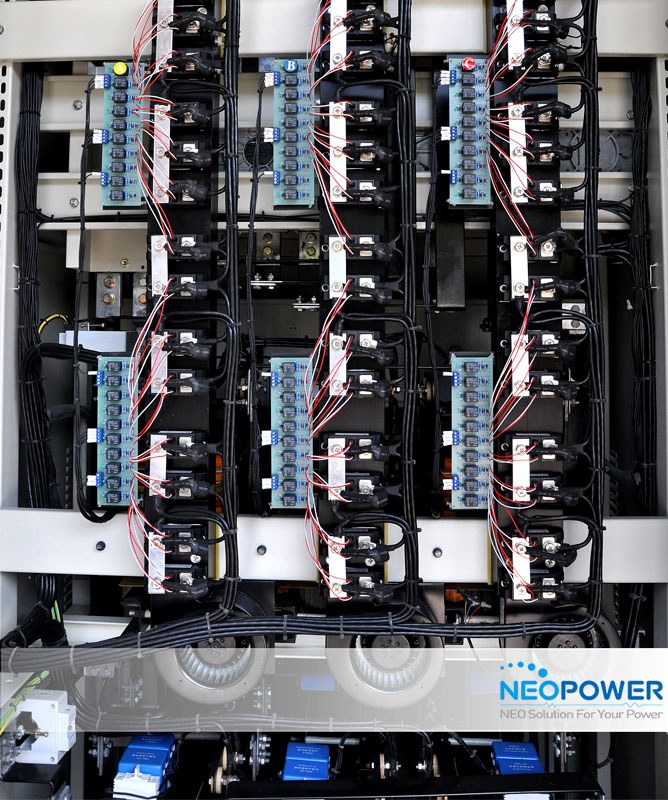

| SCR MODULE |
 |

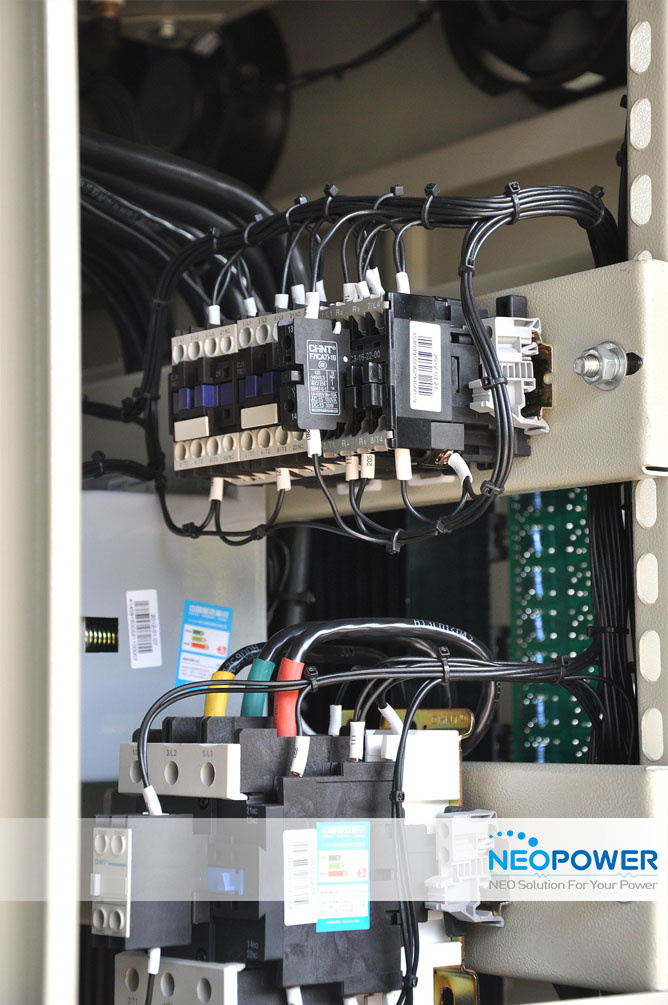

| ELECTRICAL COMPONENTS |
 |

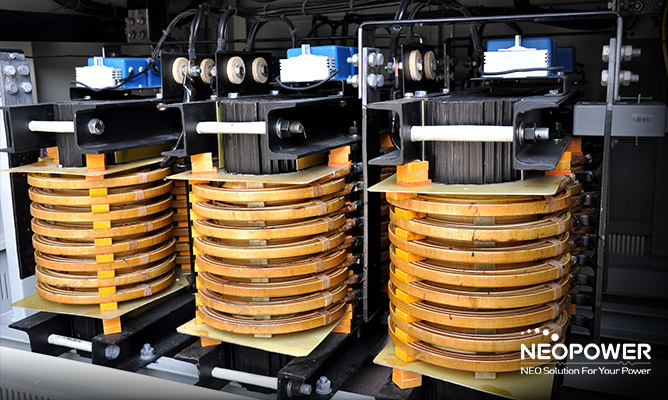

| ISOLATION TRANSFORMER |
 |

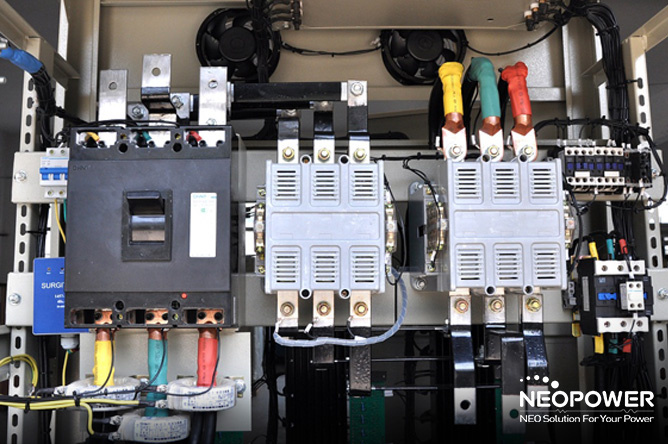

| CIRCUIT BREAKERS |
|
| SURGE SUPPRESSORS |
 |
Low Noise
SCR Module
Static Electronics
Industrial Footprint
Ultra Fast Regulation
Bypass Mode Available
LCD Touch Screen & LED Display Options
NEOPOWER apply for various specific applications and provide integrated power solution: electric environmental
consideration, load arrangements' optimization, power capacity matching advices, customization design, highly
effective manufacturing, on time technical support & etc. We're providing absolute NEO Solution For Your POWER™.
NEOPOWER is able to meet most requirements of customers by our strong developing ability.
When custom built solutions are required, we can design & make it accordingly based on certain accepted quantity.
1. How's your production strength?
A: We have own factories and independent production lines for each type of products respectively. Usually we can supply approx 200 ~ 300 sets of heavy duty equipment and 2,000 ~ 3,000 pcs of low powered devices.
2. How's your lead time?
A: We have stocks of some hot sales. For low powered devices, it takes shorter than a week, while for high powered equipment, it is expected to spend 15 ~ 20 working days on production.
3. How can you guarantee the aftersales?
A: Generally we offer a standard one-year warranty. One or more year of extensions will be available as value added services. If there is any issue caused by quality defects during the warranty, we will deliver replacement by air free of charge, even send technical personnel to service on site.
4. How can I practice the commission and installation by myself?
A: We provide detailed user manual which presents plenty of instruction figures along with the goods. There are instruction video as well. Meanwhile, we offer onsite commission as value added service. Or our 24/7 response delivers assistants and guidance whenever you need.
5. I want to operate own brand, do you provide OEM or ODM services?
A: Yes, we do. And we have close relationship with a group of talents on designing and branding, who will well understand your ideas and propose appropriate solutions.
6. I am not sure of your quality before testing a sample.
A: Sample order is accepted and we provide free samples for low powered devices.
7. What's your MOQ?
A: Any quantity is accepted for sample order. For OEM, the MOQ should be more than 200 EA.
8. What about the shipment?
A: We deliver low powered device or single unit by air. DHL, FedEx, TNT, Aramex, UPS, EMS are all available according to your requirement.
9. What's the trade term?
A: That depends. FOB, CIF, CFR(also CNF), and EXW are frequently used. Sometimes we also accept DDP.
10. Which payment do you accept?
A: Most cases we prefer payment by T/T. L/C and PayPal are accepted too.
NEOPOWER was born for providing high efficient and reliable solutions and products for people who are living with power problems, like power surges, sags, spikes, fails, harmonic etc. Integrating R&D, manufacturing, marketing, and sales, NEOPOWER supplies various power products, such as Uninterruptible Power Supplies (UPS), Automatic Voltage Regulators/Stabilizers (AVR/AVS), Inverters & Chargers, Load Banks, Voltage Optimizers, Voltage Transformers, Surge Protective Devices (SPD), and Power Distribution Units (PDU).
NEOPOWER set foot in power optimization in early 1990s. Now the power product range covers miscellaneous fields: Not only precision machines in telecommunications, IT, TV or radio broadcasting, and medical systems, but also heavy equipment in oil & gas, military, mining, HVAC, fire-fighting, and building. Where there are power problems, there are NEO Solutions.
Certified with ISO9001, NEOPWOER has received wide recognition from partners in Africa, Middle East, Southest Asia, Europe, the Caribbean, and Latin America during past decades, and has exclusive distributors in Kenya, Papua New Guinea, and Zimbabwe, authorized distributors in Ghana, Zambia, Ethiopia, and Nigeria, and Philipines exclusive distributor is in progress.
NEO: The New, Effective, Optimistic attitudes towards your power problems!
Slogan: NEO Solution For Your Power
Purpose: To be a global leading expert in power optimization.
Mission: To multiply values for our customers and our employees, to improve energy efficiency for our society.
Vision: After equipped with NEOPOWER products, people are no longer tormented by the poor power quality from their daily life, production, and work.
Value: Adhering to the customer demand-oriented development and sincere customer care principles, deeply understanding customers' demands, providing instructive solutions and finally creating value for them.
Quality: Pursuing high-quality products and efficient services, taking an uncompromising attitude towards the quality problems.
