75kVA Static Voltage Stabilizer for Precision Machines
Price: |
US $ 1805-2135/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Prod Model: |
NPT-75H-3P-R15 |
Capacity: |
75kVA |
Control: |
Static Electronic |
Input Voltage: |
380V/400V/415V |
Regulation Range: |
15%/20%/25%/30%/40% |
Output Precision: |
±2% |
Regulation Time: |
<40ms |
Nominal Frequency: |
50Hz |
Architecture: |
Contact-Less |
Display: |
LED/LCD |
Weatherproof: |
IP20-IP54 |
Current Type: |
AC |
Phase: |
Three Phase |
Usage: |
SBW |
Frequency: |
Industrial Frequency |
Brand: |
Neopower |
Product Description
Model | NPT-75H-3P-R15 |
Capacity | 75 kVA |
Power Rating | 60 kW |
Input Voltage | 380/400/415 Vac +/-40%, three phase + N + PE |
Input Frequency | 47 ~ 65 Hz |
Output Voltage | 380/400/415 Vac +/-2% ~ 3%, three phase + N + PE |
Output Frequency | input frequency synchronized |
Output Power Factor | 0.8 |
Response Time | < 40 ms |
Regulation Time | 10% variation within 40 ms |
Surge Rating | 1000% max current for 2 seconds; 300% max current for 1 minute; 200% max current for 2 minutes |
Harmonic Distortion | Less than 1% |
Efficiency | 98% |
Display | LED |
Communication Port | RS485 |
Operation Temperature | -15 ~ 45ºC |
Protection | over/low voltage, overload, short circuit, phase failure |
Function | manual bypass mode, auto bypass switch, auto restart |
Option | isolation transformer, output circuit breaker, ATS, lightning surge arrestor, IP21 ~ IP54, LCD display, RS485 port |
Protection Level | IP20 |
Noise | < 60 dB |
Temperature | -15 ~ 45 ºC |
Humidity | 95% (non-condensing) |
Altitude | 1000 m |
Alarm | buzzer + LED indicators (+optional LCD display) |
Standards | EMC Directive 2004/108/EC; LV Directive 2006/95/EC |
Dimension | 750 * 650 * 1700 mm |
Net Weight | 330 kG |
IGBT MODULE |
|

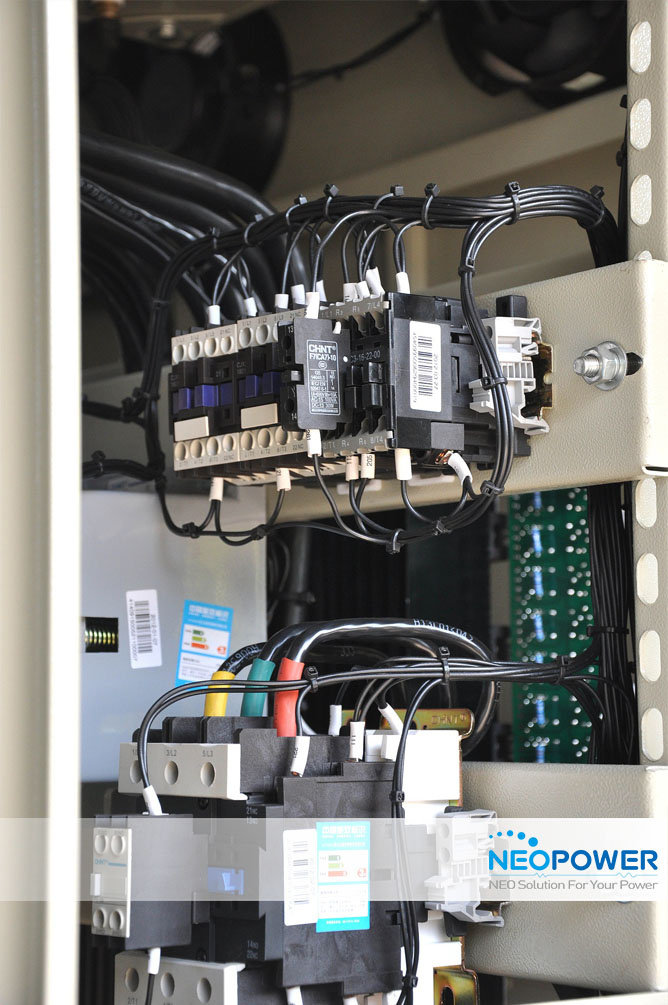

ELECTRICAL COMPONENTS |
|
ISOLATION TRANSFORMER |
|

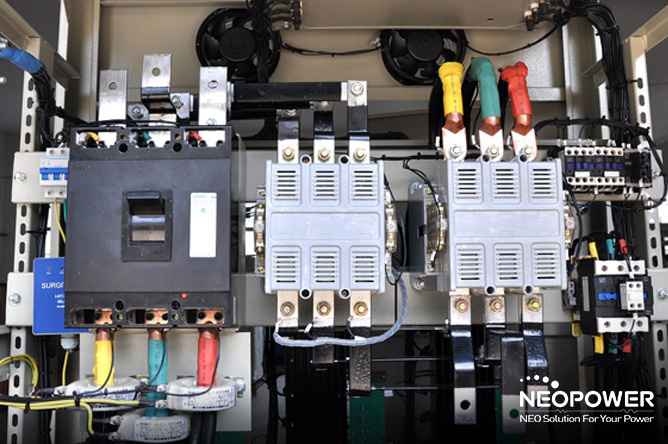

CIRCUIT BREAKERS |
|

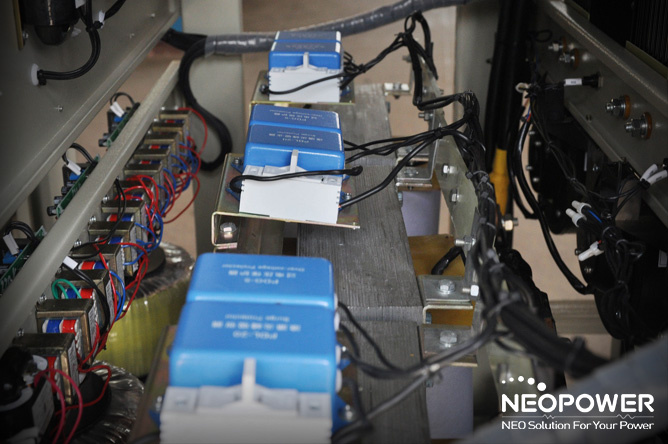

SURGE SUPPRESSORS |
|

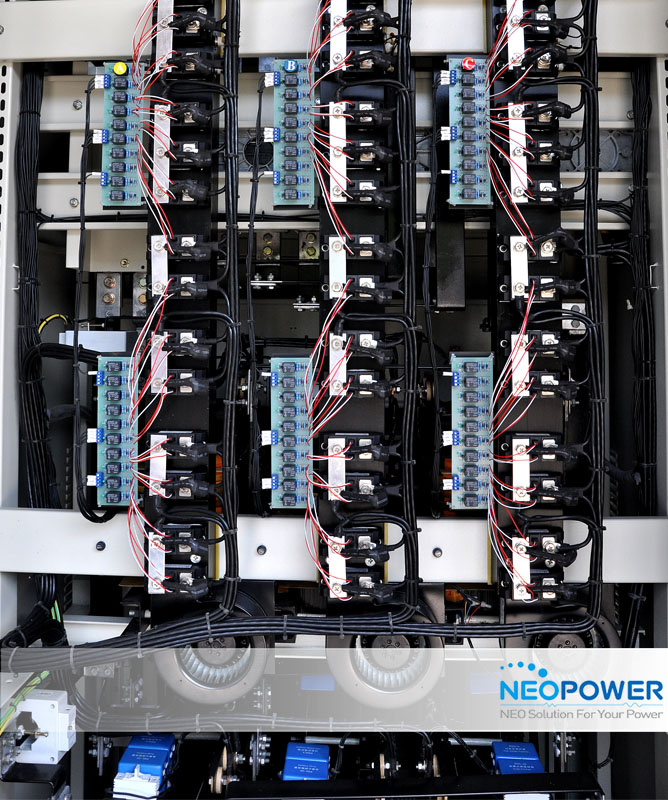

IGBT Module
High Accuracy
No Noise Operation
Laboratory Footprint
Ultra Fast Regulation
Contactless Technology
Bypass Mode Available
LED/LCD Display Options
