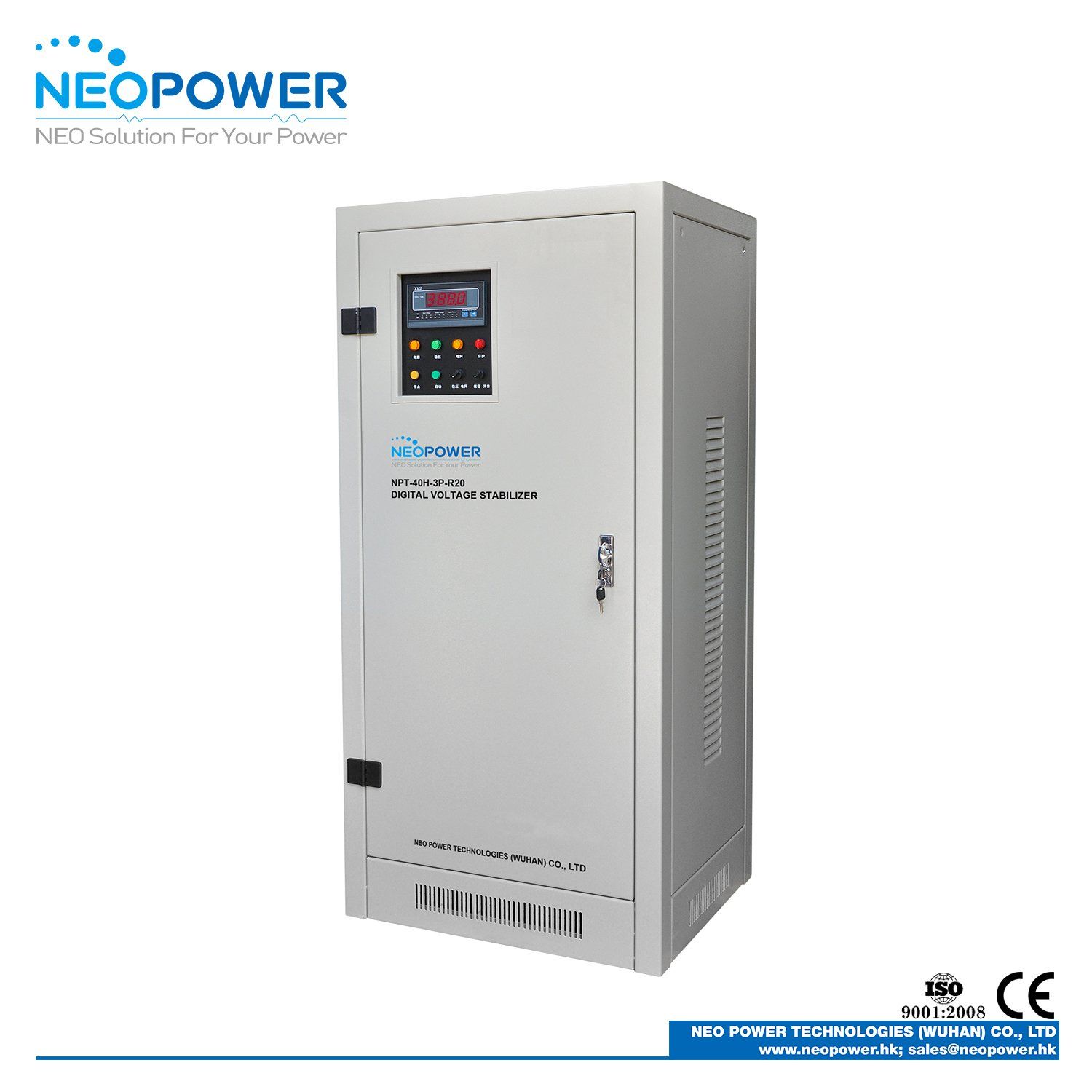

75kVA SCR Regulating Static Voltage Stabilizer
| Price: |
US $ 1805-2135/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Model | NPT-75H-3P-R15 |
| Capacity | 75 kVA |
| Power Rating | 60 kW |
| Input Voltage | 380/400/415 Vac +/-40%, three phase + N + PE |
| Input Frequency | 47 ~ 65 Hz |
| Output Voltage | 380/400/415 Vac +/-2% ~ 3%, three phase + N + PE |
| Output Frequency | input frequency synchronized |
| Output Power Factor | 0.8 |
| Response Time | < 40 ms |
| Regulation Time | 10% variation within 40 ms |
| Surge Rating | 1000% max current for 2 seconds;
300% max current for 1 minute;
200% max current for 2 minutes |
| Harmonic Distortion | Less than 1% |
| Efficiency | 98% |
| Display | LED |
| Communication Port | RS485 |
| Operation Temperature | -15 ~ 45ºC |
| Protection | over/low voltage, overload, short circuit, phase failure |
| Function | manual bypass mode, auto bypass switch, auto restart |
| Option | isolation transformer, output circuit breaker, ATS, lightning surge arrestor,
IP21 ~ IP54, LCD display, RS485 port |
| Protection Level | IP20 |
| Noise | < 60 dB |
| Temperature | -15 ~ 45 ºC |
| Humidity | 95% (non-condensing) |
| Altitude | 1000 m |
| Alarm | buzzer + LED indicators (+optional LCD display) |
| Standards | EMC Directive 2004/108/EC; LV Directive 2006/95/EC |
| Dimension | 750 * 650 * 1700 mm |
| Net Weight | 330 kG |

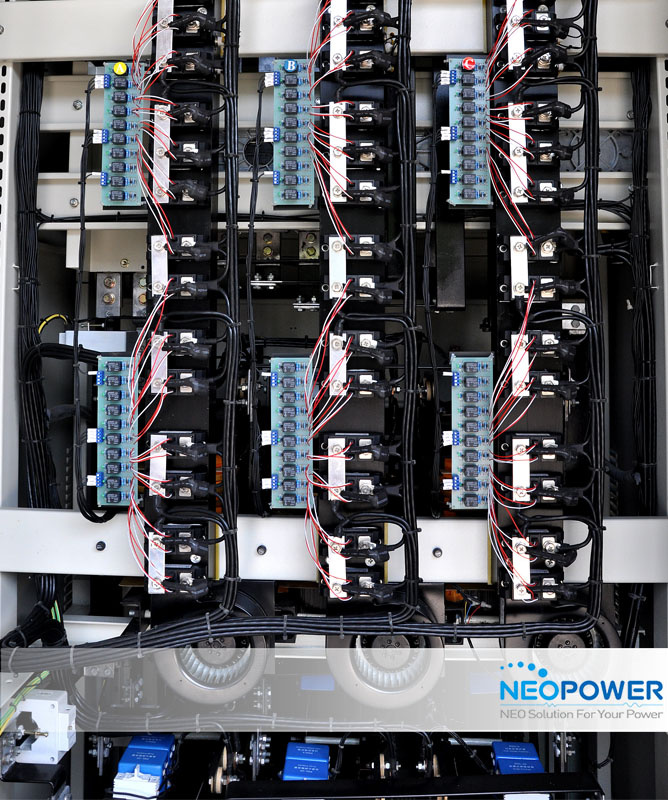

| IGBT MODULE |
 |
| ELECTRICAL COMPONENTS |
 |

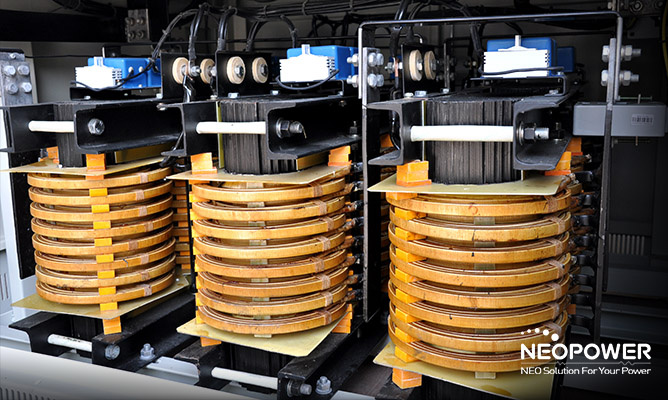

| ISOLATION TRANSFORMER |
 |
| CIRCUIT BREAKERS |
|

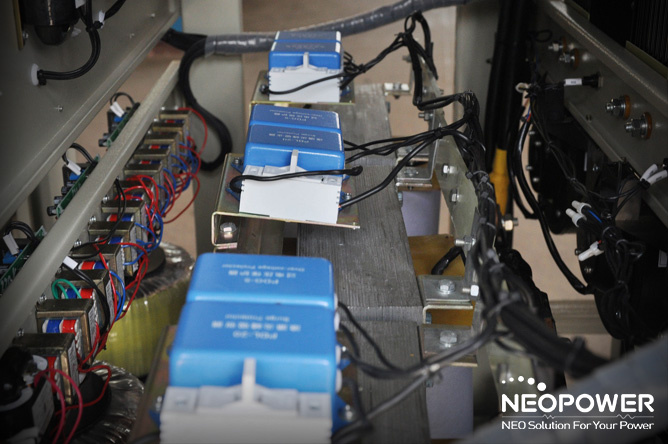

| SURGE SUPPRESSORS |
 |
IGBT Module
High Accuracy
No Noise Operation
Laboratory Footprint
Ultra Fast Regulation
Contactless Technology
Bypass Mode Available
LED/LCD Display Options
| Prod Model: |
NPT-75H-3P-R15 |
| Capacity: |
75kVA |
| Control: |
Static Electronic |
| Input Voltage: |
380V/400V/415V |
| Regulation Range: |
15%/20%/25%/30%/40% |
| Output Precision: |
±2% |
| Regulation Time: |
<40ms |
| Nominal Frequency: |
50Hz |
| Architecture: |
Contact-Less |
| Display: |
LED/LCD |
| Weatherproof: |
IP20-IP54 |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SBW |
| Frequency: |
Industrial Frequency |
| Brand: |
Neopower |
