Prod Model: |
CBB65 |
Operating Temp: |
-40/70/21 |
Color: |
Silver |
Safety Class: |
P0,P1,P2 |
Executing Standards: |
GB/T3667.1-2005, IEC60252-12001 |
Type: |
Polypropylene Capacitor |
Application: |
Air Conditioner |
Package Type: |
Through Hole |
Capacitance: |
50-100uf |
Product Description

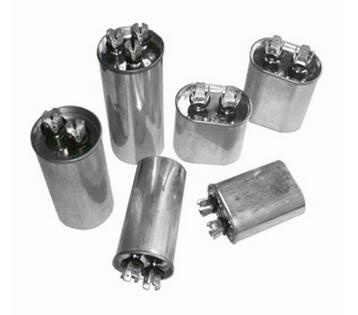

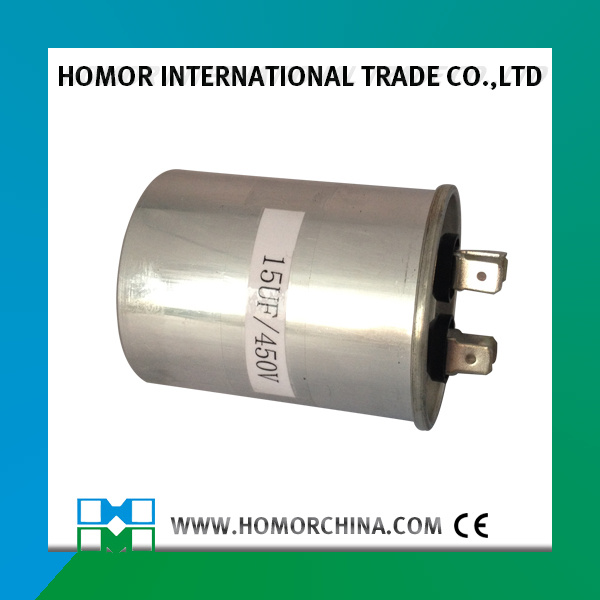

CBB65 Capacitor Introduction: CBB65 type capacitor sealed in metal case, high insulation resistance, excellent natural repair, good stability, suitable for alternating current circuit, long working life, with inner anti-explosive device and safety reliability. This type capacitor is suitable used in the frequency of 50hz - 60hz, voltage from 250v - 500v single phase ac motors, refrigerator, air conditioner, house hold appliances, power supply etc. for starting and running.

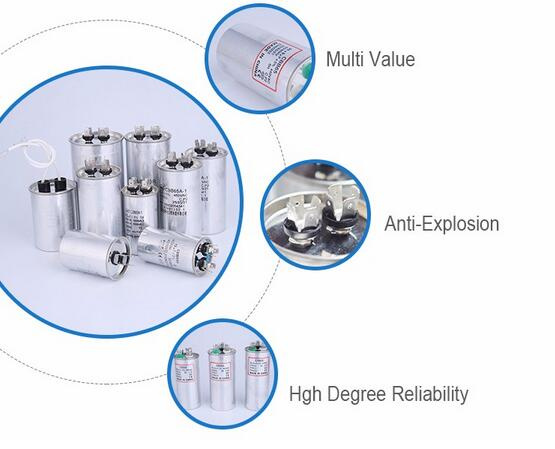

Characteristics:1- Product has low loss, high insulation resistance, good self-healing properties.
2- Stable, resistant to impact current, overload capacity and other characteristics
3- Equipped with an internal explosion devices, use of safe and reliable.
4- widelu used in air conditioners, refrigerators, electrical and lighting and other start-up and operation
Main Technical Data:
1 | Implemented standard | GB/T3667 1-2005 EN60252 |
2 | Ambient Temperature | 40/085/21;40/070/21 |
3 | Rated Voltage | 250~500VAC |
4 | Test Voltage | T-T:2UR t:60s T-C:2000VAC t:60s |
5 | Capacitance Tolerance | ±5% |
6 | Dissipation Factor | Tg δ≤0.002 (50Hz,60 Hz 20ºC) |
7 | Class of safety protection | P2 |
| | |

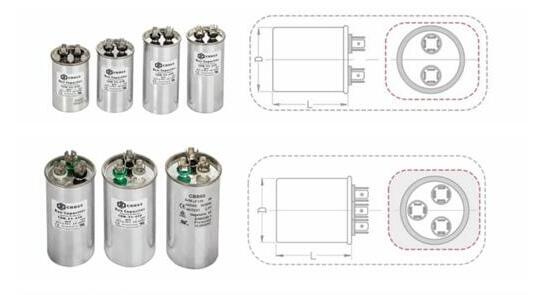

Overall size: Rated capacity | Rated voltage |
200-300VAC | 400-500VAC |
D*L | L1 | D*L | L1 |
5 | 40*55 | 16 | 40*55 | 16 |
10 | 40*55 | 40*65 |
15 | 40*65 | 40*75 |
20 | 40*65 | 50*65 | 18-20 |
25 | 40*75 | 50*75 |
30 | 40*75 | 50*85 |
35 | 45*75 | 18-20 | 50*90 | 18-20 |
40 | 45*75 | 50*100 |
45 | 45*85 | 50*100 |
50 | 50*75 | 50*100 |
60 | 50*85 | 50*125 |
69 | 50*100 | 55*125 |
70 | 50*100 | 55*125 |
80 | 50*100 | 60*125 |
90 | 50*100 | 60*135 |
100 | 50*125 | 65*125 |
Company Profile : Certification:
HOMOR(hemao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and have gained good reputation in the market.
HOMOR specialize in manufacturing high quality power capacitor like BSMJ/BKMJ power capacitor, CBB60 motor running capacitor, CBB65 motor running capacitor, . To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was Located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.
HOMOR is growing fast through year's great effort, . We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

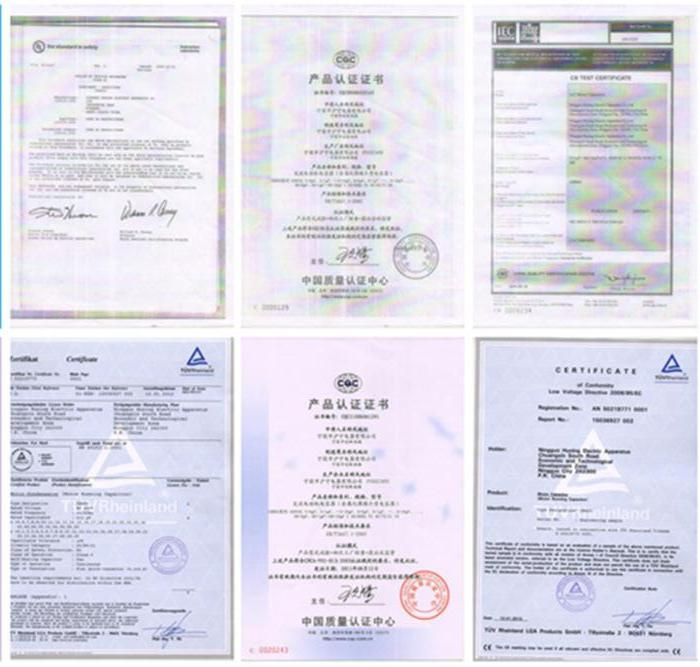

In strict accordance with GB/T12747-2004, IEC60831-1: 1996 Standard, its main products have gained the CE, CQC, CCC, UL certificate. Our capacitor has sales branches and distributors throughout China, and exports to more than ten countries including the United States, Canada, Brazil, Argentina, Russia, Bangladesh, South Korea, Malaysia and Singapore. Our capacitors are well-received by overseas users and has gained both economic and social benefits.
