Copper Core PVC Insulated and Sheathed Control Cable
| Price: |
US $ 0.3-3/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

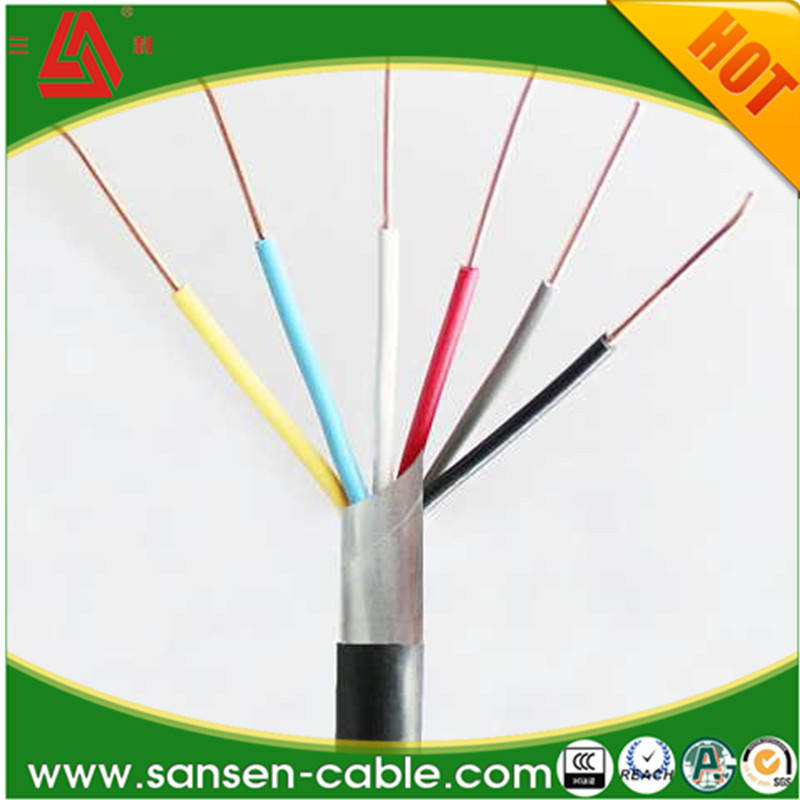

450/750V Copper PVC Insulated PVC Sheathed Armoured Control Cable (KVV22)

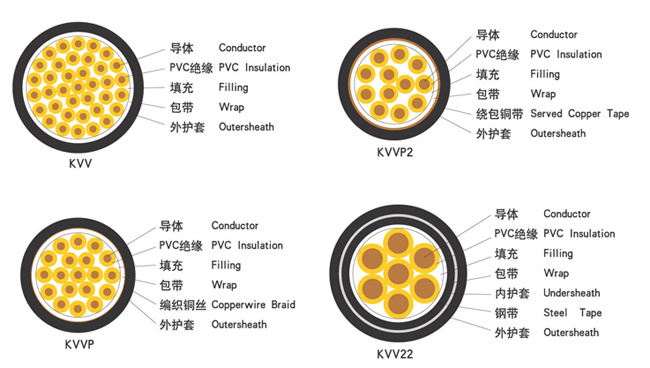

Product Description1, Standard: GB/T9330/IEC60332 or according to customer's requirements 2, Voltage: 450/750V 3, Application: Multicore Control cable applies to controlling, monitoring and protective system with A. C. Rated voltage 450-750V and below. 4, Nominal cross section size of conductor: 0.75 mm2, 1 mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2 5, multicore, Cores available: 4 cores, 5 cores, 6 cores, 7 cores, 8 cores, 10 cores, 14 cores, 16 cores, 19 cores, 24 cores, 30 cores, 37 cores. | KVV22model 450/750V PVC insulated control cable with PVC sheath and steel tape armoring |
Core number*nominal cross section
mm2 |
Rated value of insulator thickness
mm |
Steel tape thickness
(mm) |
Rated value of sheath thikness
(mm) |
Diameter range
(mm) |
Maximum DC resistance under temperature 20ºC
Ω/km |
Strandard |
|
| 4*2.5 | 0.8 | 2*0.2(0.3) | 1.5 | 13.0-17.0 | 7.41 | GB 9330-1988 |
| 4*4 | 0.8 | 2*0.2(0.3) | 1.5 | 14.0-18.5 | 4.61 | GB 9330-1988 |
| 4*6 | 0.8 | 2*0.2(0.3) | 1.5 | 15.5-19.0 | 3.08 | GB 9330-1988 |
| 4*10 | 1 | 2*0.2(0.3) | 1.7 | 19.0-25.0 | 1.83 | GB 9330-1988 |
| 5*2.5 | 0.8 | 2*0.2(0.3) | 1.5 | 14.0-18.0 | 7.41 | GB 9330-1988 |
| 5*4 | 0.8 | 2*0.2(0.3) | 1.5 | 15.0-19.5 | 4.61 | GB 9330-1988 |
| 5*6 | 0.8 | 2*0.2(0.3) | 1.7 | 17.0-21.5 | 3.08 | GB 9330-1988 |
| 5*10 | 1 | 2*0.2(0.3) | 1.7 | 20.5-26.5 | 1.83 | GB 9330-1988 |
| 7*0.75 | 0.6 | 2*0.2(0.3) | 1.5 | 11.5-15.5 | 24.5 | GB 9330-1988 |
| 7*1.0 | 0.6 | 2*0.2(0.3) | 1.5 | 12.0-16.0 | 18.1 | GB 9330-1988 |
| 7*1.5 | 0.7 | 2*0.2(0.3) | 1.5 | 13.5-17.5 | 12.1 | GB 9330-1988 |
| 7*2.5 | 0.8 | 2*0.2(0.3) | 1.5 | 15.0-19.0 | 7.41 | GB 9330-1988 |
| 7*4 | 0.8 | 2*0.2(0.3) | 1.5 | 16.5-20.5 | 4.61 | GB 9330-1988 |
| 7*6 | 0.8 | 2*0.2(0.3) | 1.7 | 18.0-22.5 | 3.08 | GB 9330-1988 |
| 7*10 | 1 | 2*0.2(0.3) | 1.7 | 22.5-28.5 | 1.83 | GB 9330-1988 |
| 8*0.75 | 0.6 | 2*0.2(0.3) | 1.5 | 12.5-16.5 | 24.5 | GB 9330-1988 |
| 8*1.0 | 0.6 | 2*0.2(0.3) | 1.5 | 13.0-17.0 | 18.1 | GB 9330-1988 |
| 8*1.5 | 0.7 | 2*0.2(0.3) | 1.5 | 14.5-18.5 | 12.1 | GB 9330-1988 |
| 8*2.5 | 0.8 | 2*0.2(0.3) | 1.5 | 16.5-21.0 | 7.41 | GB 9330-1988 |
| 8*4 | 0.8 | 2*0.2(0.3) | 1.7 | 18.5-23.0 | 4.61 | GB 9330-1988 |
| 8*6 | 0.8 | 2*0.2(0.3) | 1.7 | 20.0-24.5 | 3.08 | GB 9330-1988 |
| 8*10 | 1 | 2*0.2(0.3) | 1.7 | 25.0-31.5 | 1.83 | GB 9330-1988 |
| 10*0.75 | 0.6 | 2*0.2(0.3) | 1.5 | 13.5-18.0 | 24.5 | GB 9330-1988 |
| 10*1.0 | 0.6 | 2*0.2(0.3) | 1.5 | 14.5-18.5 | 18.1 | GB 9330-1988 |
| 10*1.5 | 0.7 | 2*0.2(0.3) | 1.5 | 16.0-20.5 | 12.1 | GB 9330-1988 |
| 10*2.5 | 0.8 | 2*0.2(0.3) | 1.7 | 18.5-23.0 | 7.41 | GB 9330-1988 |
| 10*4 | 0.8 | 2*0.2(0.3) | 1.7 | 20.5-25.0 | 4.61 | GB 9330-1988 |
| 10*6 | 0.8 | 2*0.2(0.3) | 1.7 | 22.5-27.0 | 3.08 | GB 9330-1988 |
| 10*10 | 1 | 2*0.2(0.3) | 2 | 28.5-35.0 | 1.83 | GB 9330-1988 |
| 12*0.75 | 0.6 | 2*0.2(0.3) | 1.5 | 14.0-18.0 | 24.5 | GB 9330-1988 |
| 12*1.0 | 0.6 | 2*0.2(0.3) | 1.5 | 14.5-19.0 | 18.1 | GB 9330-1988 |
| 12*1.5 | 0.7 | 2*0.2(0.3) | 1.5 | 16.5-20.5 | 12.1 | GB 9330-1988 |
| 12*2.5 | 0.8 | 2*0.2(0.3) | 1.7 | 19.0-23.5 | 7.41 | GB 9330-1988 |
| 12*4 | 0.8 | 2*0.2(0.3) | 1.7 | 21.0-25.5 | 4.61 | GB 9330-1988 |
| 12*6 | 0.8 | 2*0.2(0.3) | 1.7 | 23.0-28.5 | 3.08 | GB 9330-1988 |
| 14*0.75 | 0.6 | 2*0.2(0.3) | 1.5 | 14.5-18.5 | 24.5 | GB 9330-1988 |
| 14*1.0 | 0.6 | 2*0.2(0.3) | 1.5 | 15.0-19.5 | 18.1 | GB 9330-1988 |
| 14*1.5 | 0.7 | 2*0.2(0.3) | 1.7 | 17.5-22.0 | 12.1 | GB 9330-1988 |
| 14*2.5 | 0.8 | 2*0.2(0.3) | 1.7 | 20.0-24.5 | 7.41 | GB 9330-1988 |
| 14*4 | 0.8 | 2*0.2(0.3) | 1.7 | 22.0-26.0 | 4.61 | GB 9330-1988 |
| 14*6 | 0.8 | 2*0.2(0.3) | 1.7 | 24.0-29.0 | 3.08 | GB 9330-1988 |
| 16*0.75 | 0.6 | 2*0.2(0.3) | 1.5 | 15.0-19.5 | 24.5 | GB 9330-1988 |
| 16*1.0 | 0.6 | 2*0.2(0.3) | 1.5 | 16.0-20.0 | 18.1 | GB 9330-1988 |
| 16*1.5 | 0.7 | 2*0.2(0.3) | 1.7 | 18.0-22.5 | 12.1 | GB 9330-1988 |
| 16*2.5 | 0.8 | 2*0.2(0.3) | 1.7 | 21.0-25.5 | 7.41 | GB 9330-1988 |
| 19*0.75 | 0.6 | 2*0.2(0.3) | 1.5 | 15.5-20.0 | 24.5 | GB 9330-1988 |
| 19*1.0 | 0.6 | 2*0.2(0.3) | 1.7 | 17.0-21.5 | 18.1 | GB 9330-1988 |
| 19*1.5 | 0.7 | 2*0.2(0.3) | 1.7 | 19.0-23.5 | 12.1 | GB 9330-1988 |
| 19*2.5 | 0.8 | 2*0.2(0.3) | 1.7 | 22.0-26.5 | 7.41 | GB 9330-1988 |
| 24*0.75 | 0.6 | 2*0.2(0.3) | 1.7 | 18.0-22.5 | 24.5 | GB 9330-1988 |
| 24*1.0 | 0.6 | 2*0.2(0.3) | 1.7 | 19.0-23.5 | 18.1 | GB 9330-1988 |
| 24*1.5 | 0.7 | 2*0.2(0.3) | 1.7 | 21.5-26.5 | 12.1 | GB 9330-1988 |
| 24*2.5 | 0.8 | 2*0.2(0.3) | 1.7 | 25.0-30.0 | 7.41 | GB 9330-1988 |
| 27*0.75 | 0.6 | 2*0.2(0.3) | 1.7 | 18.5-23.0 | 24.5 | GB 9330-1988 |
| 27*1.0 | 0.6 | 2*0.2(0.3) | 1.7 | 19.5-24.0 | 18.1 | GB 9330-1988 |
| 27*1.5 | 0.7 | 2*0.2(0.3) | 1.7 | 22.5-27.0 | 12.1 | GB 9330-1988 |
| 27*2.5 | 0.8 | 2*0.2(0.3) | 1.7 | 25.5-30.5 | 7.41 | GB 9330-1988 |
| 30*0.75 | 0.6 | 2*0.2(0.3) | 1.7 | 19.0-23.5 | 24.5 | GB 9330-1988 |
| 30*1.0 | 0.6 | 2*0.2(0.3) | 1.7 | 20.0-24.5 | 18.1 | GB 9330-1988 |
| 30*1.5 | 0.7 | 2*0.2(0.3) | 1.7 | 23.0-27.5 | 12.1 | GB 9330-1988 |
| 30*2.5 | 0.8 | 2*0.2(0.3) | 1.7 | 26.0-31.5 | 7.41 | GB 9330-1988 |
| 37*0.75 | 0.6 | 2*0.2(0.3) | 1.7 | 20.5-25.0 | 24.5 | GB 9330-1988 |
| 37*1.0 | 0.6 | 2*0.2(0.3) | 1.7 | 21.5-26.0 | 18.1 | GB 9330-1988 |
| 37*1.5 | 0.7 | 2*0.2(0.3) | 1.7 | 24.5-29.0 | 12.1 | GB 9330-1988 |
| 37*2.5 | 0.8 | 2*0.2(0.3) | 2 | 30.0-35.0 | 7.41 | GB 9330-1988 |
| 44*0.75 | 0.6 | 2*0.2(0.3) | 1.7 | 22.5-27.0 | 24.5 | GB 9330-1988 |
| 44*1.0 | 0.6 | 2*0.2(0.3) | 1.7 | 23.5-28.5 | 18.1 | GB 9330-1988 |
| 44*1.5 | 0.7 | 2*0.2(0.3) | 2 | 27.5-33.0 | 12.1 | GB 9330-1988 |
| 44*2.5 | 0.8 | 2*0.2(0.3) | 2 | 33.5-39.0 | 7.41 | GB 9330-1988 |
| 48*0.75 | 0.6 | 2*0.2(0.3) | 1.7 | 22.5-27.5 | 24.5 | GB 9330-1988 |
| 48*1.0 | 0.6 | 2*0.2(0.3) | 1.7 | 24.0-29.0 | 18.1 | GB 9330-1988 |
| 48*1.5 | 0.7 | 2*0.2(0.3) | 2 | 29.0-34.0 | 12.1 | GB 9330-1988 |
| 48*2.5 | 0.8 | 2*0.2(0.3) | 2.2 | 34.0-39.5 | 7.41 | GB 9330-1988 |
| 52*0.75 | 0.6 | 2*0.2(0.3) | 1.7 | 23.0-28.0 | 24.5 | GB 9330-1988 |
| 52*1.0 | 0.6 | 2*0.2(0.3) | 1.7 | 24.5-29.5 | 18.1 | GB 9330-1988 |
| 52*1.5 | 0.7 | 2*0.2(0.3) | 2 | 30.0-35.0 | 12.1 | GB 9330-1988 |
| 52*2.5 | 0.8 | 2*0.2(0.3) | 2.2 | 35.0-40.5 | 7.41 | GB 9330-1988 |
| 61*0.75 | 0.6 | 2*0.2(0.3) | 1.7 | 24.5-29.5 | 24.5 | GB 9330-1988 |
| 61*1.0 | 0.6 | 2*0.2(0.3) | 1.7 | 26.0-31.0 | 18.1 | GB 9330-1988 |
| 61*1.5 | 0.7 | 2*0.2(0.3) | 2 | 31.5-36.5 | 12.1 | GB 9330-1988 |
| 61*2.5 | 0.8 | 2*0.2(0.3) | 2.2 | 37.0-42.5 | 7.41 | GB 9330-1988 |
Product Standard and Certificates: (1). As a leading manufacturer of Wire & Cable, our products have passed through strict inspection by Bureau of Quality Supervision to ensure the production of eligible product. (2). By controlling the quality of products and maintaining a safe working environment, we have passed the China Compulsory Certification and gained many other certificates, such as CE, SGS and RoHS. (3). Our products cover all range of cables from house wiring to power cable, all of which have obtained widely agreement from our customers across the world. (4). Our export trading area covers Asia, Middle East, South America, Africa and Europe.
FAQ:Q1. What kind of products can your company supply? A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect. Q2. What's your MOQ?A: The MOQ of long meter cable is 50 km, or we can negociate. Q3. What's your delivery time? A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order. Q4. What are your payment terms?A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you. Q5. What's your trade term ? A: We can accept FOB, CIF, EXW term. Q6. What's your conventional packing ? A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand. Q7. Can your factory customize cables based on clients' samples or data sheet ? A: Yes, we can. Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
| Prod Model: |
KVV22 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Sansen |
We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.
Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.
At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.
We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
