Copper Foil Winding Power Transformer
| Price: |
US $ 0.9-1/Piece |
| Min Order: |
2000/Piece |
| Pay Type: |
L/C,T/T |
Features:1. Operating Frequency: 50~200KHz2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change. Specifications (Unit: mm):

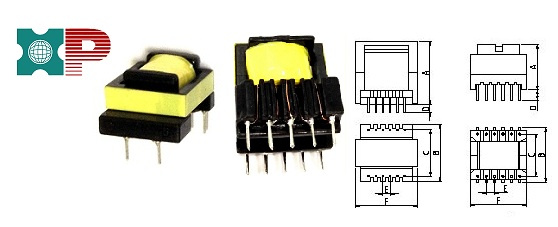

| PART NO. | PINS | Dimension(mm) |
| A | B | C+/-0.5 | D+/-0.5 | E+/-0.5 | F | TYPE |
| XP- EE-8.3 | 6 | 8 | 8 | 6 | 4 | 2.5 | 8.3 | V |
| XP- EE-10 | 8 | 11.5 | 10.2 | 8 | 4 | 2.5 | 10.2 | V |
| XP- EE-13 | 10 | 12 | 12.5 | 8.5 | 4 | 2.5 | 13 | V |
| XP- EE16-1 | 6 | 14.8 | 13.3 | 9 | 4 | 3 | 16 | V |
| XP- EE-16-2 | 10 | 15.4 | 13 | 10.5 | 4 | 3.2 | 17.1 | V |
| XP- EE-16 | 10 | 28.5 | 16 | 12.3 | 4 | 4.3 | 21.9 | V |
| XP- EE-19-1 | 8 | 17.6 | 16 | 10 | 4 | 5 | 19 | V |
| XP- EE-19-2 | 10 | 17.2 | 16.2 | 13 | 4 | 3.9 | 20 | V |
| XP- EEL-19 | 10 | 31.5 | 16 | 10.5 | 4 | 4 | 21.1 | V |
| XP-EEL-19-1 | 10 | 15.6 | 30 | 24.1 | 4 | 3.5 | 21 | H |
| XP- EE-25-1 | 6 | 20 | 18.2 | 12.5 | 4 | 6.3 | 25.2 | V |
| XP-EE-25-2 | 8 | 21.7 | 17.5 | 12.6 | 4 | 5 | 25.2 | H |
| XP-EE-25-3 | 10 | 22.2 | 25 | 15.4 | 4 | 5 | 26.1 | H |
| XP-EEL-25 | 8 | 35.3 | 17.5 | 12.5 | 4 | 5 | 25.2 | V |
| XP-EE-30 | 10 | 21 | 29.2 | 25.2 | 4 | 5 | 30 | H |
| XP-EE-40 | 14 | 27.6 | 30.5 | 25.8 | 4 | 5 | 40 | H |
| XP-EE-42/15-1 | 12 | 33.8 | 44 | 35.5 | 4 | 5 | 42 | H |
| XP-EE-42/15-2 | 16 | 41.3 | 48 | 37.7 | 4 | 5 | 42 | H |
| XP-EE-42/15-3 | 18 | 48.7 | 32 | 27.5 | 4 | 5 | 45.1 | V |
| XP-EE-42/20-1 | 12 | 45 | 39.8 | 32.5 | 4 | 5 | 42 | V |
| XP-EE-42/20-2 | 16 | 44.2 | 50 | 37.8 | 4 | 5 | 42.2 | H |
| XP-EE-42/20-3 | 18 | 44.1 | 37 | 27.3 | 4 | 5 | 45.3 | V |
| XP-EE-55 | 20 | 50 | 50 | 45.5 | 4 | 5 | 55 | H |
| XP-EE-65 | 16 | 55.2 | 51.8 | 45 | 4 | 5 | 65 | H |
| H :HORIZONTAL V:VERTICAL |
Note: The above are common skeleton styles; we accept customer requirements ODM or OEM. Welcome your design drawings or samples. Electrical performance:1. Operating frequency: 20kHz-500KHz2. Output power: 30 to 80 W3. Operating temperature:-40 ºCto +125 ºC4. Storage temperature:-25 ºCto +85 ºC Applications:Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments. Kindly Reminder:1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.5. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.6. Contact us now for more details: Business hotlines: + 86-551-63748663 63745886
| Prod Model: |
XP-EE65-004R |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
XP |
XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.
The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.
XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
