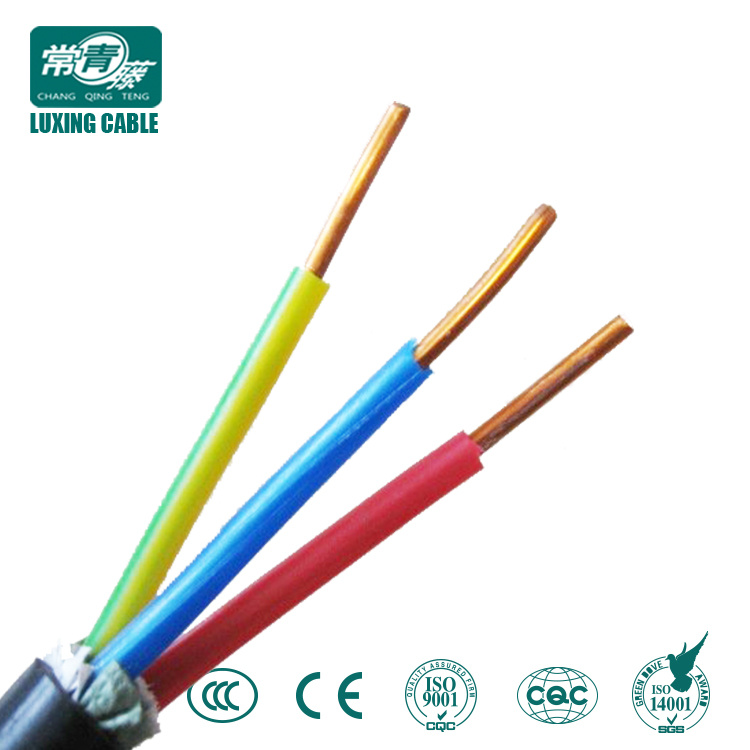

Copper Power Cable 3X1.5 Sq mm

Name: Copper Power Cable 3X1.5 Sq mm
Brand: all-electronics-online.com
SKU: 732560312
Availability: InStock
Rating: 4.9 (98 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Copper power cable 3x1.5 sq mm
Product Name:	Copper Power Cable 3X1.5 Sq mm
Rated Voltage:	450/750 V
Conductor:	Copper
Insulation:	XLPE / PVC
Sheath:	PVC
Core Number:	1 2 3 4 5
Color Color:	Red, Yellow, Blue, Green or as Your Requirement
Origine:	Shandong, China
Packaging:	100 Meter One Roll
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	H05VV- F H03VV- F
Brand:	Chan Qing Teng

Product Description

Iterm Name : Copper Power Cable 3x1.5 sq mm

1.Material: Annealed copper wires, bunched(class 5); Solid copper wire(class1)

2. Type:
60227 IEC 01(BV), 60227IEC 02(RV), 60227IEC 05(BV), 60227IEC 06(RV), 60227IEC 07(BV-90), 60227IEC 08(RV-90), 60227 IEC 10(BVV), 60227
IEC 41(RTPVR),60227 IEC 43(SVR), 60227IEC52(RVV), 60227 IEC 53(RVV), 60227 IEC 56(RVV-90), 60227 IEC 57(RVV-90)

3.Rated voltage: 300/500v and 450/750v

4.Wire identification: Red, yellow, blue, white, black

5.No. Of cores :single core, 2 cores,3 cores,4 cores, 5 cores

6.Standard:GB/T 5023.3-2008/IEC 60227-3:1997;GB/T 5023.5-2008/IEC 60227-5:2003

7.Insulation: PVC

8.Sheath:PVC

9.Application: Fixed wiring, house wire, building etc.

10.Nominal cross section area: 0.25, 0.5, 0.75, 1.0, 1.5,2.0, 2.5, 3.0, 4.0, 5.0,5.5, 6.0, 7.0, 8.0, 10.0, 16,25,35, 50,70,95, 120,150, 185,240 etc.

11.Production parameter:

Conductor			Insulation thickness	Overall diameter(approx.)	DC resistance at 20°C	Weight(approx.)	Rated Voltage
Norminal area	Structure	Conductor diameter	Insulation thickness	Overall diameter(approx.)	DC resistance at 20°C	Weight(approx.)	Rated Voltage
mm²	No.& diameter of single wiremm	mm	mm	mm	Ohm/km	kg/km	V
0.5	7*0.30	0.9	0.6	2.1	36	10.3	300/500
0.75	7*0.37	1.11	0.6	2.3	24.5	12.9	300/500
1	7*0.42	1.26	0.6	2.5	18.1	16.5	300/500
0.5	7*0.30	0.9	0.7	2.6	36	11.4	450/750
0.75	7*0.37	1.11	0.7	2.7	24.5	14.2	450/750
1	7*0.42	1.26	0.7	2.9	18.1	17.8	450/750
1.5	7*0.52	1.56	0.7	3.2	12.1	23.3	450/750
2	7*0.60	1.8	0.8	3.6	9.42	29.8	450/750
2.5	7*0.67	2.01	0.8	3.8	7.41	35.2	450/750
3	7*0.75	2.25	0.8	4.1	6.1	42.1	450/750
3.5	7*0.80	2.4	0.8	4.2	5.3	46.7	450/750
4	7*0.85	2.55	0.8	4.4	4.61	51.5	450/750
5.5	7*1.00	3	0.8	4.8	3.4	67.6	450/750
6	7*1.04	3.12	0.8	5	3.08	72.3	450/750
7	7*1.12	3.36	1	5.6	2.61	87.2	450/750
8	7*1.20	3.6	1	5.8	2.36	97.9	450/750
10	7*1.35	4.05	1	6.3	1.83	119.8	450/750
Besides above list, we can also provide other size depend on customer's requirement.

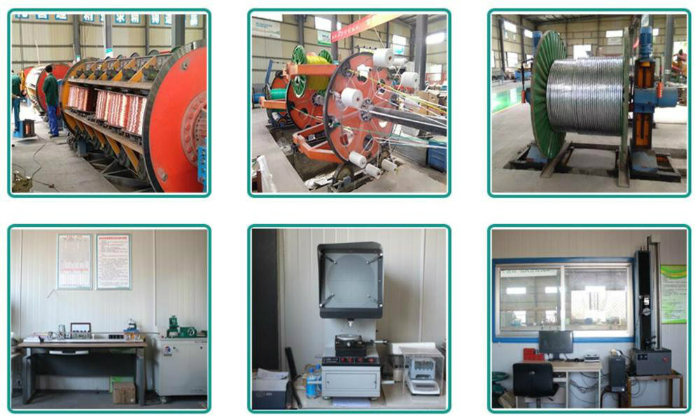

Luxing Factory : our production base

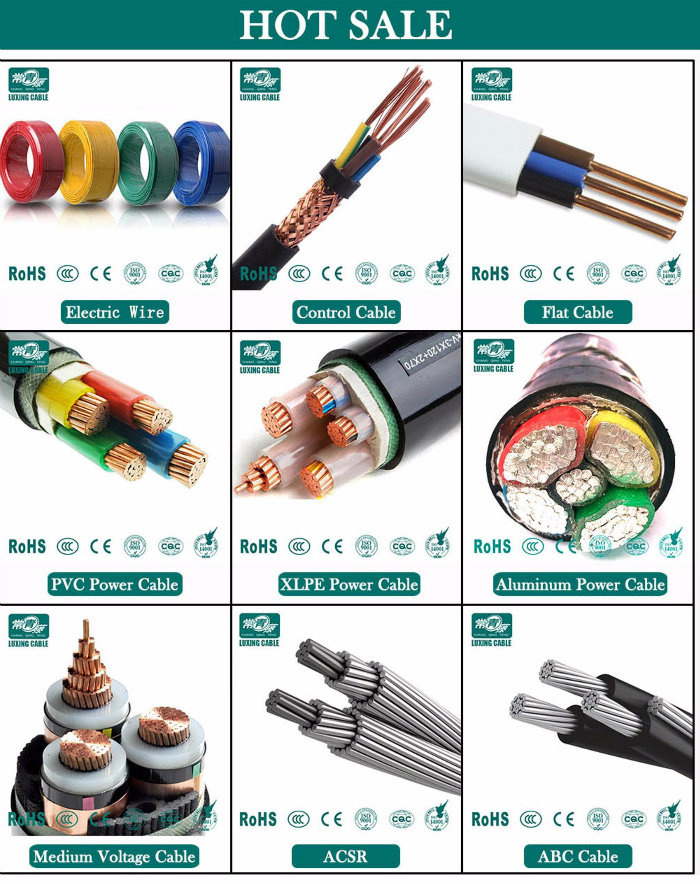

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

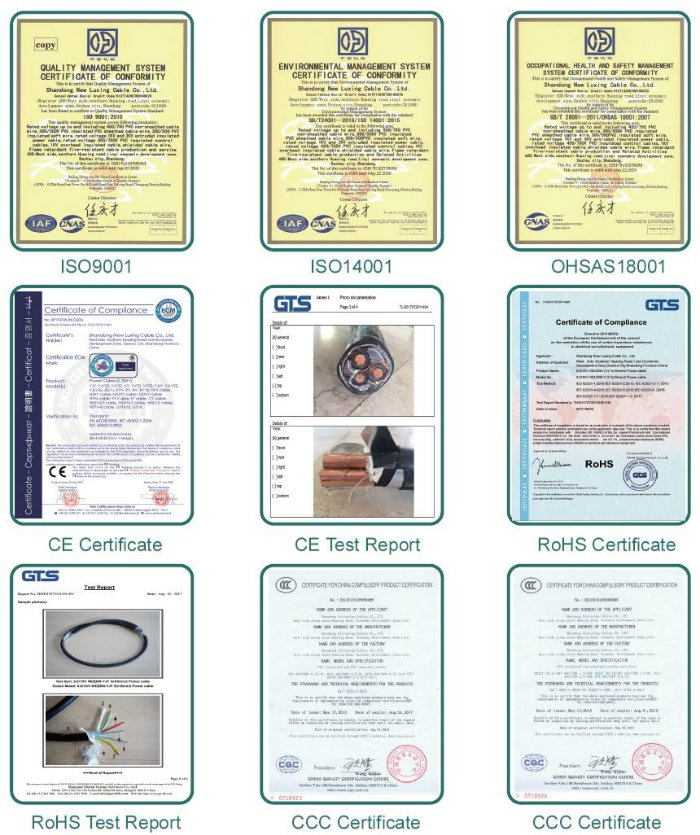

Certificates

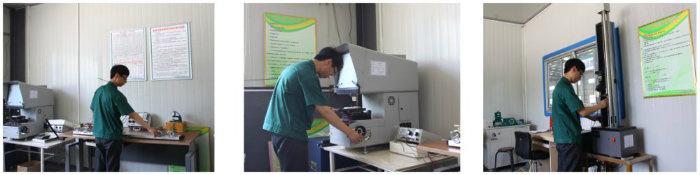

Strict Quality Test

Packaging & Shipping

Why Choose US

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact Information

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
