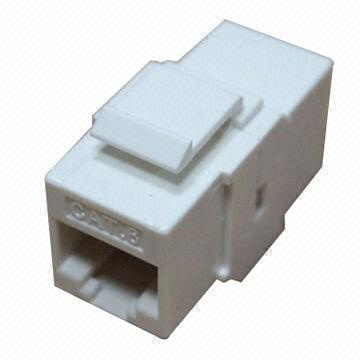

Coupler Style 180 Degree UTP CAT6 Keystone Jack,

Shielded/Unshielded Keystone Jack (CAT7/CAT6A/CAT6/CAT5E/CAT3)
1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are SOLITONE or OEM;
3. Payment: We accept T/T and L/C and Western Union;
4. Packing:

Inner packing	1pcs/plastic bag
Outer packing	Carton box, pull box

3) Other packing available according to client's request.
5. Any question, Please contact us in first time. We'll reply as soon as possible.

Description:
1. This series keystone jacks work together with high speed cables cords and panels to provide performance beyond proposed category 6 standards
2. A new feature of this series jack is a universal colored wiring label that eliminates the need for separate codes for T568A/B wiring scheme

Features:
1. Available in Cat6, T568A/B wiring schemes, meet or exceed TIA/EIA Cat6 requirements
2. Fits for 22/23/24AWG cables
3. Housing: High temperature thermoplastic
4. Compact jack design, 8 positions and 8 conductors
5. Contact: Phosphor bronze, phosphor bronze with 6 to 50μ "gold plate
6. Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
7. Easy to be terminated, low attenuation loss and high return loss
8. High reliability and superior performance
9. Material of the FCC connectors 8-pin of the RJ45 jack: Phosphor bronze with golden plated 3, 6, 15, 30, 50U at optional
10. Inserting duration: 750 times
11. Material of the IDC clips: Tinned phosphor bronze pins
12. Punching duration: 250 times
13. Punching tools: Too less punching type assembles the cables with the punching cover
