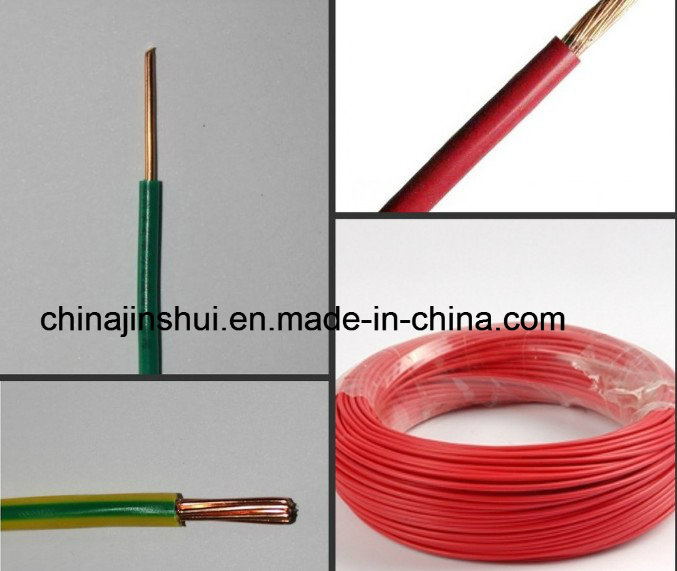

Cu PVC Insulated Royal Cable
| Price: |
US $ 0.2-0.3/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
300/500v PVC insulated wire
(BVR)
2. Application
PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
3. Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.

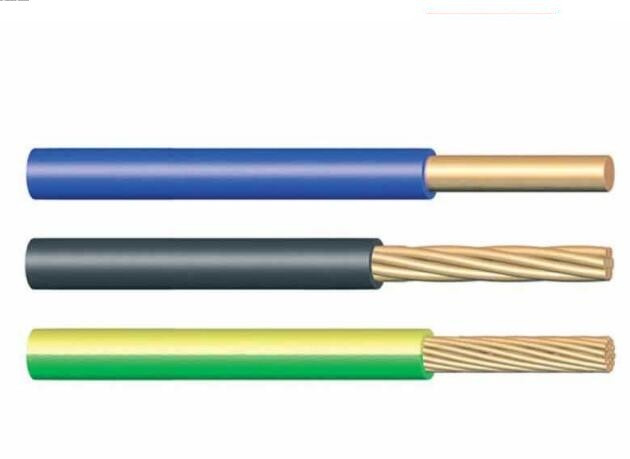

4. Brief construction
1) Conductor: Copper or aluminium, Solid
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according to the requirements of customers.
5. Service performance
1) Rated voltage: 450/750V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
Type | Name | Laying place and requirement | Long term working Temperature 0C |
60227IEC01 05 BV BLV | Copper conductor PVC insulated wires Aluminum conductor PVC insulated wires | Fixed laid indoors Conduit etc. | 70 |
60227IEC07 (BV-90) | Heat resistant copper conductor PVC insulated wire at 90 0C | Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. | 90 |
BVR | Copper conductor PVC insulated flexible wires | Be for laying permanent place where flexible required. | 70 |
60227IEC10 (BVV) BVV | Copper conductor PVC insulated PVC sheathed round wires | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 70 |
BLVV | Aluminum conductor PVC insulated PVC sheathed round wires |
BVVB | Copper conductor PVC insulated PVC sheathed flat wires |
BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires |
60227IEC02(RV) 60227IEC06(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 70 |
60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire |
RVS | Copper conductor PVC insulated flexible twisting connector wire |
60227IEC52(RVV) 60227IEC53 | Copper conductor PVC insulated PVC sheathed round flexible connector wire |
60227IEC08 (RV-90) | Cu conductor heat resistant PVC insulated flexible connector wire at 900C | Mainly used at the places where heat resistance is required | 90 |
| Prod Model: |
electrical wire |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Construction |
| Range Of Application: |
House Wire |
| Brand: |
Jinshui |
HENAN JINSHUI WIRE&CABLE Co., Ltd., subordinated to the Jinshui Cable Group Co., Ltd., is an international trading company professional in the research and development, manufacturing and sales of wires and cables.
Jinshui Cable Group, founded in 1983 and formerly known as Zhengzhou 2ND Cable Plant, is the largest cables and wire and electrical products R&D and production base, sales and export base, and CNC logistics distribution base in central China, as well as Top-10 of China in comprehensive cables and wire strength.
The company covers an area of 360000 square meters and the fixed assets of RMB 680 million; Having main production equipment of more than 300 sets (units), measuring and testing equipment of more than 50 sets (units), and reaching the annual production capacity of RMB 5 billion. The company has the most advanced production equipment and a high-quality production management team. Its "Jinshui" brand wire, cable and electrical products are widely used all over the world in real estate, transportation, energy, and power transmission and other fields, and well received by customers.
The company has a full range of products, including various high, medium and low voltage cable wire products from 300V to 220kV and all kinds of electrical products, where the annual production capacity of cables and wire can reach up to 800, 000 km. The company has more than 500 varieties of products in more than 5, 000 kinds of specifications, including high conductive green cable, XLPE insulated cables and wire, PVC insulated cables and wire, rubber insulated cables and wire, aluminum alloy cable, special cable, flame retardant & fireproof cable, mineral insulated cable, PVC cable material, bare wire, oxygen-free copper rod, electrician round aluminum rod and aluminum alloy rod, as well as electrician and electrical supporting products. Those products implement IEC, DIN, BS, GB, ASTM, JIS, and CSA and other standards.
The company took the lead in the same industry to pass the ISO9001 international quality system certification, ISO14001 environmental management system certification and ISO18001 occupational health and safety management system certification, and holds the People's Republic of China import and export qualification certificate and railway material supplier access certificate. The company is a recommended supplier for the national urban and rural power grid transformation, recommended supplier for government procurement, supplier for military material procurement. Those products have passed or obtained China Compulsory Certification (CCC certification), production licenses, mining products safety certification and fire-retardant products permit for flame retardant products and so likes. At present the company's products have been exported to more than 30 countries and regions including Singapore, Malaysia, Bangladesh, Pakistan, Nigeria, Sudan, Somalia, Britain, Australia, the United States and Italy.
Build a century-old enterprise of China, and strive for a world-class brand. The company will continue adhering to the service principle of "quality first, customer oriented" to carry forward the enterprise spirit of pioneering and keeping improving and innovating to provide better products and better services for users and the community!
