50~300A ID10/16/24/36mm

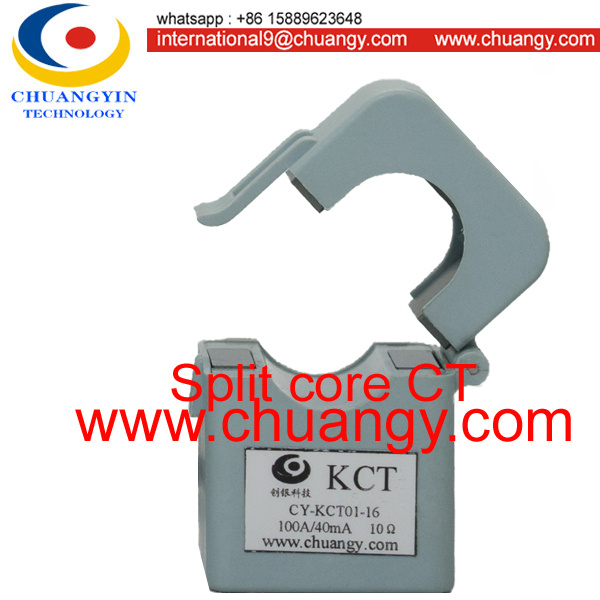

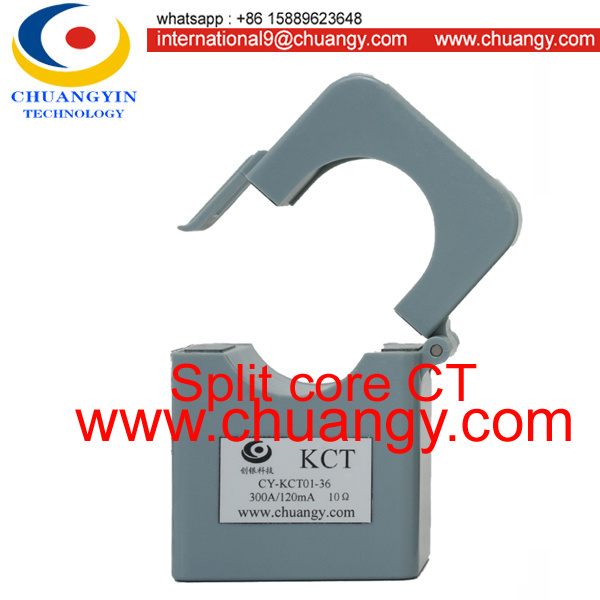

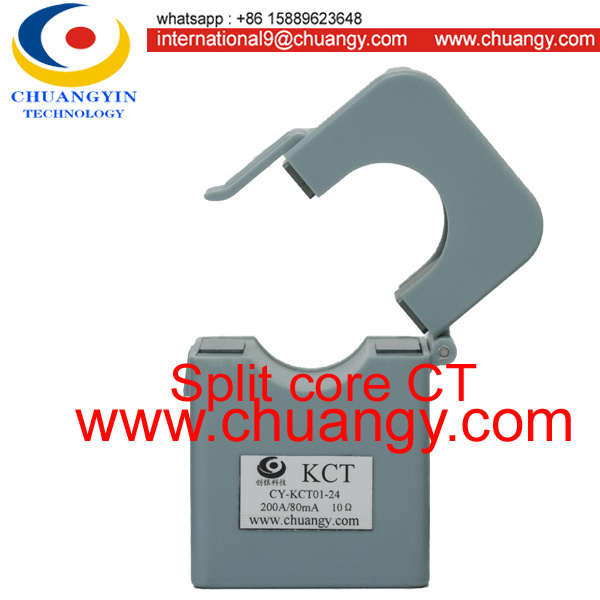

Split Core Current Transformers CHUANGYIN TYPE: CY-KCT01-16

Feature:

. low consumption with magnetic

. Delicate, exquisite and weightless, conveniently to install

. Easily install . no need to disconnect primary busbar ,measuring with power on, safety and convenient

Typical Application:

. Multi function electricity energy meter and field calibrator , instruments

. Used in the measurement and protection in power system, while the mobility is strong or space is narrow or power system is uninterrupted

Dimension:

Size Model Number	A	B	C	D	E	Ø
CY-KCT01-10	40.5	28.6	22	26	14.5	10
CY-KCT01-16	44	31	29	31	19	16
CY-KCT01-24	75	50	45	35	19.5	24
CY-KCT01-36	91.6	62	57.4	40.9	22.8	36

Electrical Parameter:

Model Number Date	CY-KCT01-10	CY-KCT01-16	CY-KCT01-24	CY-KCT01-36
Rated Transformation Ratio	50A/25mA(50/60Hz	100A/40Ma(50/60Hz	200A/80Ma(50/60Hz)	300A/120mA(50/60Hz)
Current Range	1-50A(RL=10	1-100A(RL=10Ω	1-200A(RL=10Ω)	1-300A(RL=10Ω
Max Withstand Current	60A	120A		360A
Accuracy Class	0.2 0.5 1
Phase Displacement	1-=1.5+1º	+1.0±1º		+0.5 ±0.5º
Linearity error	-1±1%	-1±1%		-1±1%
Turn Ratio	2500:1	2500:1		2500:1
Protective Class	7.5VO-P	7.5V0-P		7.5VO-P
Insulation Class	CAT III
Working Environment	Temperature :-30-70ºC Humidity 85%,Indoor
Storage Condition	Temperature : -40-90ºC Humidity 85%

Usage Instruction:

1.Open CT, encirde busbar 2.Close CT

Note:
Packing List:
1) 64PCS/CARTONS
2) 0.01643CBM: 365mm* 250mm* 180mm
3) About Gross Weight: 8.384kg/Cartons

All Packing List:
1) CY-KCT01-10    64pcs/Cartons    0.131kg/pcs     0.1643CBM/Cartons=365*250*180mm
2) CY-KCT01-16    32pcs/Cartons    0.128kg/pcs     0.0175CBM/Cartons=350*200*250mm
3) CY-KCT01-24    30pcs/Cartons    0.265kg/pcs     0.0295CBM/Cartons=410*300*240mm
4) CY-KCT01-36    32pcs/Cartons    0.4kg/pcs         0.0447CBM/Cartons=460*360*270mm

Note:

Please browse our website and download product catalogue for detailed information.
