Cy-Kct01A Split Core Current Transformer Power Supply

Name: Cy-Kct01A Split Core Current Transformer Power Supply
Brand: all-electronics-online.com
SKU: 678873811
Availability: InStock
Rating: 4.8 (103 reviews)

Price:	US $ 4-6/Piece
Trade Terms:	FOB,CFR
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

We're manufacturer.

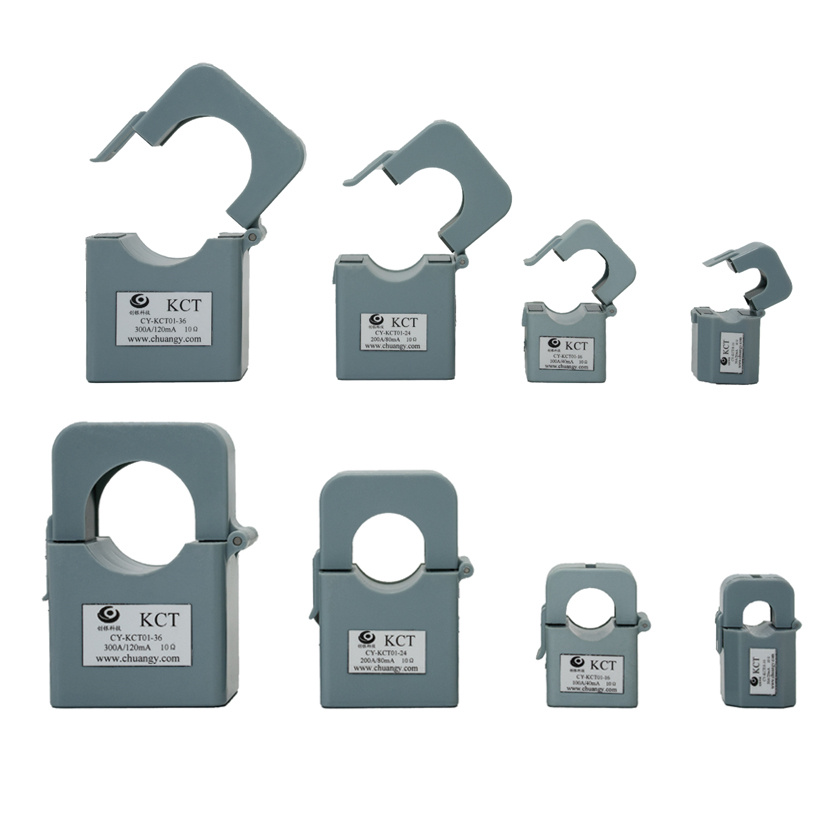

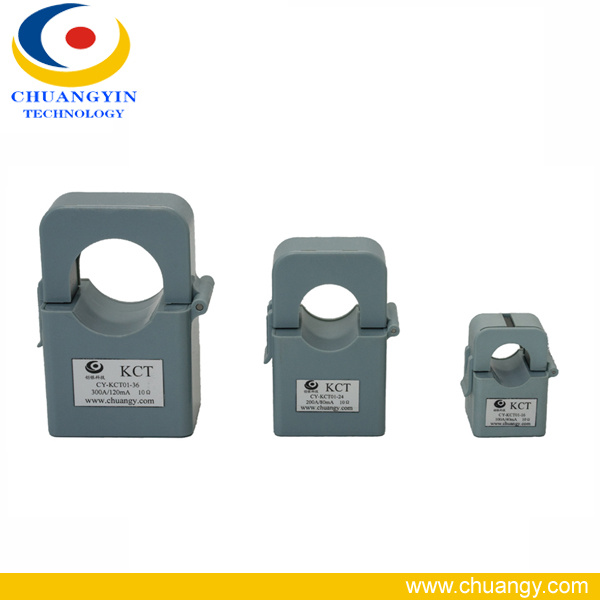

CY-KCT01A Split Core Current Transformer

Company :
95% customers come back to us for repeat orders

Sample Ready in 3-7 days

Features:

Small size,light weights and exquisite appearance

Easily install, no need to disconnect primary busbar

With over-voltage protection in open circuit

Applications:

Electric eney meter

Smart grid

Switch cabinet

a Power measurement and control system

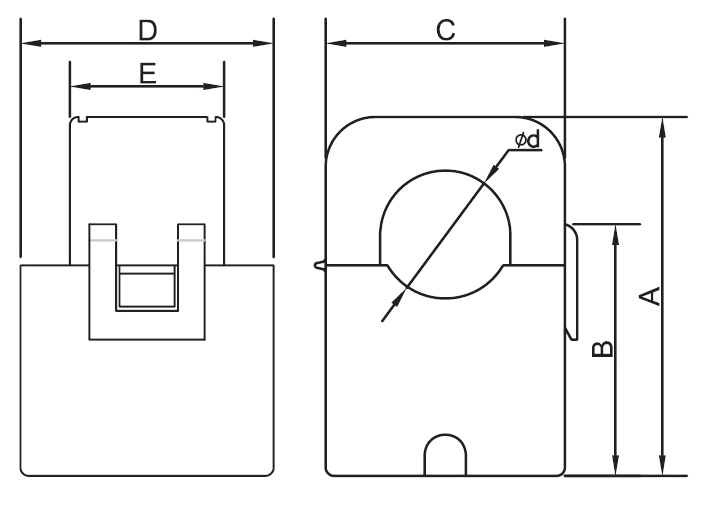

unit :mm

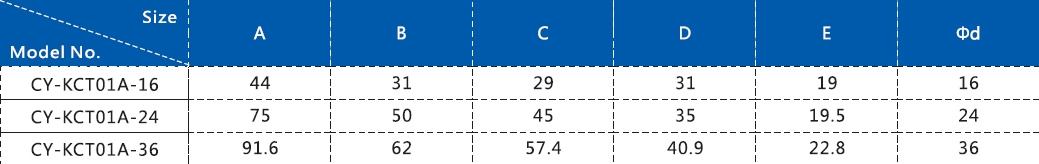

Size Model Number	A	B	C	D	E	Ø
CY-KCT01-10	40.5	28.6	22	26	14.5	10
CY-KCT01-16	44	31	29	31	19	16
CY-KCT01-24	75	50	45	35	19.5	24
CY-KCT01-36	91.6	62	57.4	40.9	22.8	36

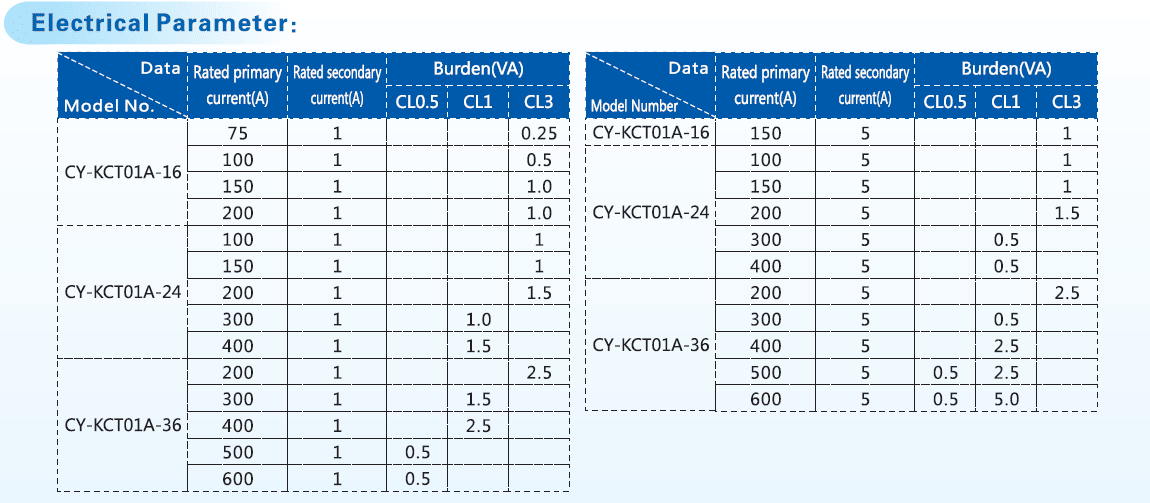

Electrical Parameter

Model Number Data	CY-KCT01-10	CY-KCT01-16	CY-KCT01-24	CY-KCT01-36
Rated Transformation Ratio	50A/25mA(50/60Hz	100A/40Ma(50/60Hz	200A/80Ma(50/60Hz)	300A/120mA(50/60Hz)
Current Range	1-50A(RL=10	1-100A(RL=10Ω	1-200A(RL=10Ω)	1-300A(RL=10Ω
Max Withstand Current	60A	Accuracy Class	0.2 0.5 1
Phase Displacement	1-=1.5+1º
Phase Displacement	1-=1.5+1º	+1.0±1º		+0.5 ±0.5º
Linearity error	-1±1%	-1±1%		-1±1%
Turn Ratio	2500:1	2500:1		2500:1
Protective Class	7.5VO-P	7.5V0-P		7.5VO-P
Insulation Class	CAT III
Working Environment	Temperature :-30-70ºC Humidity <=85%,Indoor
Storage Condition	Temperature : -40-90ºC Humidity <=85%

Prod Model:	CY-KCT01A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Outdoor Split Core Current Transformer
Installation:	Busbar Type
Magnetic Circuit Structure:	Single Stage Type
Frequency:	50 Hz/60 Hz
CE Recognized, And RoHS Compliant:	Yes
Outdoor Type:	with Rubber Cover
Application:	Rectifier
Phase:	Single
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Coil:	with Rubber Cover
Usage:	Measurement
Brand:	Chuangyin

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
