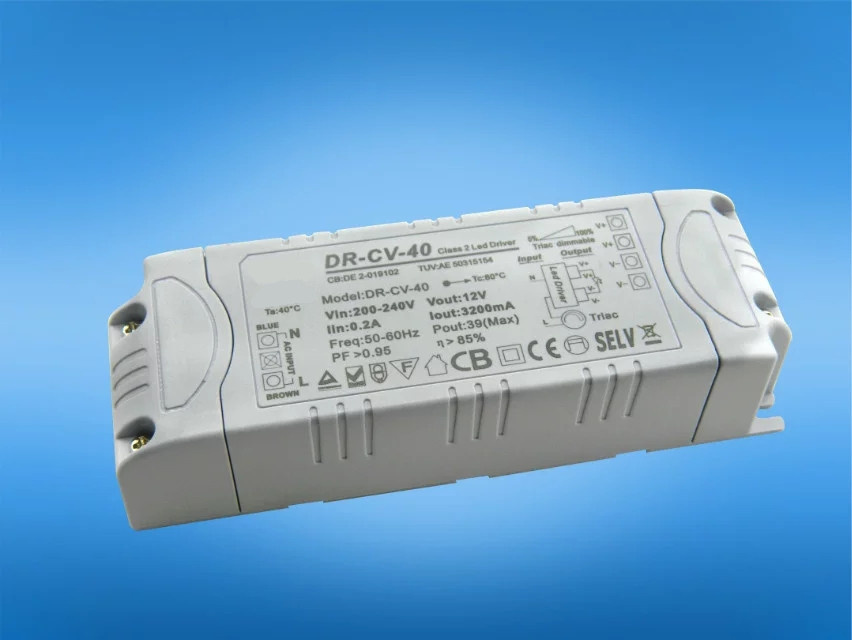

Custom on Request Traic 40W LED Driver with Good Quality

Name: Custom on Request Traic 40W LED Driver with Good Quality
Brand: all-electronics-online.com
SKU: 799225235
Availability: InStock
Rating: 4.5 (79 reviews)

Price:	US $ 15-17.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DR-CV-40
Dimming Range:	5%-100%
IP Degree:	IP20
Efficiency:	85%
Protection:	Short Circuit/Over Load/Over Voltage
Weight:	138g
Dimensions:	1324729(mm)
Output Power:	40W Max
Warranty:	2years
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Mode:	Customed
Power Supply Voltage:	90-130V/AC&180-240V/AC
Brand:	No Brand

Product Description

Custom on Request Traic 40W LED Driver with Good Quality

Product Features

1.Selectable constant current and constant voltage output.(Custom on request)

2.Full-ioslated,delivering up to 40W of power.

3.Short circuit,over current and over voltage protection. Up to 80% efficient.

4.Fireproof environmental protection PC plastic cover 2 years quality warranty

Technical Specifications

Model No.	DR-CV-40
Input Voltage Range	90-130V&180-240V/AC
AC Frequency	48-62Hz
Input current	0.52Amax
Output Mode	Constant Voltage
Output Current	3000mA	1800mA	1200mA	940mA
On Load Voltage	12V	24V	36V	48V
No Load Voltage	12V	24V	36V	48V
Output Power	40W Max.
Power Factor	>0.95
Efficiency	>80%
Dimensions	1324729(mm)
Weight	138g

Environmental Specifications

Operating Temperature	-30~45ºC
Storage Temperature	-40~+70ºC
Thermal Dissipation	Nature
Relative Humidity	5~95%
Isolation Voltage	In/Out 3000VAC
Vibration	5-55Hz/2g,30 Mimutes
Life Time	50000Hours,at TC max

Conformity & Standards

EMI	EN55022
EMI	EN55015 Class B
	EN55015 Class B
Safety	EN60598

Electromageric	EN61547,ENV5024
Immunity	EN61000-4-2/3/4/6/8/11
Harmonic	EN61000-3-2
Current Emissons	EN61000-3-3
