| Prod Model: |
PCBA-43 |
| Copper Thickness: |
1oz |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Single-Layer |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
| Base Material: |
Aluminum |
Product Description
Custom PCBA Assembly for LED Tube
ABIS CIRCUITS CO., LTD is a professional PCB manufacturer which is focus on double side, Multilayer and HDI pcb mass production. The company was established on 2006, We
have two factories together ,And supply aluminum PCBA service for Clients

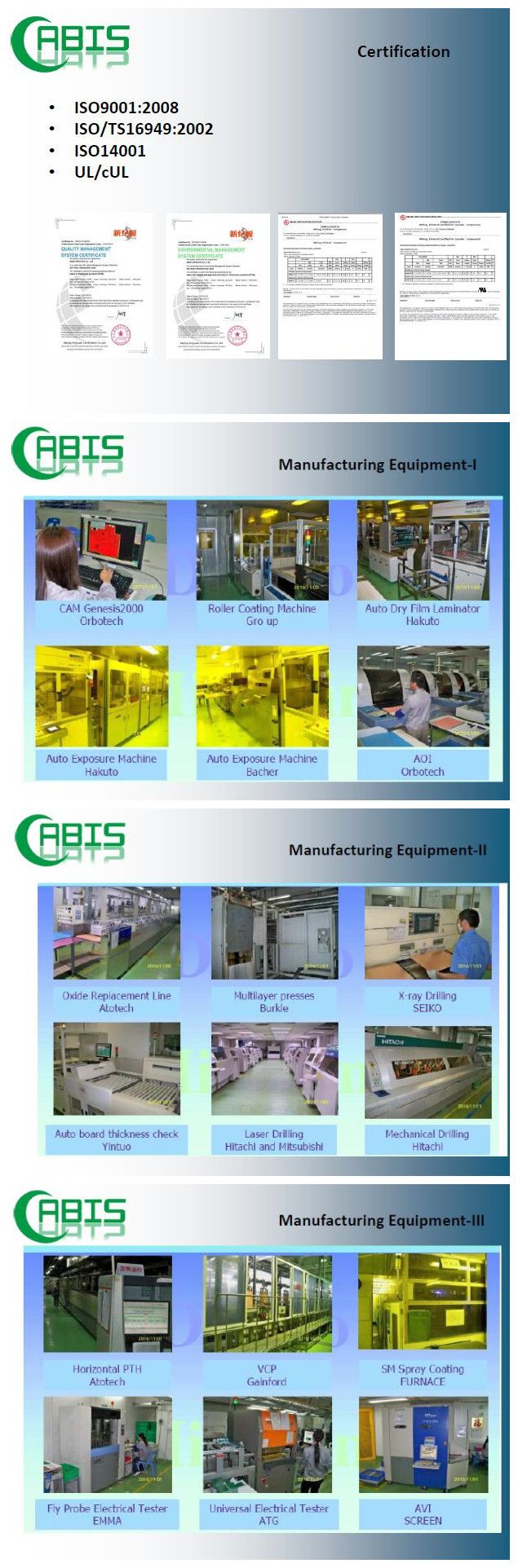

Certifications and Factory Pictures
Technical and Capability. Shenzhen Factory I (Focus on Prototyping, Quick turn, Medium batch)| Item | Capability |
| Raw material | Aluminum base,Copper base |
| Layer | 1-2 Layer |
| Min.Line width/space | 4mil/4mil(0.1mm/0.1mm) |
| Min.hole size | 12mil(0.3mm) |
| Max.Board size | 1200mm*560mm(47in*22in) |
| Finished board thickness | 0.3-5mm |
| Copper foil thickness | 35um-210um(1OZ-6OZ) |
| Remain thicness tolerance | +/-0.1mm |
| Hole position tolerace | +/-0.05mm |
| Routing outline tolerance | +/-0.15mm |
| Punching outline tolerance | +/-0.1mm |
| Surface finished | Lead free HASL,Immersion Gold/Silver,OSP etc |
| MC PCB production capability | 10,000 s.q.m/month |
. ShaoGuan Factory II (Mass production& HDI)| Raw material | FR-4,CEM-1,CEM-3,Rogers,Teflon etc |
| Layer | 1-20 Layer |
| Min.Line width/space | 3mil/3mil(0.075mm/0.075mm) |
| Min.hole size | 0.1mm(drilling hole) |
| Max.Board size | 1200mm*600mm |
| Finished board thickness | 0.2mm-6.0mm |
| Copper foil thickness | 18um-280um(0.5OZ-8OZ) |
| NPTH Tolerance | +/-0.075mm |
| NPTH Tolerance | +/-0.05mm |
| Outline Tolerance | +/-0.13mm |
| Surface finished | HASL/HASL lead free,Immersion Gold(ENIG)/Tin/Silver,OSP,gold plating/finger,Carbon ink,Peelable mask |
| Impendance Control Tolerance | +/-10% |
| Production capability | 50,000 s.q.m/month |

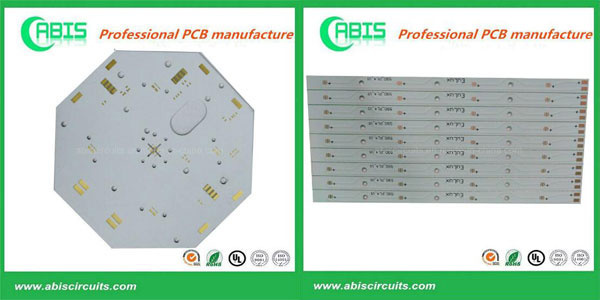

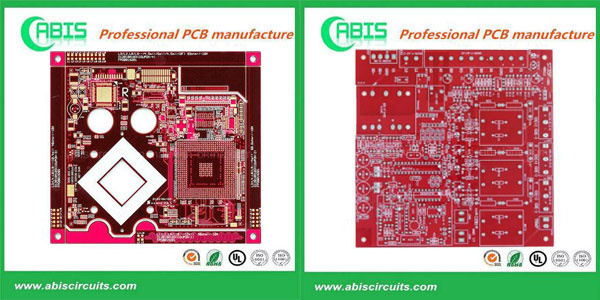

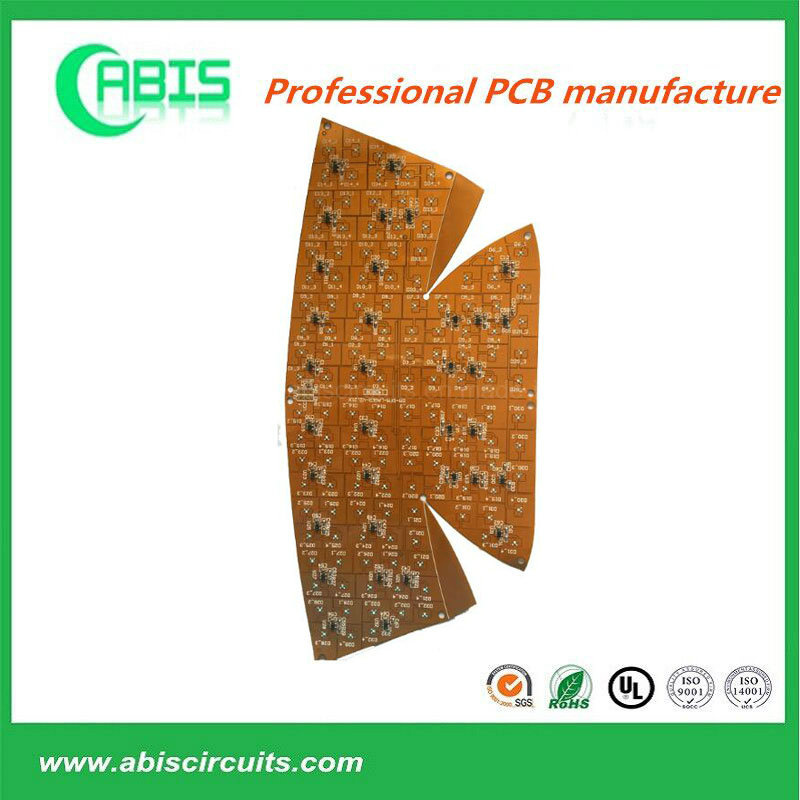

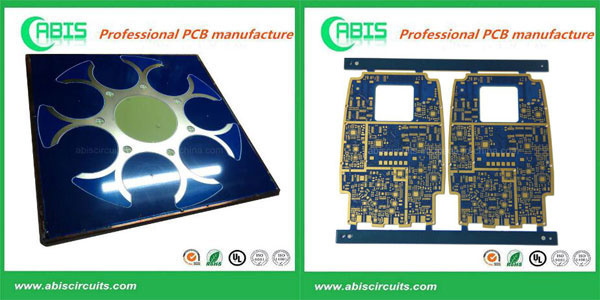

Product show:

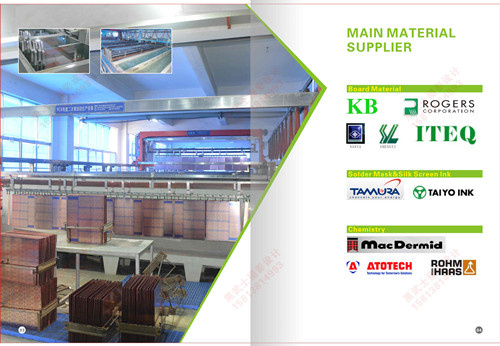

Main Material Supplier:

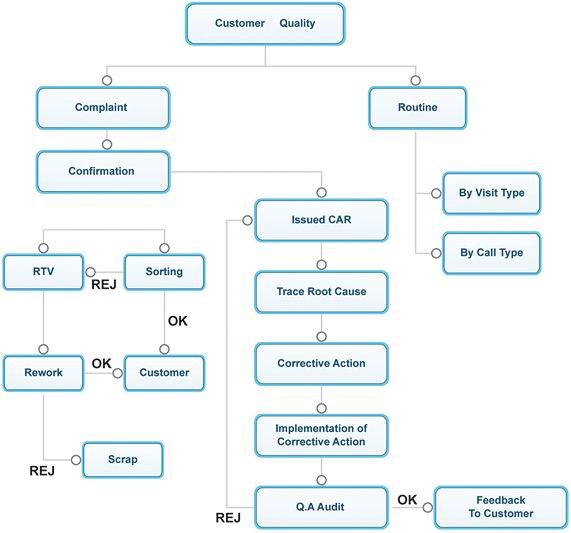

Quality Control Flow:
Pre-Sale and After-Sale Service: 1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run
FAQ
Q1:What's your Aluminum board Thermal Conductivity?
A: Normally 0.8-3W/m.K. If you have special demands please feel free contact us.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.
Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: What is your certificate?
A: ISO9001:2008, ISO14001: 2004, UL, SGS report.
Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.
Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.
Q8: Why choose us?
A: With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.
. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.
. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback
Abis Circuits Co. Ltd, established in 2006, Located in shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters. Our products are mostly used in the field of testing, computer, medical equipment and military, and have good performance in all kind of functional test. Our perfect management, advanced equipments, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer's satisfaction and support are what we have been strived for.
Now we have passed ISO9001, SGS and UL certificates. With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layer, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high quality level.
With more than 10 years experience in international business, we have abtained over 500 customers in the world, We sincerely appreciate trust and support from our new and old customers home and abroad all the time. At this time when global economy is development rapidly, we do hope to cooperate with all the friends to make a more brilliant future.
