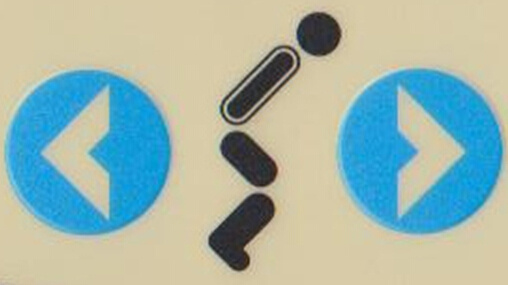

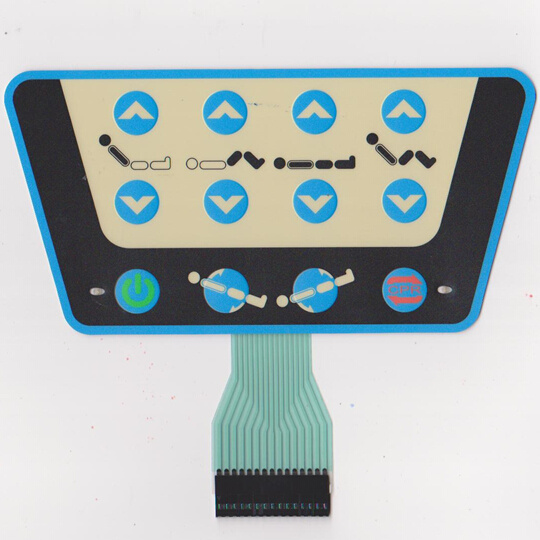

High Sensivity Metal Dome 3M Adhesive Medical Membrane Switch
Basic Info.
Name:Medical membrane switch
Colortrans:red/yellow/blue/white/black or as per request
Feature:dust-proof and waterproof
Certificate:RoHS/ISO 9001/SGS/etc
Custom Made:OEM/customize
Material:F200 + PET + DP Adhesive + 3M Adhesive
Adhesive:3M467 & 3M468 or no adhesive or customer required
Operation Temperature:-40ºC~70ºC
Insulation Resistance:<100MΩ,250V DC
Contact resistance:<1Ω /cm
operating voltage:≤ 50VDC
working current:25- 100mA,0-30V DC
reliability/service life:>1 million times
Operating humidity:when40°C,<98%RH
spring time:≤ 5ms
substrate voltage:2000V DC
Tail flexiblility:any angle within 180 degree
Switch travel:Flat Type 0.05-0.3mm tactile type:0.3-1.5mm
Why choose us ?
1 High reliable in function with Low cost
2 Function test 100% before shipment Rosh
3 Three factories to support mass production
4 Professional staffs and in administration level
5 Expert sales team to support customer services.
6 Metal dome or silicone keypad is also available.
7 Waterproof seal & design reach IP65.
8 17 years rich experiences in cooperation with famous brands such as SANYO/Philips /Siemens /Mettel etc.
Applications:
Our membrane switches are widely used in :
1.Medical Equipment
2.Telecommunications apparatus
3.Telephone systems
4.Household appliances
5.Security systems
6.Point of sale apparatus
7.Industrial controls
8.Access control systems.....
Competitive Advantage:
1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
Description:
LED1. The volume is small, very light,Super-bright, Low power consumption
2. LED power consumption is quite low, dc drive, it consumes energy does not exceed 0.1 W, the same lighting effect than the traditional light source energy saving nearly 80%
3. Some say the LED light source for long life lamp.It for the solid cold light source, epoxy resin encapsulation, under the appropriate current and voltage, the service life of up to 60000 to 100000 hours
Metal dome
1.Good conduction performance, between the operator and the product has good enable switch and control function
2.With stable back stretch self-return after (press), to provide the operator with a comfortable sense of touch
3.As much as 1 million times of contact of long life
4.Contact with smooth, strong guide connectivity and springback stability and delicate touch

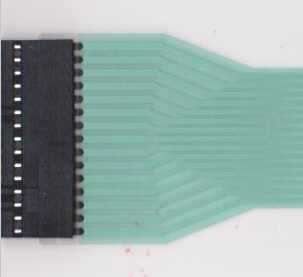

Connecter
Contact with smooth, strong guide connectivity
Brank | TKM-MS | Tyoe | Medical Membrane Switch |
Color | As per request | Operating Voltage | ≤50 ( V ) |
Rated Current | 0-30V DC | Contact resistance | 0.5-1 ( Ω) |
Insulation Resistance | ≤50 ( Ω) | Substrate voltage | 1500VDC |
Dome springback time | ≤5 ( ms ) | Operating Temperature | -20_60 ( C° ) |
Key operation force | 15-750g | High life time | >1million times |
Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.
We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.
Our main product range are:
1)Membrane Switch and overlay
2)Flexible printing Circuit/ FPC/EL
3)Silicone products including silicone rubber key pad. And various silicone Rubber products.
4) Metal nameplate series
5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector
We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.
We sincerely hope can cooperate with you in the coming future!
