Screen Printing Resistant Overlay Control Keypads Membrane Switch

Name: Screen Printing Resistant Overlay Control Keypads Membrane Switch
Brand: all-electronics-online.com
SKU: 616555274
Availability: InStock
Rating: 5 (47 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

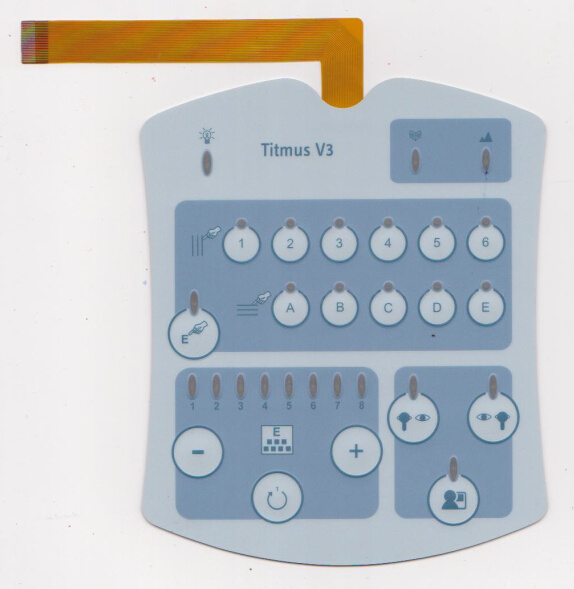

Screen Printing Resistant Overlay Control Keypads Membrane Switch

Detailed Product Description
Notice: We have the capacity to provide you membrane switches with other special requirements, such as shielding, windows/lens coating, embossing, embedded LED, UV glossy/matte/textured and more
Prototypes of membrane switch and keyboards in 4-7 days.

Membrane switchs type:
1, button-neutral embossed touch membrane switch
2, built-in metal shrapnel-touch membrane switch
3, the flat touch membrane switch
4, built-in LED indicator membrane switch
5, with shielding layer membrane switch lines

Membrane switch:
1. Membrane switch's overlay materials: The most commonly used base materials are polyester and polycarbonate.

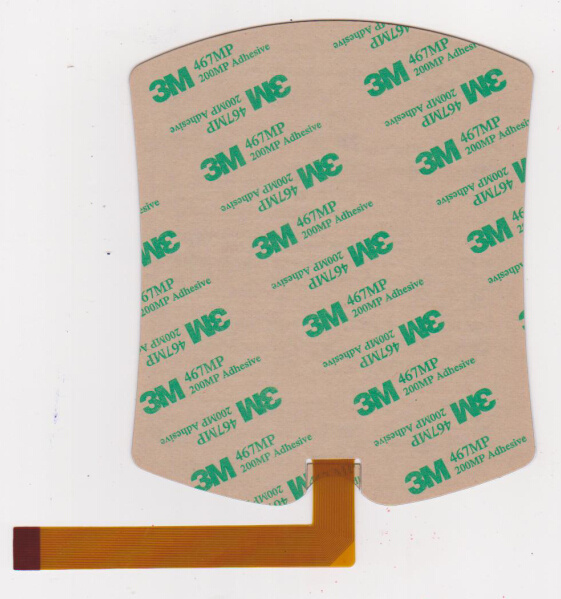

2. Rear Adhesive: 3M 467MP T4000 etc.
3. Quality can meet customer

	Technical Specification Of Membrane Swithc
wire lead resistance:	<1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0~30V DC	Operation Temperature:	-104°F~158°F
Rated Voltage:	<50V, DC	Operation Humidity:	at104°F,<98%RH
Insulation resistance:	<100MΩ,250V DC	Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Prod Model:	HC-MS-014
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Overlay:	UV Resistant
Touch Feeling:	Excellent Touch Feeling
Material:	PC
Type:	Flat
Application:	Machines

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
