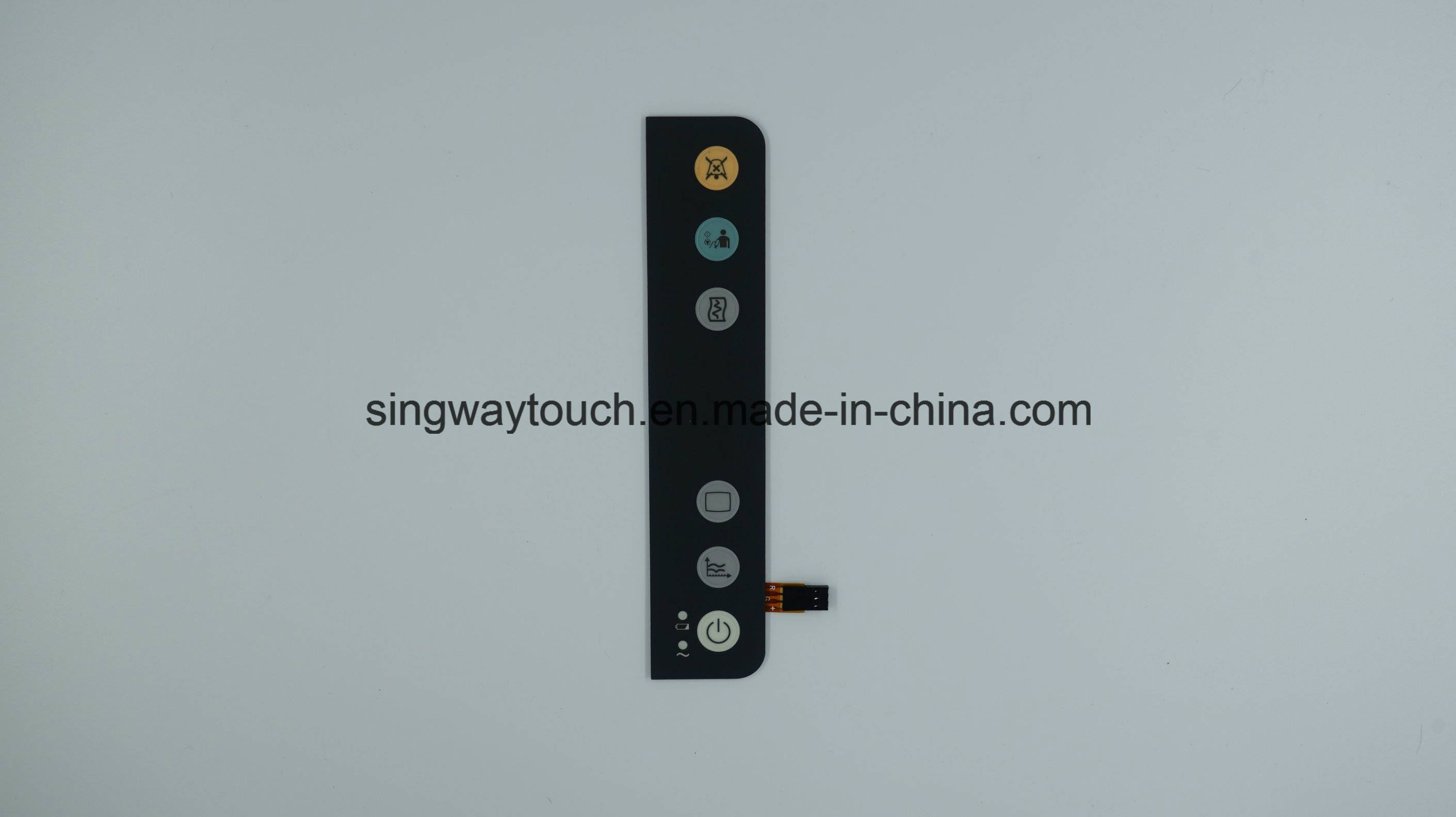

| Prod Model: |
XWM16177 |
| Embossing Type: |
Rim Embossing |
| Circuit Type: |
FPC Circuit |
| Pitch: |
2.54mm |
| Adhesive: |
3m467 |
| Connector: |
3 Way Connector |
| Type: |
Convex |
| Material: |
PET |
| Application: |
Medical |
| Structure: |
Metal Dome Structure |
| Brand: |
Singway |
| Certification: |
RoHS |
Product Description
Our Product:
a) Tactile membrane switch
b) Non-tactile membrane switch
c) PCB/FPC
d) Shielding membrane switch
e) Embedded LED or resister membrane switch
f) Meatl keypad and keyboard
g) Sheet metal fabrication, cutting, bending, stamping and welding
h) Classic China custom new design waterproof push button switch membrane manufacturer
I) Overlay,Overlay with Adhesive,Overlay graphic
Technical Parameters
1.Electrical
| Maximun Circuit Rating: | 35V(DC),100mA,1W |
| Contavt Resistance: | 10Ω~ 500Ω |
| Insulation Resistance: | 100MΩ 100V |
| Dielectric: | 250VRms(50~60Hz 1min) |
| Contact Bounce: | < 5ms |
Life Expectancy: | Flat: ≥ 5million times |
| Tactile: ≥ 1 million times |
| Dura switch: ≥ 10million times |
2.Mechanical
| Actuation Force: | Flat:57~284g(2~10oz)
Tactile: 170~397g(6~14oz) |
Switch Strok:
| Flat: 0.1~0.5mm
Tactile: 0.6~1.5mm |
3.Environment
| Operation Temperature: | -40~+80 |
| Storage Temperature: | -40~+80 |
| Humidity: | 40,90%~95%,240hours |
| Vibration: | 20G,max.(10~200Hz,Mil-SLD-202,M204.Condition B) |
| Electrical Property |
| Working voltage | working current | contact resistance | Insulation resistance | Base material pressure | Recoil time | Loop resistance | Insulation ink pressure |
| ≤50VDC | ≤100mA | 0.5~10 Ω | ≥100m Ω | 20KDVC | ≤6ms | 50 Ω ,150 Ω ,350 Ω or based on customer's requirement | 100VDC |
| Mechanical Property |
| Working life | Closingdisplacement | Snapping back time | Power standard | The caudal may old |
| >1,000,000 | 0.1~0.4mm(not touch type);0.4~1.0mm | ≤6ms | 15~750g | ≤180° |
| Environmental Performance |
| Operating temperature | Storage temperature | Working humidty | Barometric pressure | Altitude |
| -20°~+70° | -40°~+85° | 95%±5% | 86~106kDa | 0~400m |
| Printing indicators |
| 1,The printing size deviation±0.1mm;Exterior line deviation ±0.1mm. |
| 2,No ink dispersed,no word disability. |
| 3,The color difference is not more than grades two. |
| 4,No crease or paint drop. |
5,Window transparent and clean,color uniformity,no scratch/pinhole/or impurity.
What are Membrane Switch?
A membrane switch is a momentary switching device that is manufactured by using a series of flexible layers of polymer films and adhensives. The upper-most layer, called a graphic overlay, is manufactured by printing on the second surface of clear polyester or polycarbonate film. Membrane switches can be constructed with multiple circuit layers, and more elaborate graphic design features, such as domed key embossing. Designs that are more complex require, more material layers for proper construction and reliable operation. Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or resistors can provide the designer with virtually limitless capablities to create the ideal custom user interface for their products. |
