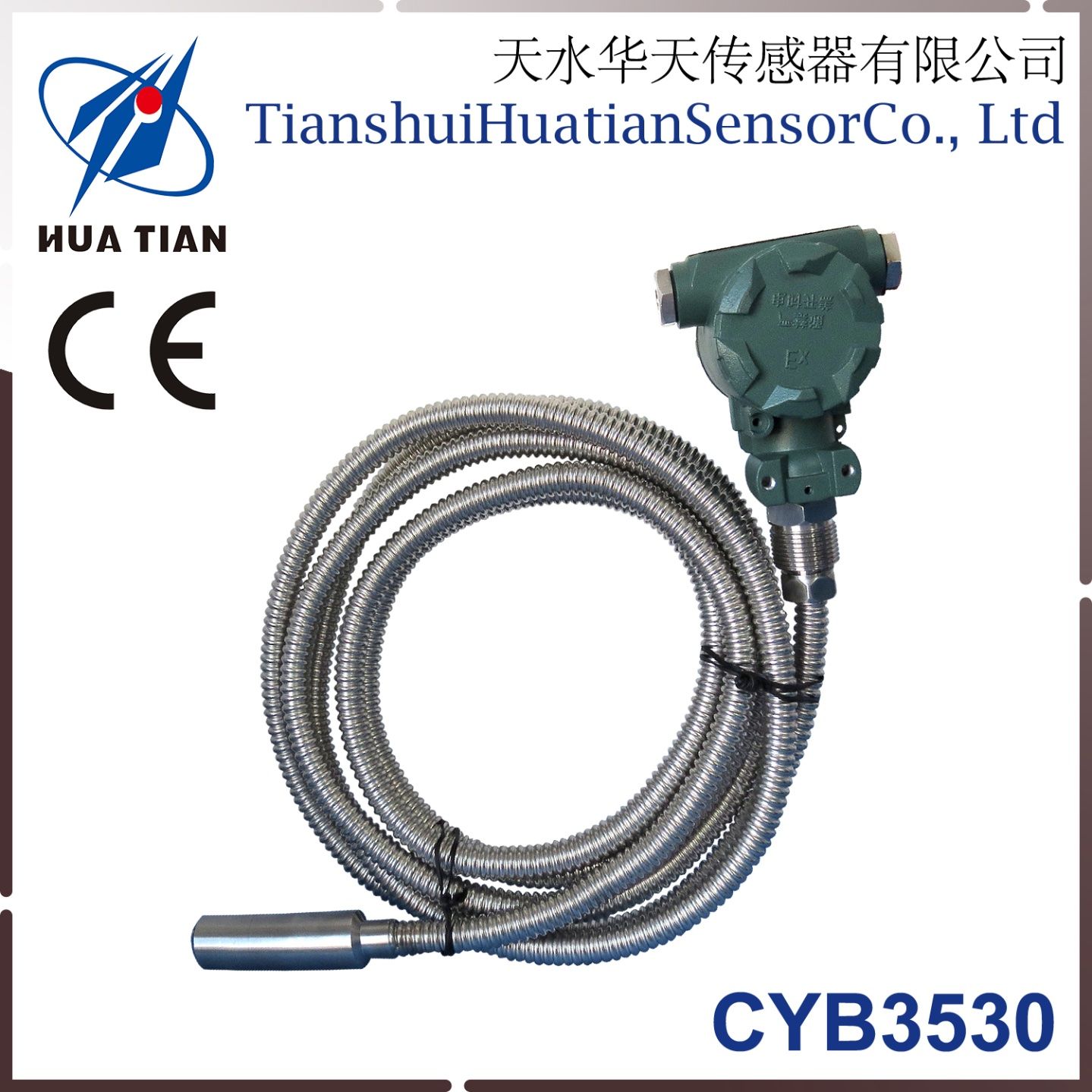

Cyb3530 Bellows Pipe Level Transmitter

Name: Cyb3530 Bellows Pipe Level Transmitter
Brand: all-electronics-online.com
SKU: 835886135
Availability: InStock
Rating: 4.5 (139 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Introduction

The CYB3530 submersible level transmitter is widely used at water plants, reservoirs, oil refineries, chemical works, glass works, sewage plants, etc.. High stable piezoresistive pressure sensor + high accurate circuit board + full sealed stainless steel housing, together they provide a great quality product that you can trust.

Features

·High accuracy
·Special designed with stainless stain bellows pipe
·High reliability and stability
·Cost-efficient
·Explosion-proof: Exia II CT6 Ga
·Triple lightning protection

Specification

Range	0~0.5... 50mH2O
Output signal	4~20mA(1~5V) 2-wire
	0~10mA(0~5V) 3-wire
Accuracy	0.1/0.2(0.25)/0.5%FS
Application temperature	-10~80ºC
Storage temperature	-40~100ºC
Housing	1Cr18Ni9Ti
Medium	liquid acompatible with SS316L
Power supply	12~36VDC
Protection	IP66
Explosion-proof	Exia II CT6 Ga

Outline Dimension

Prod Model:	CYB3530
IP Rating:	IP66
