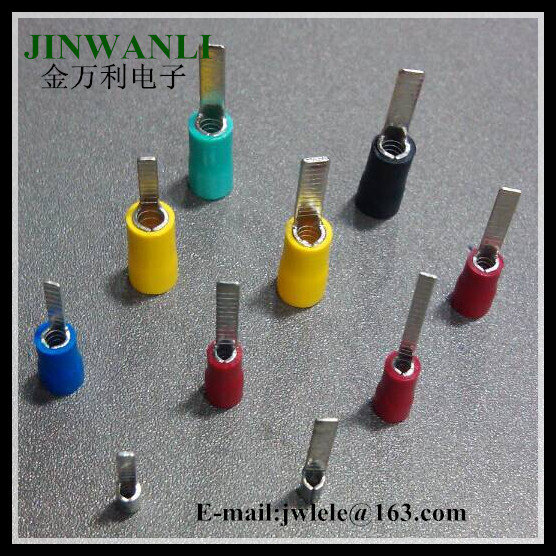

Dbv5.5-10 Easy Entry Insulated Lipped Blade Terminal

Name: Dbv5.5-10 Easy Entry Insulated Lipped Blade Terminal
Brand: all-electronics-online.com
SKU: 683058825
Availability: InStock
Rating: 4.4 (118 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

DBV Insulated Lipped Blade Terminal

Product description
Size: LBV Insulated Lipped Blade Terminal
Terminal body: Copper
Material: RoHS approved copper, PP Insulation.
Finish: Tin plated

Standard: CE, RoHS, TUV, SGS, CQC, SASO UL
Packaging Detail: 1000PCS per polybag, each bag per paper box

Vinyl Insulated Blade Terminals

Cable size:0.5~1.5mm2(A.W.G.22~16) Max current:Imax=19A Temperature:75oCMaterial:Purple copper Sheath:PVC Thickness:0.75mm

ITEM NO	Dimension(mm)					Color
ITEM NO	B	L	F	H	Dφ	Color
DBV 1.25-10	2.3	20.0	10.0	10.0	4.3	red
DBV 1.25-14	2.3	24.0	14.0
DBV 1.25-18	2.2	28.0	18.0

Cable size:1.5~2.5mm2(A.W.G.16~14) Max current:Imax=27A Temperature:75oCMaterial:Purple copper Sheath:PVC Thickness:0.8mm

ITEM NO	Dimension(mm)					Color
ITEM NO	B	L	F	H	Dφ	Color
DBV 2-10	2.8	19.0	9.0	10.0	4.9	blue
DBV 2-14	2.4	24.0	14.0
DBV 2-18	2.2	28.5	18.0

Cable size:4~6mm2(A.W.G.16~14) Max current:Imax=48A Temperature:75oCMaterial:Purple copper Sheath:PVC Thickness:1.0mm

ITEM NO	Dimension(mm)					Color
ITEM NO	B	L	F	H	Dφ	Color
DBV 5.5-10	2.8	22.5	10.0	13.0	5.6	yellow
DBV 5.5-14	4.5	26.5	14.0
DBV 5.5-18	4.5	30.5	18.0
DBV 8-14	5.0	31.0	14.0	17.0	8.2	red
DBV 14-16	6.0	36.5	16.0	20.5	10.2	red

Product name:	insulated lipped blade terminal(terminal connector)
Secification:	According to the customer picture ,item NO. or picture
Certification:	ISO9001,UL,ROHS and the latest REACH
Delivery:	The stock goods will be delivered within 3days,and the customized goods will be delivered within 7days
Sample:	Free
MOQ:	Most product not have MOQ ,orders for just one piece are welcome
Terms of trade:	EXW,FOB,CIF,CPT ect
Payment Terms:	T/T in advance ,Western Union ,Paypal , Escrow ,L/C
Service:	ODM/OEM
Other service:	CO,Form F

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Application:	Transmission of Electrical Signals
Shape:	Blade
