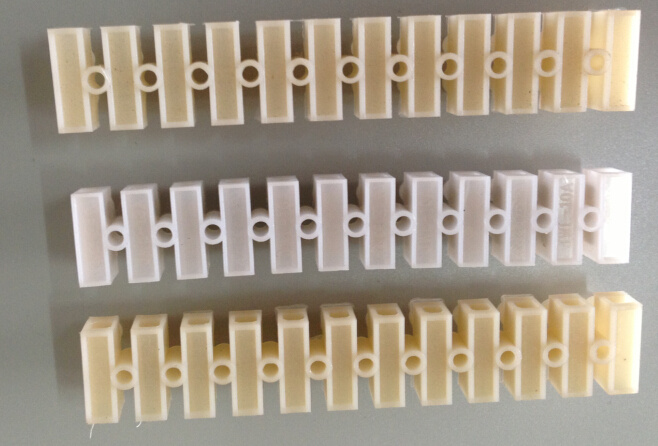

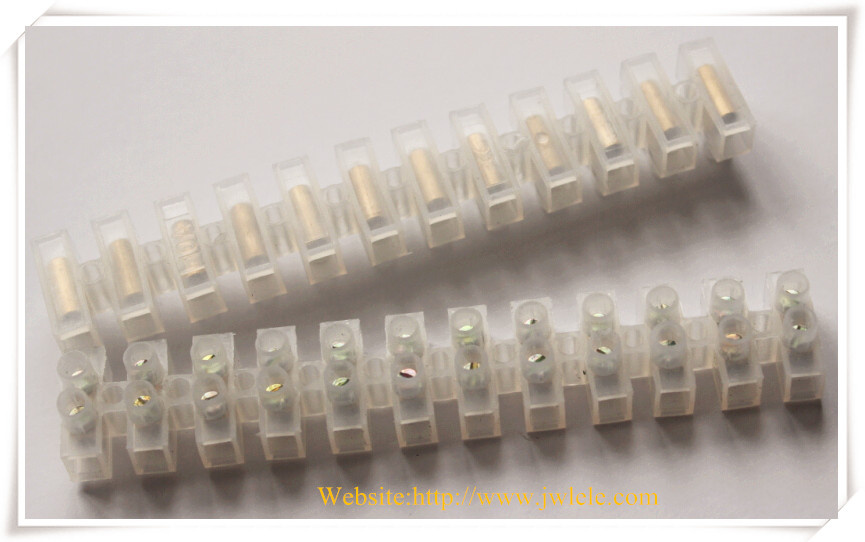

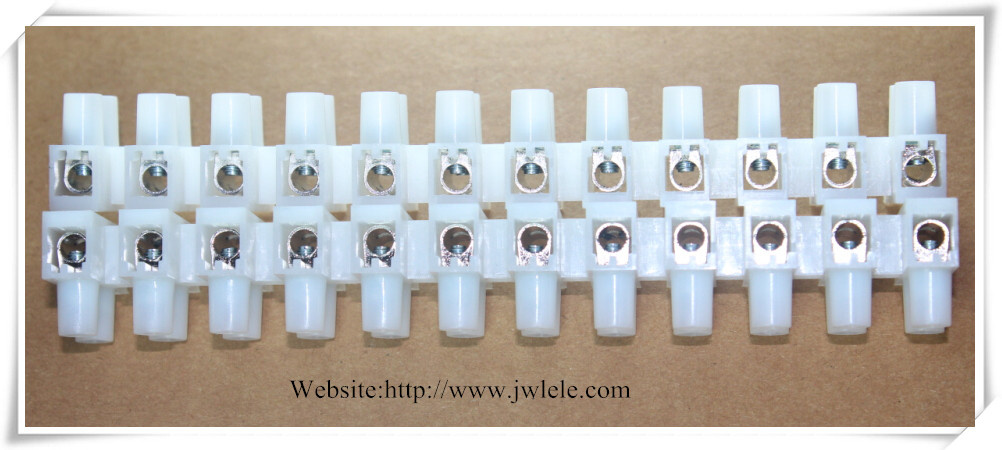

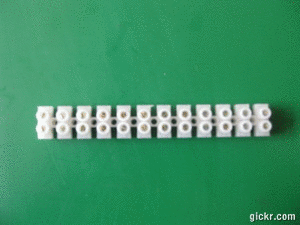

H Type Plastic 15AMP Terminal Block with CE UL Certificate

Name: H Type Plastic 15AMP Terminal Block with CE UL Certificate
Brand: all-electronics-online.com
SKU: 675636165
Availability: InStock
Rating: 4.3 (63 reviews)

Price:	US $ 0.14-0.18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Type: H, U, F type
Connecting terminal of JWL-3A, 5A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A

Material: PE, PP, PA
Brass insert and Steel screw
Voltage: 250V~400V

Cable Range(Cable wire): 2.5MM~40MM
Working Temperature: -40° To 110°
Color: Natural color and black color

Certificate: CE
Number of Contacts: 1-12 pole
Conductor Size:11-20AWG
Type: Feed Through

Specification

Item No.	L	W	H	mm²	VOLT	AMP
JWL-H-3A	91	17	12	4	380V	3A
JWL-H-6A	106	15.5	13.5	6	380V	6A
JWL-H-10A	126	21	15	10	380V	10A
JWL-H-15A	133	21.3	16	12	380V	15A
JWL-H-20A	140	22	16	14	380V	20A
JWL-H-30A	164	24	20	20	380V	30A
JWL-H-60A	189	30	25	25	380V	60A
JWL-H-80A	205	35	28	35	380V	80A
JWL-H-100A	233	40	30	40	380V	100A
JWL-H-150A	255	45	35	60	380V	150A

CURRENT	CARTON SIZE	GW/NW	PCS/CARTON
3AMP	39X18.5X30.5	18-17KG	1200PCS
5AMP	37X22X28	18-17	1200
6AMP	47.5X22X28.5	24-23	1000
10AMP	54X27X25.5	24-23	800
15AMP	48X28X21	20-19	400
20AMP	51X26.5X15.5	17-16	500
30AMP	40X35X21	18-17	300
60AMP	40X32X26	23-22	200
80AMP	34X21X31	15-14	120
100AMP	36.5X23.5X29.5	19-18	100
150AMP	42X27X27	26-25	80

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Poles:	12
Application:	Lighting
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
