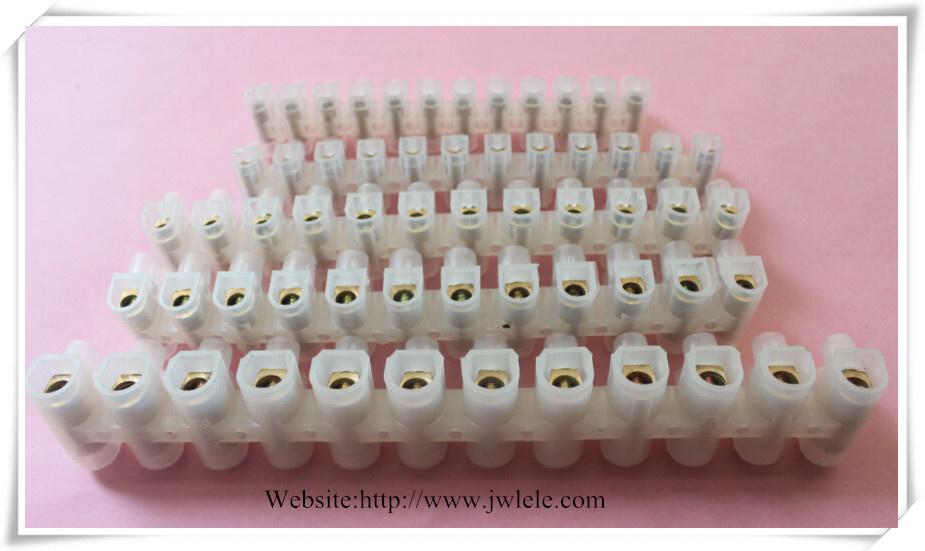

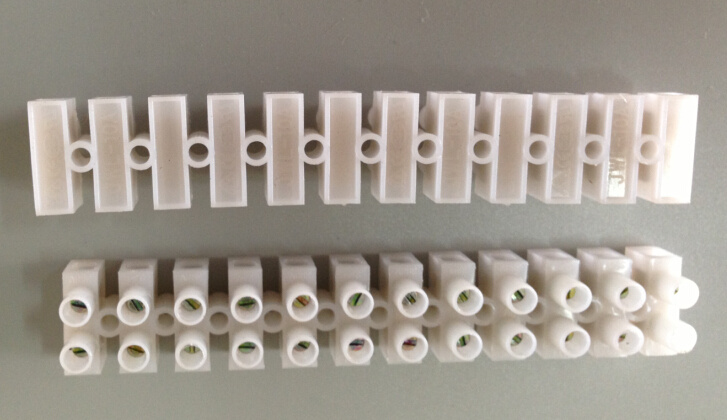

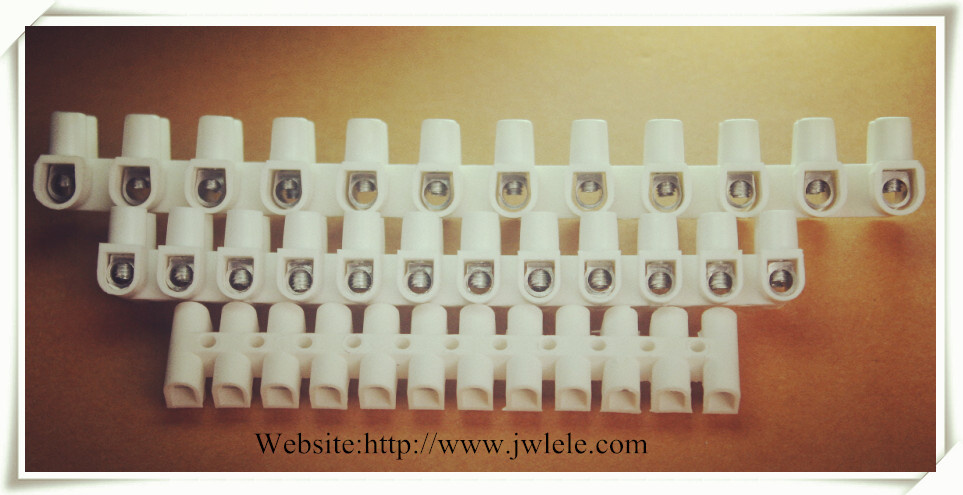

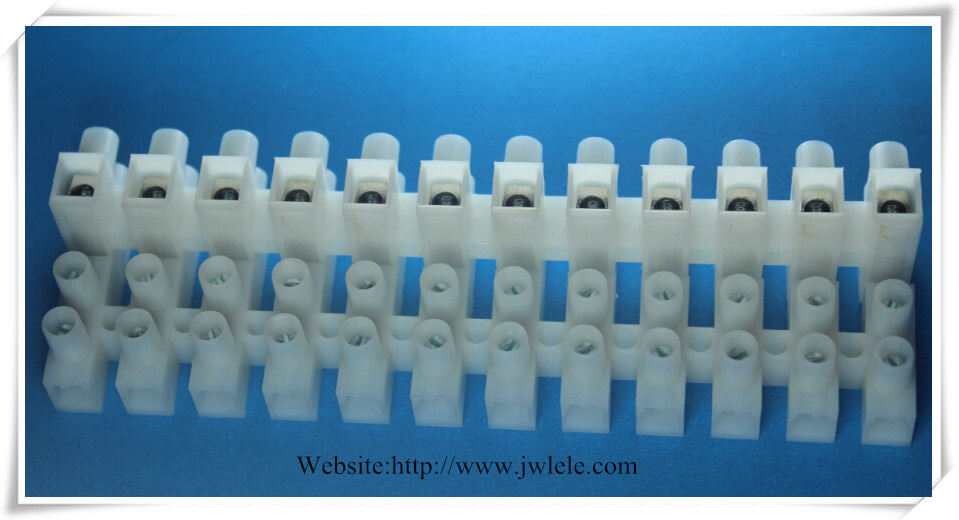

Feed Through PA 12 Way Terminal Block Strip Connector

Name: Feed Through PA 12 Way Terminal Block Strip Connector
Brand: all-electronics-online.com
SKU: 675462405
Availability: InStock
Rating: 4.5 (95 reviews)

Price:	US $ 0.135-0.15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H, U, F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Lighting
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Jwl

Product Description

Feed through Terminal blocks H, U, F type
Connecting terminal of JWL-3A, 5A,6A,10A,15A, 20A, 30A, 60A, 80A,100A,150A

Material:PE, PP, PA
Brass insert and Steel screw
Voltage:250V~450V
Cable Range(Cable wire):2.5MM~40MM

Working Temperature:-40° To 180°
Color:Natural color and black color
Certificate:CE
Number of Contacts:1-12 pole

Conductor Size:11-20AWG
Samples are available

Products passed international standards.

Item no.	L	W	H1	H2	Φ	E1	E2	screw size	material
Item no.	mm							screw size	material
3A 4mm 2	92.3	16.8	12.3	7.7	3	7.8	5.7	M2.5*4	PE PP PA
6A 6mm 2	115.4	18.8	15.4	8.7	3.2	9.6	6.3	M3*5	PE PP PA
10A 10mm 2	129.3	20.7	16	9.5	4.2	11	7.6	M3*6	PE PP PA
15A 12mm 2	137.8	22.5	18.6	10.3	4.5	11.7	8.6	M3*7	PE PP PA
20A 14mm 2	138	22.5	19	10.7	4.7	12	8.6	M4*6.5	PE PP PA
30A 16mm 2	164	25.5	20	11.7	5.6	13.9	9.3	M4*7	PE PP PA
60A 25mm 2	186	29.2	25.3	14.8	6.6	15.7	10.8	M4*9	PE PP PA
80A 35mm 2	226.8	36.1	29	18	7.8	19.2	13.2	M5*11	PE PP PA
100A 40mm 2	254.8	45	34.7	22.3	9	20.5	19.2	M6*12	PE PP PA

Specially designed for electrical appliances, lighting fixtures, small transformers, and for all kinds of all kinds of applications which require safety connections and have the possibility of withstanding high temperatures.
