DC 24V Electrical Rolling Shutter Side DC Motors
Electronic limit rolling door motor / Electronic limit AC rolling shutter door motor / Electronic limit AC 700KG / Electric Motor For Roller Shutter Door
It adopts many new patent technologies , so its functions are more brilliant , the users can install it more easily , operate it more reliable
.
Features and functions:
1. Remote control;
2. Low noise and small shaking;
3. With electronic anti-theft apparatus;
4. Good design, advanced struture, strong power;
5. Import electric component, security and credibility;
6. Automatically open or close the doors by pressing relevant buttons;
7. Doors are also workable under the operation of manual control equipment when power failed.

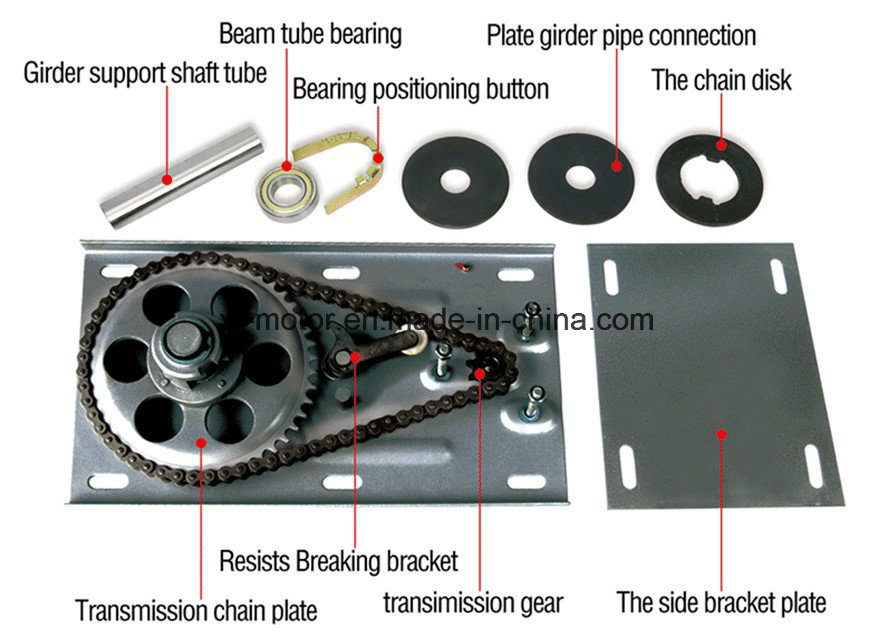

Motor Machine Characteristic:
1) Shell: Aluminium alloy, solid and lingt but durable and easy to install.
2) Gear: High-quality alloy steel and special technical treatment to guarantee the strong hoist.
3) Brake structure: Special device mechanical brakes, power cut off in an instant the brakes, to ensure absolute safety brake.

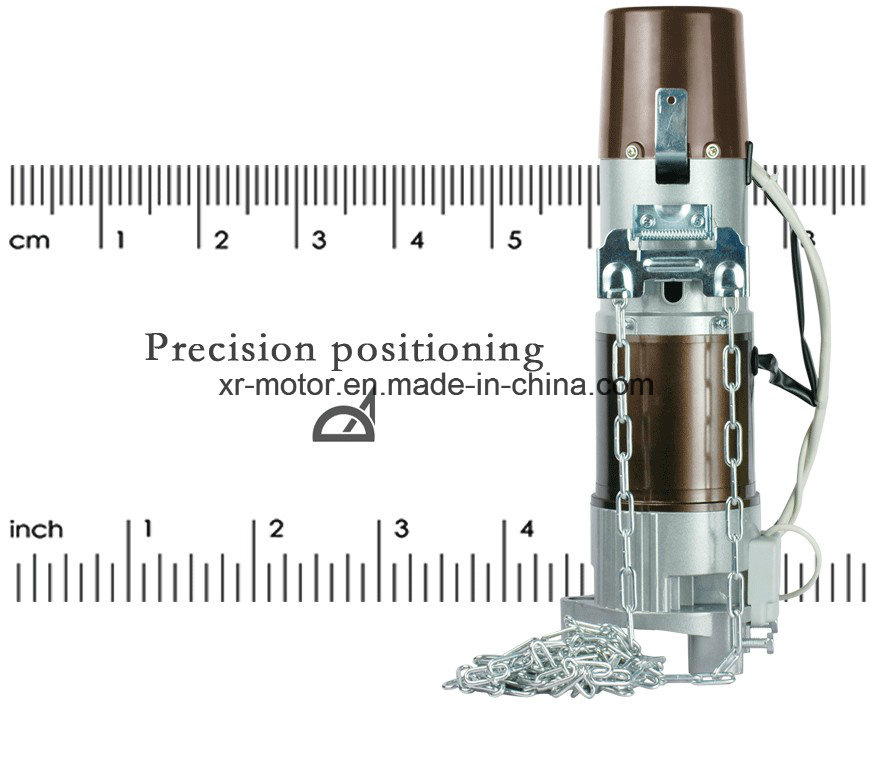

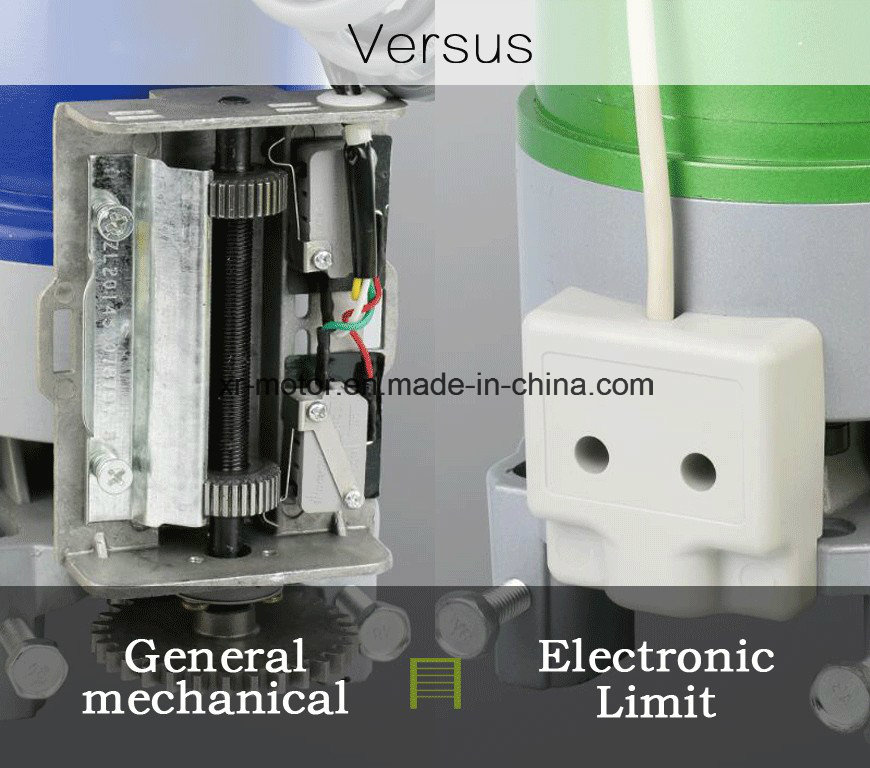

4) Limit System: Correct control, easy operation, and big control range.
5) Transmission System: High accuracy, smooth running, and low noise.
6) Anti-dropping device: Preventing accidental injury and ensure safety.
Motors Applications:
It is an ideal accessory products of modern life, which is widely used in shopping malls, hotels, warehouses, garages, post and telecommunications, banks, shops, factories and other buildings' rolling door opening and closing.
Our Service:
Any inquiry/question will be reply in 24 hours during working days.
Sample order: Available, the customers should charge the sample fee and freight cost.
OEM for customers is available.
Delivery time: 2-4 weeks after order confirmation.
Accessory size chosing: 4 inches, 5 inches, 6 inches
Packing: Carton packed fill with foam
Terms of Shipping:
By Express: FedEx/DHL/UPS/TNT/EMS, etc.
Air/Sea Freight: Goods will be delivered by air or sea according to customer's order.
Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange the delivery.
Product Description
| Description | Model | Max Lifting power | Max Lifting Height(M) | Output Power | Voltage/Frequency | Bracket size(mm) |
| AC Aluminum Coil Rolling door motor with remove control | 300KG-1P | 300KG.F | 4.5 | 150W | 220V+10%/50HZ | 4"280*495*3.0 |
| 400KG-1P | 500KG.F | 5 | 180W | 220V+10%/50HZ | 4"280*495*3.0 |
| 500KG-1P | 500KG.F | 5 | 200W | 220V+10%/50HZ | 4"280*495*3.0 |
| 600KG-1P | 600KG.F | 6 | 300W | 220V+10%/50HZ | 4/5"530*320*3.5 |
| 800KG-1P | 800KG.F | 9 | 400W | 220V+10%/50HZ | 5/6"600*320*3.5 |
| 1000KG-1P | 1000KG.F | 9 | 500W | 220V+10%/50HZ | 5/6"600*320*3.5 |
| AC Copper Coil Rolling door motor with remove control | 300KG-1P | 300KG.F | 4.5 | 180W | 220V+10%/50HZ | 4"280*495*3.0 |
| 400KG-1P | 500KG.F | 5 | 200W | 220V+10%/50HZ | 4"280*495*3.0 |
| 500KG-1P | 500KG.F | 5 | 250W | 220V+10%/50HZ | 4"280*495*3.0 |
| 600KG-1P | 600KG.F | 6 | 370W | 220V+10%/50HZ | 4/5"530*320*3.5 |
| 800KG-1P | 800KG.F | 9 | 400W | 220V+10%/50HZ | 5/6"600*320*3.5 |
| 1000KG-1P | 1000KG.F | 9 | 550W | 220V+10%/50HZ | 5/6"600*320*3.5 |
| 3Phase Copper Coil Rolling door motor with remove control | 1000KG-3P | 1000KG-3P | 9 | 400W | 380V-450V/50HZ | 6"690*360*5.5 |
| 1300KG-3P | 1300KG-3P | 9 | 600W | 380V-450V/50HZ | 6/8"690*360*5.5 |
| 1500KG-3P | 1500KG-3P | 9 | 800W | 380V-450V/50HZ | 8"760*410*5.5 |
| DC Rolling door motor with control BOX | DC 300 | 300KG.F | 4.5 | 180W | DC 24V | 4"280*495*3.0 |
| DC 600 | 600KG.F | 6 | 250W | DC 24V | 4/5"530*320*3.5 |
| DC 800 | 800KG.F | 9 | | | 5/6"600*320*3.5 |
