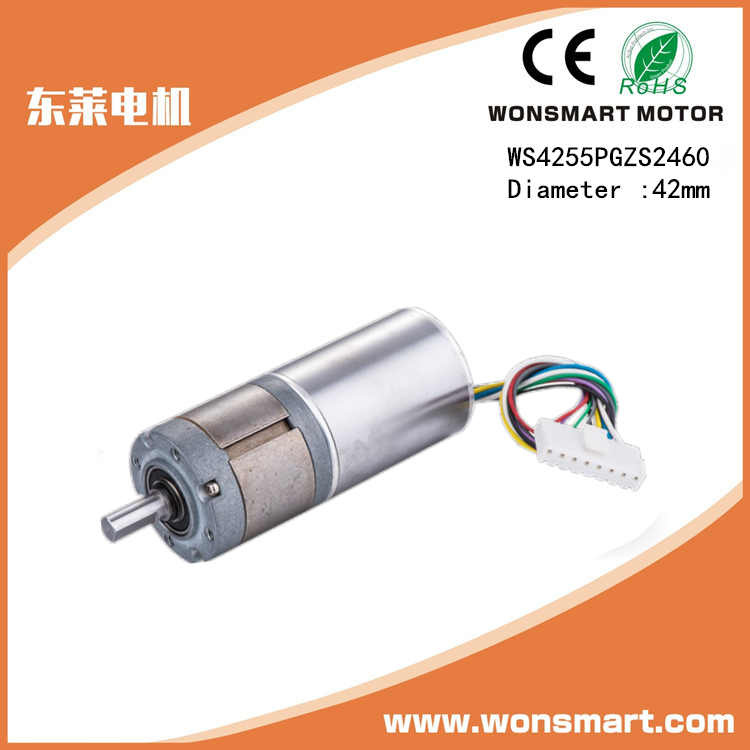

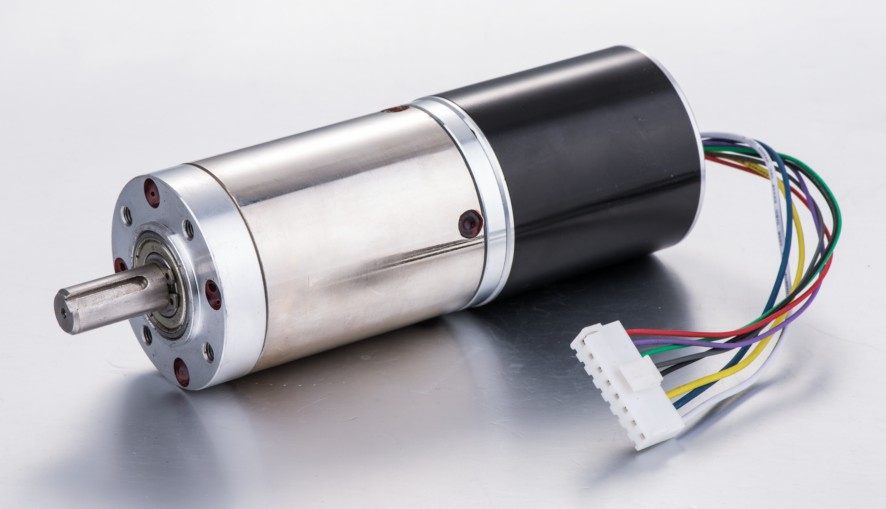

DC Brushless Gear Motor

Product Introduction:

NMB ball bearing guarantee long life;
Hobbing process for all steal Gears .
Low Noise and big torque.
Can Choose wonsmart External driver controller.
External driver controller can change speed by PWM or 0~5v signal and change shaft running direction from CW to CCW.
Mainly used onto medical equipment, conveyor, air cushion machine and many other auto machines;

Gearbox Motor Performance:

Part  No	Gear Ratio		1:3.4	1:5	1:16	1:20	1:26	1:64	1:81	1:104	1:132	1:256	1:326	1:415	1:527	1:671
WS4255PGZS24 WS4255PGZS12	rated torque	N.m	0.17	0.26	0.76	0.92	1.23	2.68	3.36	4.37	5.55	9.68	11.76	14.73	18.86	24.12
	Rated Speed	rpm	1412	960	300	240	185	75	59	46	36	19	15	12	9	7

Motor Performance:


Part No	Noload Speed (r/min)	Noload Current (A)	Rated Torque (N.m)	Rated Speed (r/min)	Rated Current (A)	Rated Output power (W)	Rated Input Power (W)
WS4255-24-60-V200	6000	0.2	0.06	4800	1.7	30	41
WS4255-12-60-V200	6000	0.4	0.06	4800	3.4	30	41

Gearbox performance:


Gear Ratio	Lenght (mm)	Weight (g)	Stage
1:3.4~5	39		1
1:16~1:26	49		2
1:64~1:132	58		3
1:256~1:671	67		4


Packaging & Shipping

Item:WS4255PG
Qty: 5PCS
Gross WT: 3.7 KGS
Net WT: 3.5KGS
Size:33.5X22.5X8.5CM

Payment&Delivery

Sample Payment preference:  paypal /  bank account;
Sample delivery time:  3-5 days;
Sample delivery method: Fedex, UPS, DHL;
Sample delivery cost: 20-45 USD for 1 kg;
Mass Production payment:  Bank account;
Mass production delivery time: 15-30 days;
Mass production delivery method:  Fedex, UPS, DHL, Ocean shipping;

Company Information

Ningbo WONSMART Co., Ltd. is a manufacturer focused on BLDC Motor in Ningbo city, China. Covering an area of 2000 square meters, we were founded by a group of men who are professional in this field. We mainly design, manufacture, and sell small DC brushless motors.
Our  CEO is good at "Western" &"Chinese style" management, regards "people" as the most important factor in the development of our enterprise, and believes that details decide the success or lose.We guarantees you that you only need to input an order, and it will output quality products.

Our Services

We are able to provide you SAMPLES and CUSTOMIZATION SERVICE. If you have any special requirements or demands,Please feel free to contact us. We are glad to offer you our best service!
