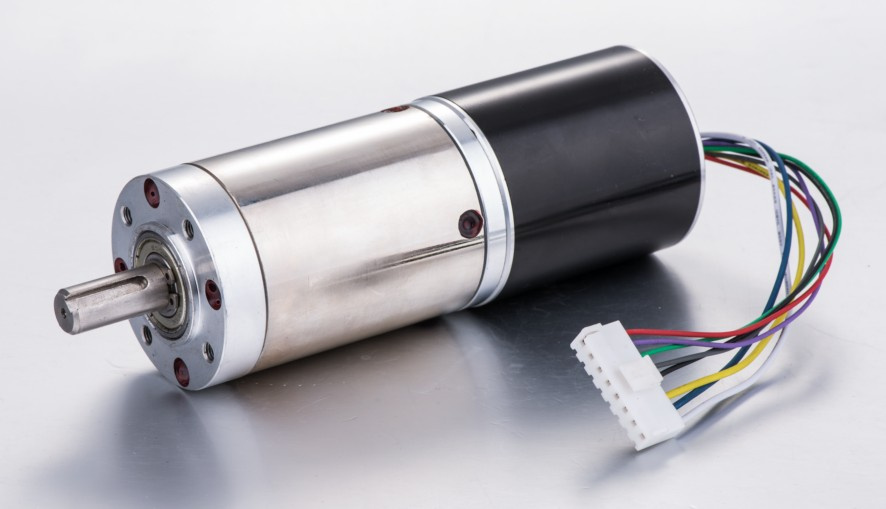

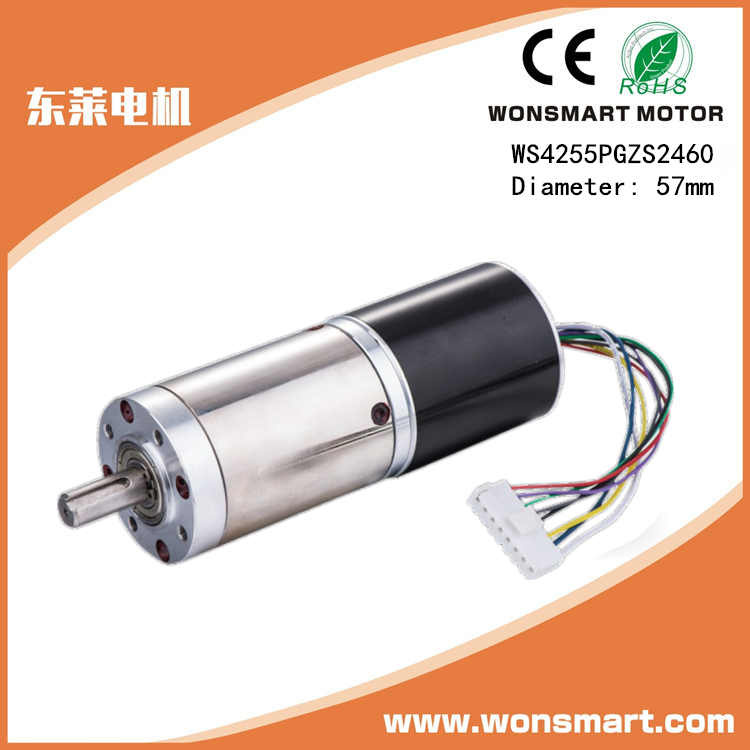

Planetary Electric Gear Motor DC Brushless Motor

Prod Model:	WS4255PGZS2460
Efficiency:	Ie 3
Planetary Gearbox Gear Material:	Steel
Motor Housing:	Aluminum
Protect Feature:	Drip-Proof
Voltage:	12V 24V 36V 48V
Torque:	0.48~29.34 N.M
Power:	63W
MOQ:	100PCS
Speed:	6000 Rpm
Bearing:	NMB Ball Bearing
Application:	Robet
Operating Speed:	High Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Other
Type:	Other
Certification:	Ce, RoHS

Product Description

Product Introduction:

NMB ball bearing guarantee long life;
Hobbing process for all steal Gears .
Low Noise and big torque.
Can Choose wonsmart External driver controller.
External driver controller can change speed by PWM or 0~5v signal and change shaft running direction from CW to CCW.
Mainly used onto medical equipment, conveyor, air cushion machine and many other auto machines;

Gearbox Motor Performance:


Part  No	Gear Ratio		1:3.6	1:4.2	1:13	1:18	1:47	1:64	1:77	1:168	1:198	1:256	1:326
WS4255PGZS2460 WS4255PGZS1260	rated torque	N.m	0.48	0.56	1.55	2.16	5.05	6.72	8.06	15.01	17.82	23.24	29.34
	Rated Speed	r/min	1111	952	307	222	85	62	52	24	20	15	12

Motor Performance:

Part No	Noload Speed (r/min)	Noload Current (A)	Rated Torque (N.m)	Rated Speed (r/min)	Rated Current (A)	Rated Output power (W)	Rated Input Power (W)
WS5765-24-50-V200	5000	0.4	0.15	4000	3.3	63	79
WS5765-12-50-V200	5000	0.8	0.15	4000	6.6	63	79

Gearbox performance:


Gear Ratio	Lenght (mm)	Weight (g)	Stage
1:3.6~4.2	49		1
1:13~1:18	61		2
1:47~1:77	73		3
1:168~1:326	84		4


Packaging & Shipping

Item:WS5745
Qty:32PCS
Gross WT:KGS
Net WT:KGS
Size:58X32X19.5CM

Payment&Delivery

Sample Payment preference:  paypal /  bank account;
Sample delivery time:  3-5 days;
Sample delivery method: Fedex, UPS, DHL;
Sample delivery cost: 20-45 USD for 1 kg;
Mass Production payment:  Bank account;
Mass production delivery time: 15-30 days;
Mass production delivery method:  Fedex, UPS, DHL, Ocean shipping;
