DC Current Transformer for Watthour Meter

Name: DC Current Transformer for Watthour Meter
Brand: all-electronics-online.com
SKU: 615548214
Availability: InStock
Rating: 4.8 (51 reviews)

Price:	US $ 0.6-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

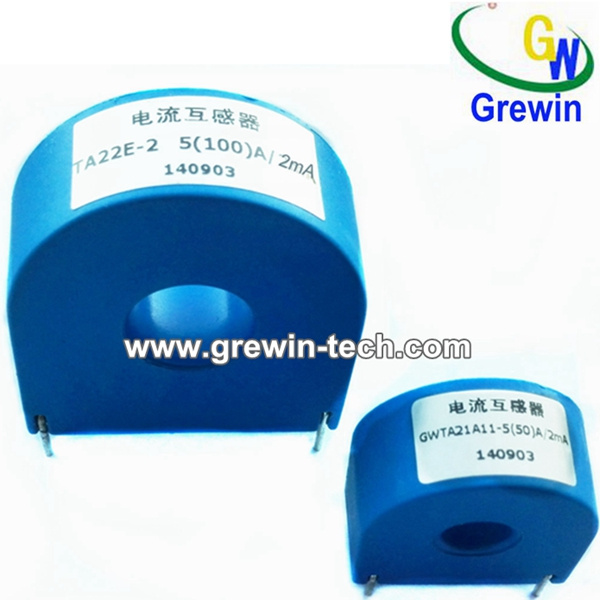

The GREWIN TAD series of current transformers for electronic watthour meters with DC-tolerance are designed for applications where AC current signals or half wave rectified DC current signals must be transformed accurately into a lower current signal appropriate for micro-processor based circuits. A new TA model can be designed and manufactured to meet the specific design challenges of the client's specific application. The following models are only a small sampling of the many different products which have been and are currently being manufactured.

Features
      Low cost
      More than 10 standard size
      Terminal: PCB Mounted or Lead
  Applications
      Electronic watthour meters according to IEC
62053 -21, -23 must have a tolerance to DC
   current
  Specifications
      Case Material: PBT Resin UL flame retardant
   rating 94-V0.
      Construction: Epoxy Encapsulated housing
      Highest Voltage for Equipment Um (rms): 720
      Vac
      Insulation Resistance: 1000 M Ohms @ 500
         Vdc
      Rated Power-Frequency Withstand Voltage (Up
     rms): 3,000 Vac (50 / 60 Hz, 1 min) Up max: 6 kV
     (1.2 μs / 50 μs - test pulse)
      Frequency Range: 50/60Hz.
      Operating Temperature:-40ºC to +70ºC
      Accuracy Class:Compliant IEC 60044-1 ,Class
         0.1,0.2
      RoHS complian
     CE-approved

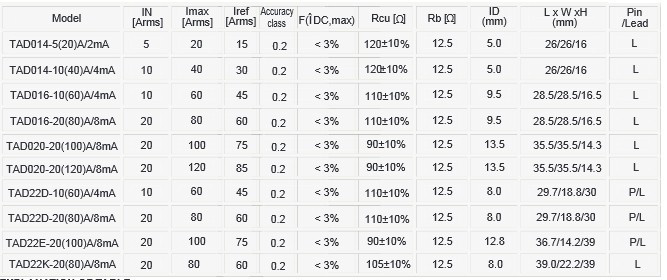

Performance:

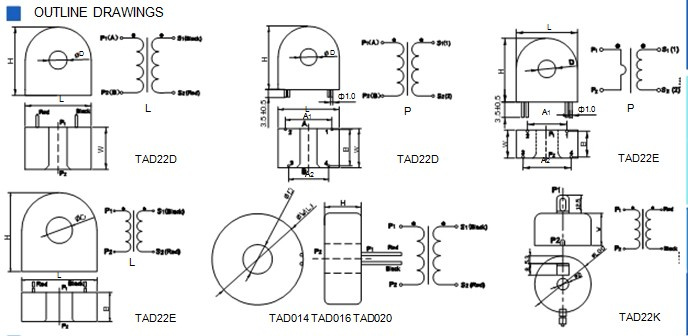

Denmision:

Victor
Tianjin Grewin Technology Co.,Ltd.
Web: http://grewin-tech.en.made-in-china.com or www.grewin-tech.com
TEL:86-22-84943756
FAX:86-22-85909471

Prod Model:	GWTAD014
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Shell Material:	PBT or ABS
Accuracy Class:	Class 0.2
Insulation Resistence:	1000 M Ohms @ 500VAC
Frequency Range:	50~400Hz
Highest Voltage:	720 VAC
Certification:	RoHS,Ce Compliant
Application:	Lighting
Type:	Current Transformer
Phase:	Single

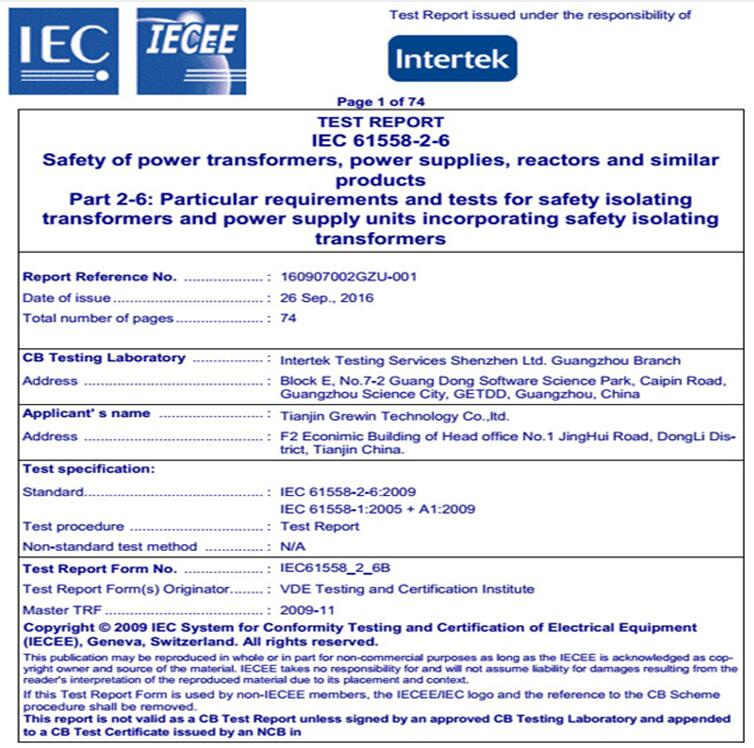

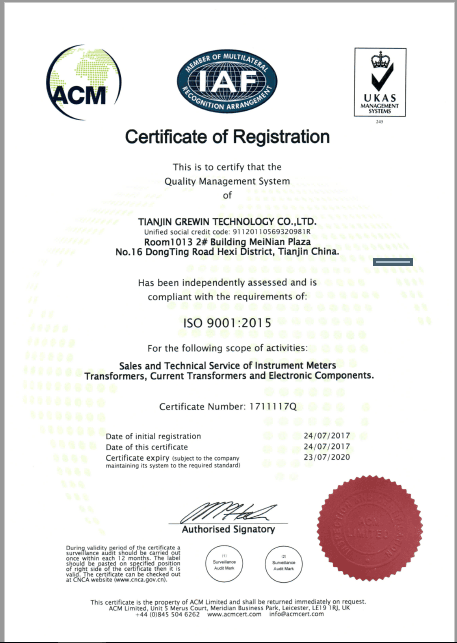

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
