DC Current / Voltage Transducer

Function & Feature
Transforms the measured AC current / voltage to a DC current / voltage output according to the linear scale.
Excellent temperature characteristic and good working stability, Configuration compactness and briefness

FUD-Type-Input-Power Supply-Output
Type	DI: DC Current Transducer DV: DC Voltage Transducer
DC Input	A1: 0~75mA, A2: 0~100mA, A3: 0~±75mV, A4: 0~±100mV, A5: 0~20mA, A6: 4~20mA, A7: 0~5A, A8: 0~15A, V0: 0~5V, V1: 0~30V, V2: 0~60V, V3: 0~300V, V4: 0~400V, V5: 0~450V, Vn: User define.
Power Supply	P1: AC110V±10%, P2: AC220V±15%, P3: AC110V~330V.
DC Output	O1: 0~5V, O2: 1~5V, O3: 0~20mA, O4: 4~20mA, O5: 1~3~5V, O6: 4~12~20mA.

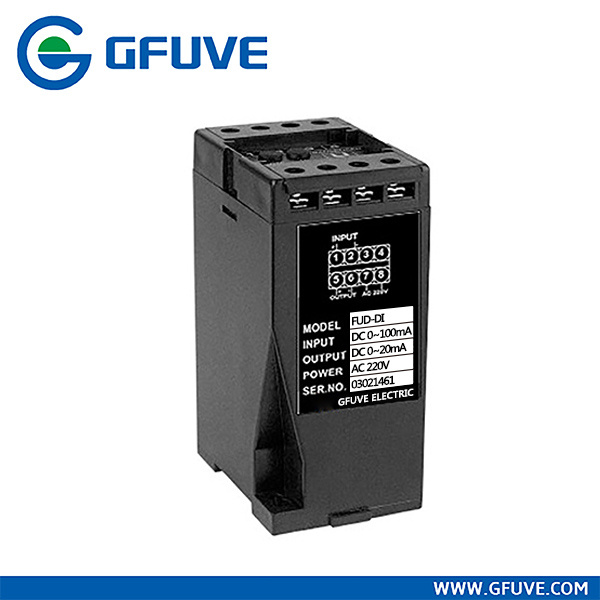

Example 1: FUD-DI-A2-P2-O4
FUD Series DC Current Transducer	Input: DC 0~100mA
	Power Supply: AC220V±15%
	Output: DC4~20mA

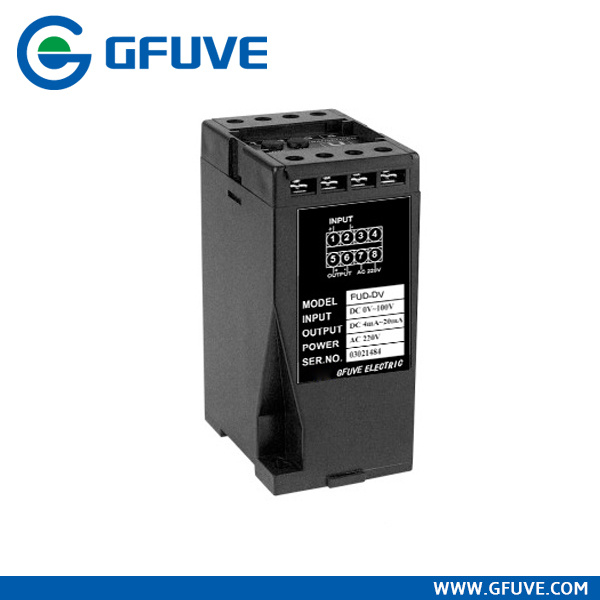

Example 2: FUD-DV-V3-P2-O4
Details: FUD Series DC Voltage Transducer	Input: DC 0~300V
	Power Supply: AC220V±15%
	Output: DC4~20mA
Please check the Type, Input range, Output range and Power supply at your order.

Technical Index

Standard	QB/441600 17 079-2001
Accuracy	0.2%, 0.5%
Consumption	≤3VA
Accutacy drift	Annual Variation < 0.2%
Insulation Voltage	AC 2kV/min.1mA (Between Input ~ Output / Power)
Insulation Resistance	≥20MΩ (DC500V)
Surge voltage	5KV (Peak Value), 1.2/50μs
Response Time	≤350ms
Input Range	DC 0~10A ,DC 0~500V(Optional)
Absorbed Power	≤0.1VA
Overload	Current: 2 times continuous,20 times /1s .Voltage: 2 times continuous
Load Resistance	Current output: RL≤600Ω Voltage output: RL≥2kΩ
Working environment	Temperature: -10~50 RH: 20~90%, Without condensation
Storage conditions	Temperature: -40~70 RH: 20~95%, Without condensation
Installation	35mm DIN Sliding-way or M3 screws
Dimension	55mm×75mm×120mm

Prod Model:	FUD-DI-DU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Range:	DC 0-10A, DC 0-500V(Optional)
Temperature:	-10 to +50 Degree
Dimension:	55mm×75mm×120mm
Accuracy:	0.2%, 0.5%
DC Output Range:	0-5V, 4-20mA
