DC-DC Converters Inductor 100uh, Rated Current: 1.9A, DC Resistance: 77mohm
| Price: |
US $ 0.10-0.15/Piece |
| Min Order: |
20000/Piece |
| Pay Type: |
T/T |
FEATURES:1, Low profile,low RDC, high current handing capacities
2, Magnetically shielded structure that ensures the high-density mounting configurations
3, Flat bottom surfaces ensures secure, reliable mounting
4, Provided in embossed carrier tape packaging for use with automatic mounting machines
Ideally used in Portable telephones, PDA, DSC, DC-DC Converters, etc
Product Identification
MNR 8040 - 101 M C
A B C D E
A Series name

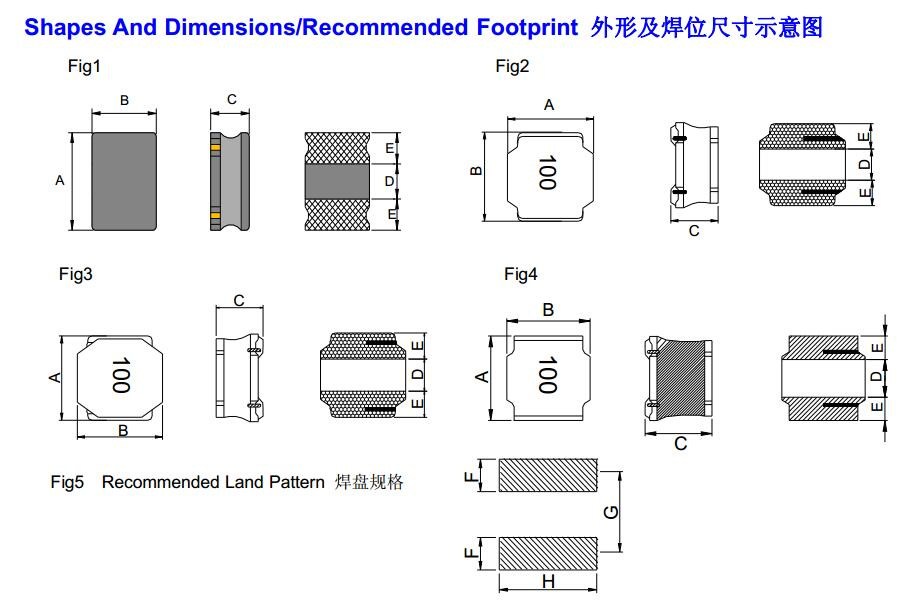

B Product dimensions (8040=8.0*8.0*4.0mm)
C Inductance Value (101=100μH)
D Inductance Tolerance: M:20%;N:30%
E Tape Packing
| MNR8040 Series |
| CHB | Inductance | Percent | L Test | DC
Resistance | Rated
Current | Rated
Current | Marking |
| P/N | L(µ H) | Tolerance | Frequency | DCR (mΩ) | Isat(A) | Irms(A) |
| MNR8040-R82NC | 0.82 | ±30% | 100KHz,1.0V | 8.0±30% | 13.80A | 6.30A | R82 |
| MNR8040-0R9NC | 0.90 | ±30% | 100KHz,1.0V | 6.0±30% | 11.00A | 7.80A | 0R9 |
| MNR8040-1R0NC | 1.00 | ±30% | 100KHz,1.0V | 6.5±30% | 10.00A | 7.40A | 1R0 |
| MNR8040-1R4NC | 1.40 | ±30% | 100KHz,1.0V | 7.0±30% | 9.00A | 7.00A | 1R4 |
| MNR8040-1R5NC | 1.50 | ±30% | 100KHz,1.0V | 10.0±30% | 8.15A | 5.65A | 1R5 |
| MNR8040-2R0NC | 2.00 | ±30% | 100KHz,1.0V | 9.0±30% | 7.40A | 6.30A | 2R0 |
| MNR8040-2R2NC | 2.20 | ±30% | 100KHz,1.0V | 9.0±30% | 7.10A | 6.00A | 2R2 |
| MNR8040-3R0NC | 3.00 | ±30% | 100KHz,1.0V | 14.0±30% | 6.10A | 4.70A | 3R0 |
| MNR8040-3R3NC | 3.30 | ±30% | 100KHz,1.0V | 15.0±30% | 5.50A | 4.90A | 3R3 |
| MNR8040-3R6NC | 3.60 | ±30% | 100KHz,1.0V | 15.0±30% | 5.30A | 4.90A | 3R6 |
| MNR8040-3R8NC | 3.80 | ±30% | 100KHz,1.0V | 17.0±30% | 5.00A | 4.50A | 3R8 |
| MNR8040-3R9NC | 3.90 | ±30% | 100KHz,1.0V | 17.0±30% | 5.75A | 4.35A | 3R9 |
| MNR8040-4R7NC | 4.70 | ±30% | 100KHz,1.0V | 18.0±30% | 4.70A | 4.10A | 4R7 |
| MNR8040-4R7MC | 4.70 | ±20% | 100KHz,1.0V | 18.0±30% | 4.70A | 4.10A | 4R7 |
| MNR8040-5R1NC | 5.10 | ±30% | 100KHz,1.0V | 19.0±30% | 4.70A | 4.05A | 5R1 |
| MNR8040-5R6NC | 5.60 | ±30% | 100KHz,1.0V | 21.0±30% | 6.00A | 3.85A | 5R6 |
| MNR8040-6R2NC | 6.20 | ±30% | 100KHz,1.0V | 21.0±30% | 4.45A | 3.85A | 6R2 |
| MNR8040-6R8NC | 6.80 | ±30% | 100KHz,1.0V | 25.0±30% | 4.00A | 3.70A | 6R8 |
| MNR8040-6R8MC | 6.80 | ±20% | 100KHz,1.0V | 25.0±30% | 4.00A | 3.70A | 6R8 |
| MNR8040-8R2MC | 8.20 | ±20% | 100KHz,1.0V | 26.0±30% | 4.20A | 3.45A | 8R2 |
| MNR8040-100MC | 10.00 | ±20% | 100KHz,1.0V | 34.0±30% | 3.40A | 3.10A | 100 |
| MNR8040-150MC | 15.00 | ±20% | 100KHz,1.0V | 50.0±30% | 2.70A | 2.40A | 150 |
| MNR8040-180MC | 18.00 | ±20% | 100KHz,1.0V | 53.0±30% | 2.70A | 2.40A | 180 |
| MNR8040-220MC | 22.00 | ±20% | 100KHz,1.0V | 66.0±30% | 2.20A | 2.20A | 220 |
| MNR8040-270MC | 27.00 | ±20% | 100KHz,1.0V | 78.0±30% | 2.15A | 2.00A | 270 |
| MNR8040-330MC | 33.00 | ±20% | 100KHz,1.0V | 100.0±30% | 1.90A | 1.70A | 330 |
| MNR8040-360MC | 36.00 | ±20% | 100KHz,1.0V | 102.0±30% | 2.00A | 1.75A | 360 |
| MNR8040-390MC | 39.00 | ±20% | 100KHz,1.0V | 107.0±30% | 1.95A | 1.70A | 390 |
| MNR8040-430MC | 43.00 | ±20% | 100KHz,1.0V | 113.0±30% | 1.90A | 1.65A | 430 |
| MNR8040-470MC | 47.00 | ±20% | 100KHz,1.0V | 150.0±30% | 1.50A | 1.40A | 470 |
| MNR8040-510MC | 51.00 | ±20% | 100KHz,1.0V | 142.0±30% | 1.70A | 1.50A | 510 |
| MNR8040-560MC | 56.00 | ±20% | 100KHz,1.0V | 148.0±30% | 1.55A | 1.45A | 560 |
| MNR8040-620MC | 62.00 | ±20% | 100KHz,1.0V | 182.0±30% | 1.50A | 1.30A | 620 |
| MNR8040-680MC | 68.00 | ±20% | 100KHz,1.0V | 230.0±30% | 1.20A | 1.10A | 680 |
| MNR8040-750MC | 75.00 | ±20% | 100KHz,1.0V | 211.0±30% | 1.35A | 1.20A | 750 |
| MNR8040-820MC | 82.00 | ±20% | 100KHz,1.0V | 225.0±30% | 1.30A | 1.15A | 820 |
| MNR8040-910MC | 91.00 | ±20% | 100KHz,1.0V | 272.0±30% | 1.20A | 1.05A | 910 |
| MNR8040-101MC | 100.00 | ±20% | 100KHz,1.0V | 290.0±30% | 1.00A | 1.00A | 101 |
| MNR8040-121MC | 120.00 | ±20% | 100KHz,1.0V | 334.0±30% | 1.05A | 0.95A | 121 |
| MNR8040-151MC | 150.00 | ±20% | 100KHz,1.0V | 410.0±30% | 1.10A | 0.85A | 151 |
| MNR8040-221MC | 220.00 | ±20% | 100KHz,1.0V | 299.0±30% | 0.85A | 0.80A | 221 |
| MNR8040-331MC | 330.00 | ±20% | 100KHz,1.0V | 889.0±30% | 0.68A | 0.64A | 331 |
Isat: Direct current at which the inductance drops approximate 30% from its value without current.
Irms: Direct current when the temperature of the product rise(ΔT=40ºC) from 20ºC ambient. |
PACKAGING QTY.| Series | Qty per Reel | Reel Size | Reel Box | Outer Box |
| MNR252010A | 2000PCS | 7Inch*8width | 10000PCS(187*187*77mm) | 50000PCS(400*205*205mm) |
| MNR252012A | 2000PCS | 7Inch*8width | 10000PCS(187*187*77mm) | 50000PCS(400*205*205mm) |
| MNR202610 | 2000PCS | 7Inch*8width | 10000PCS(187*187*77mm) | 50000PCS(400*205*205mm) |
| MNR3010 | 2000PCS | 7Inch*8width | 10000PCS(187*187*77mm) | 50000PCS(400*205*205mm) |
| MNR3012 | 2000PCS | 7Inch*8width | 10000PCS(187*187*77mm) | 50000PCS(400*205*205mm) |
| MNR3015 | 2000PCS | 7Inch*8width | 10000PCS(187*187*77mm) | 50000PCS(400*205*205mm) |
| MNR4012 | 4500PCS | 13Inch*12width | 18000PCS(340*340*75mm) | 54000PCS(358*358*250mm) |
| MNR4018 | 3000PCS | 13Inch*12width | 12000PCS(340*340*75mm) | 36000PCS(358*358*250mm) |
| MNR4030 | 2000PCS | 13Inch*12width | 8000PCS(340*340*75mm) | 24000PCS(358*358*250mm) |
| MNR5012 | 4500PCS | 13Inch*12width | 18000PCS(340*340*75mm) | 54000PCS(358*358*250mm) |
| MNR5020 | 2500PCS | 13Inch*12width | 10000PCS(340*340*75mm) | 30000PCS(358*358*250mm) |
| MNR5040 | 1500PCS | 13Inch*16width | 4500PCS(340*340*75mm) | 13500PCS(358*358*250mm) |
| MNR6020 | 2500PCS | 13Inch*16width | 7500PCS(340*340*75mm) | 22500PCS(358*358*250mm) |
| MNR6028 | 2000PCS | 13Inch*16width | 6000PCS(340*340*75mm) | 18000PCS(358*358*250mm) |
| MNR6045 | 1500PCS | 13Inch*16width | 4500PCS(340*340*75mm) | 13500PCS(358*358*250mm) |
| MNR8040 | 1000PCS | 13Inch*16width | 3000PCS(340*340*75mm) | 9000PCS(358*358*250mm) |
| Prod Model: |
MNR8040-101MC |
| Type: |
DC-DC Converters |
| Structure: |
DC-DC Converters |
| Nature Of Operation: |
DC-DC Converters |
| Brand: |
Chb or ODM |
