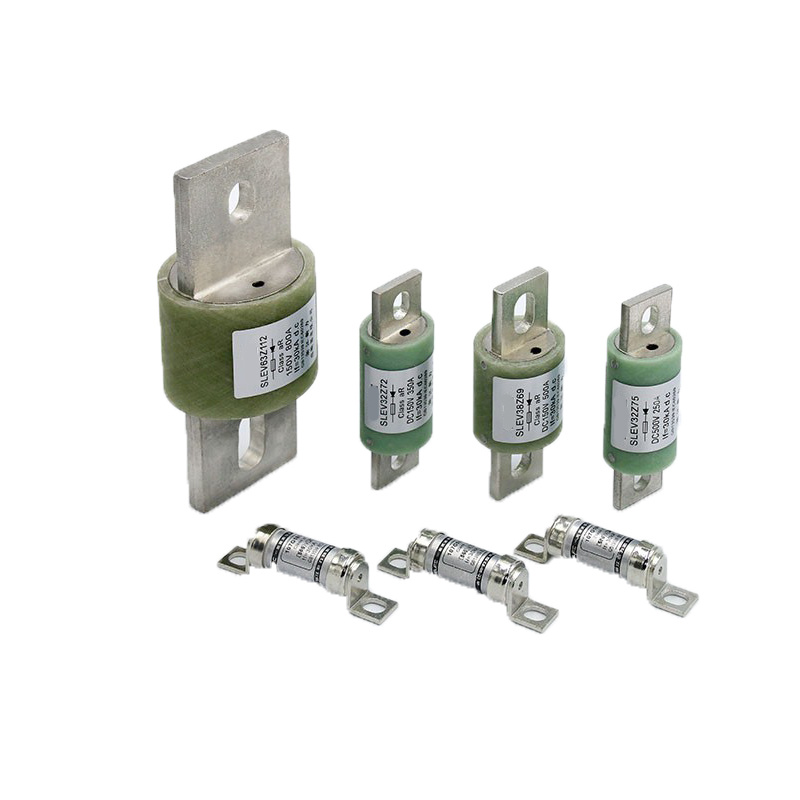

DC Electric Car Fuse Slev-700V

Name: DC Electric Car Fuse Slev-700V
Brand: all-electronics-online.com
SKU: 835390315
Availability: InStock
Rating: 4.9 (85 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1.Application:

This series fuse is suitable for rated DC voltage to 700V, rated current to 1200A,as a comprehensive protection for vehicle battery,vehicle wiring system and inverter,and the rated breaking capacity is up to 30KA.They conform to national standard GB13539,IEC60269 and related standards of international electric vehicle industry.

2.Normal operating conditions

The ambient air temperature is between -40ºC and 75ºC,the installation site altitude not exceed 3500m,relative humidity not exceed 90%.

3.Use category

"gR" means the full range breaking capacity of fast DC fuse.

4.Structural fratures

The variable cross-section fuse body made by pure copper piece is sealed in the fusion tube which is made by the high stren gth porcelain, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The
two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shapes structure.

5.Fusing time & Test current

NO	Teat current(A)	Fusing time(s)
		In<60A		In≥60A
		Min.	Max.	Min.	Max.
1	1.0In	When the fuse-links are tested according to 1In,the temperature rising values of the fuse-linksshall not exceed 50 deg.
2	1.1In	14400	∞	14400	∞
3	2.0In	0.5	100	1	300
4	3.0In	0.1	15	0.2	30
5	5.0In	0.05	1.0	0.05	1.0

6.Main technical data

6.4 Rated Voltage 700V

Chart 7

Fuse model

Rated vltage

(V)

Rated current

(A)

overall dimension/size

drawing NO.

SLEV18B63

700

2-63

77.5

16.5

47.5

9.5

Drawing 8

Chart 8

Fuse model	Rated vltage (V)	Rated current (A)	overall dimension/size
Fuse model	Rated vltage (V)	Rated current (A)	drawing NO.	A	B	C	D	E	F	G	H	J
SLEV25Z92	700	63-125	9	111	25	72	95.5	88.5	8.5	19	5	12
SLEV32Z95	700	125-200	9	113	32	72	96.5	89.5	8.5	24	5	12
SLEV38Z100	700	200-300	9	128	38	72	107.5	92.5	10.5	26	6	18
SLEV51Z102	700	300-500	9	130	51	72	109.5	94.5	10.5	38	6	18
SLEV63Z134	700	500-630	9	174	63	72	139.5	128.5	12.5	51	10	18
SLEV75Z128	700	630-800	9	172	75	52	133	123	13	60	10	18
207B89Z142	700	800-1000	10	Dimensions in Drawing 10
SLEV108Z174	700	1000-1200	11	Dimensions in Drawing 11

Prod Model:	SLEV-700V
Voltage:	700V
Current:	4-160A
Use:	Car
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
