DC-Link Filter Capacitors
| Price: |
US $ 20/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

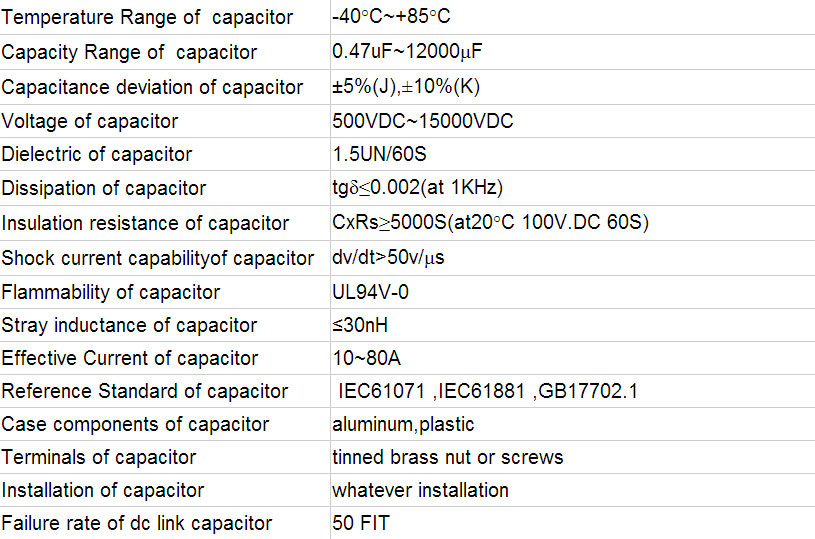

Dc-link capacitor technical-data:
Dc-link capacitor features:
Features:
Non-inductive construction;
Excellent self-healing performance;
Small equivalent series resistance;
High stability and long product life;
Excellent over-current and over-voltage capability;
Very small dissipation factor and bear the huge ripple current;
Dry capacitor structure, no liquid material, non-toxic, no leakage and environmentally friendly;
Certificated by ISO9001, CE, ROHS, and SGS etc.

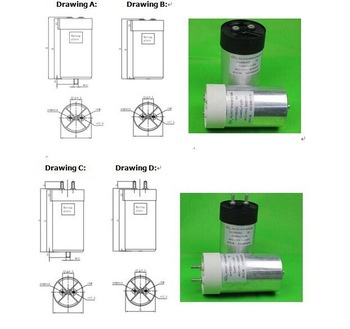

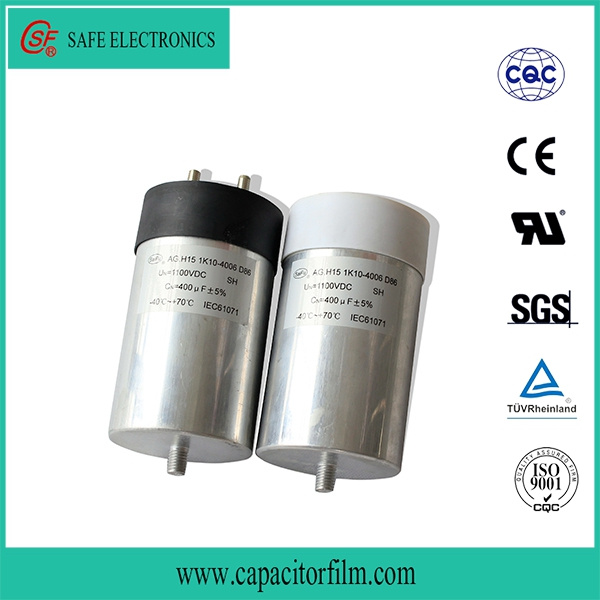

Dc-link capacitor Product show:
Structure:
Using own patented technology, polypropylene film dielectric vacuum deposition of metal electrodes, cut by the automatic winding device manufacturers, application no sense winding technology, It uses of copper-core inside the inverter spot welding, special spraying techniques, Molded natural resistance or metal enclosure, epoxy potting, large brass nut, tinned copper wire or end plates leads, so that the capacitor's characteristics are large power, high temperature resistance, long product life, safe and effective series resistance, inductance small, over-current, over-voltage capability, able to withstand greater ripple current and has a self-healing etc.
Dc-link capacitor product package:
Dc-link capacitor applications:
Our own company's proprietary technology improves product life and its safety for DC filter circuit,it can replace electrolytic capacitors, longer product life, widely used in the frequency converter, SVG, UPS, electric vehicles, hybrid vehicles, electroplating power supply, inverter welding machine, power inverter, induction heating equipment, high-frequency switching power supply, elevator motor drives, solar power, wind power and other industries power converter circuit design.

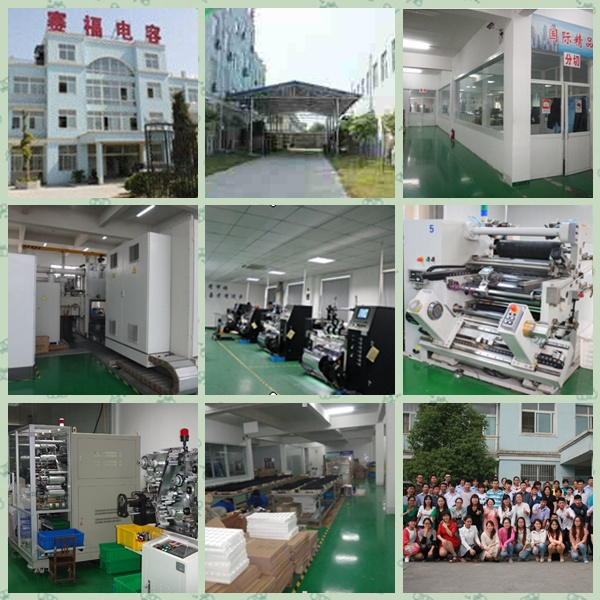

Our factory:

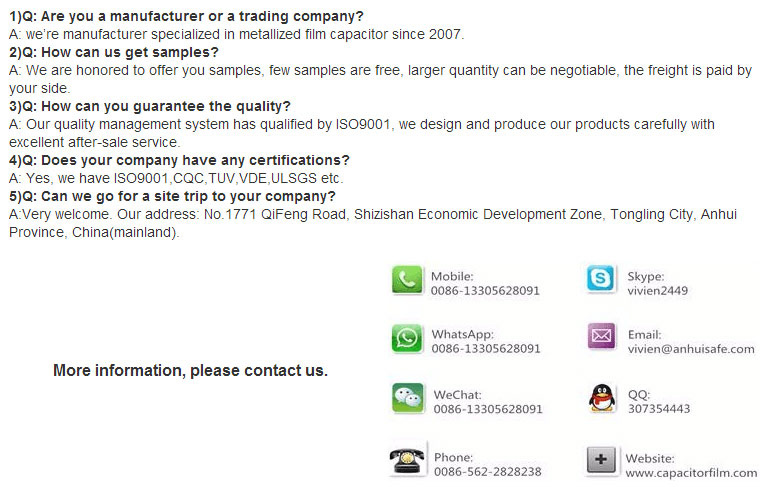

FAQ:
Certification:
More information you can visite our website: www.capacitorfilm.com or www.anhuisafe.com
| Prod Model: |
dc-link |
| Rated Voltage: |
500VDC~15000VDC |
| Operating Temperature: |
-40°c~+85°c |
| Capacitor Deviation: |
±5% ±10% |
| Capacitor Case: |
Aluminum/Plastic/304 Stainless Steel |
| Capacitor Standards: |
IEC61071;IEC61881 |
| Type: |
Polypropylene Capacitor |
| Application: |
Wind Power |
| Package Type: |
Through Hole |
| Capacitance: |
0.47UF~12000UF |
| Manufacturing Material: |
Polypropylene Film |
| Electrolyte: |
Polypropylene |
| Usage: |
Wind Power |
