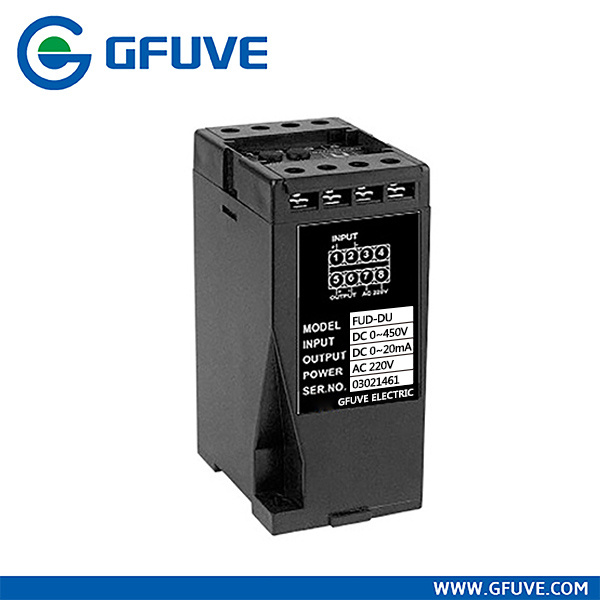

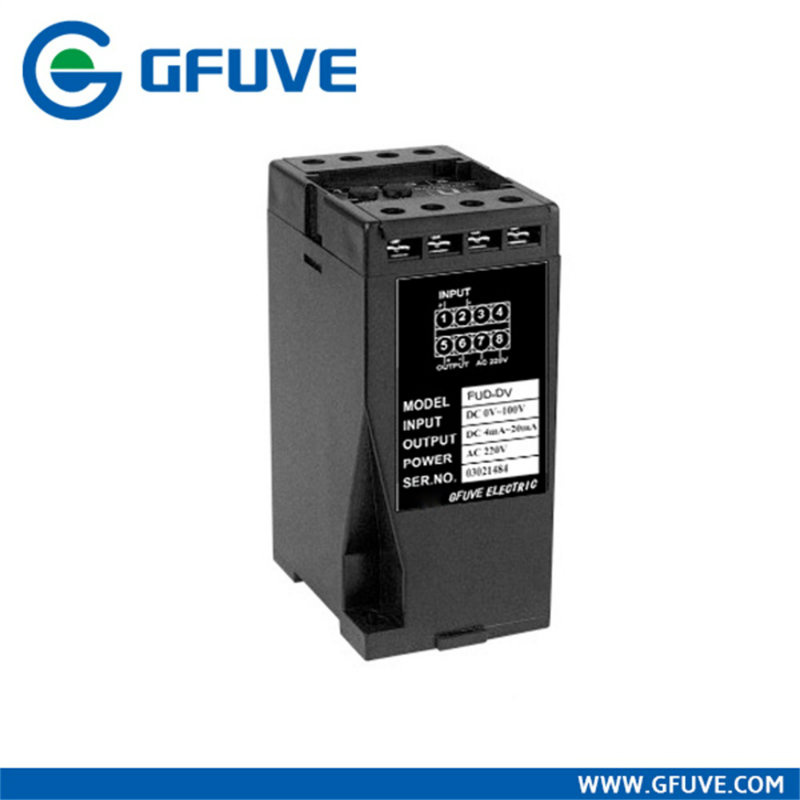

DC Voltage Transducer

Name: DC Voltage Transducer
Brand: all-electronics-online.com
SKU: 688729782
Availability: InStock
Rating: 4.6 (117 reviews)

Price:	Negotiable/Piece
Trade Terms:	FCA,EXW
Min Order:	3/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

DC Current / Voltage Transducer

Function & Feature
Transforms the measured AC current / voltage to a DC current / voltage output according to the linear scale.
Excellent temperature characteristic and good working stability, Configuration compactness and briefness
Model Description

FUD-Type-Input-Power Supply-Output
TypeDI: DC Current Transducer
DV: DC Voltage Transducer
DC InputA1: 0~75mA, A2: 0~100mA, A3: 0~± 75mV,
A4: 0~± 100mV, A5: 0~20mA, A6: 4~20mA,
A7: 0~5A, A8: 0~15A, V0: 0~5V, V1: 0~30V,
V2: 0~60V, V3: 0~300V, V4: 0~400V,
V5: 0~450V, Vn: User define.
Power SupplyP1: AC110V± 10%, P2: AC220V± 15%,
P3: AC110V~330V.
DC OutputO1: 0~5V, O2: 1~5V, O3: 0~20mA, O4: 4~20mA,
O5: 1~3~5V, O6: 4~12~20mA.
Example 1: FUD-DI-A2-P2-O4
FUD Series DC Current TransducerInput: DC 0~100mA
Power Supply: AC220V± 15%
Output: DC4~20mA
Power Supply: AC220V± 15%
Output: DC4~20mA
Technical Index

StandardQB/441600 17 079-2001
Accuracy0.2%, 0.5%
Consumption≤ 3VA
Accutacy driftAnnual Variation < 0.2%
Insulation Resistance≥ 20MΩ (DC500V)
Response Time≤ 350ms
Input RangeDC 0~10A, DC 0~500V(Optional)
Absorbed Power≤ 0.1VA
OverloadCurrent: 2 times continuous, 20 times /1s. Voltage: 2 times continuous
Installation35mm DIN Sliding-way or M3 screws
Dimension55mm× 75mm× 120mm

Prod Model:	FUD-DU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hot Searching:	DC Current Transducer
Input Range:	DC 0~10A, DC 0~500V(Optional)
Power Supply:	110V--330V
Output Range:	0-5V, 0-20mA
Accuracy:	0.2%, 0.5%
Response Time:	≤350ms
Accutacy Drift:	Annual Variation < 0.2%
Installation:	35mm DIN Sliding-Way or M4 Screws
