Prod Model: |
KL-CLKZ02G |
Operation: |
Manual + Remote |
Operating Frequency: |
315/433.92MHz / Customized |
Modulation Way: |
Ask/Ook |
Receiver Sensitivity: |
-95dBm |
Encoding Type: |
Learning Code EV1527 |
Output Way: |
Output Power (Make Motor Forward and Reverse) |
Channel: |
2 |
Weight: |
170g |
Type: |
Electronic |

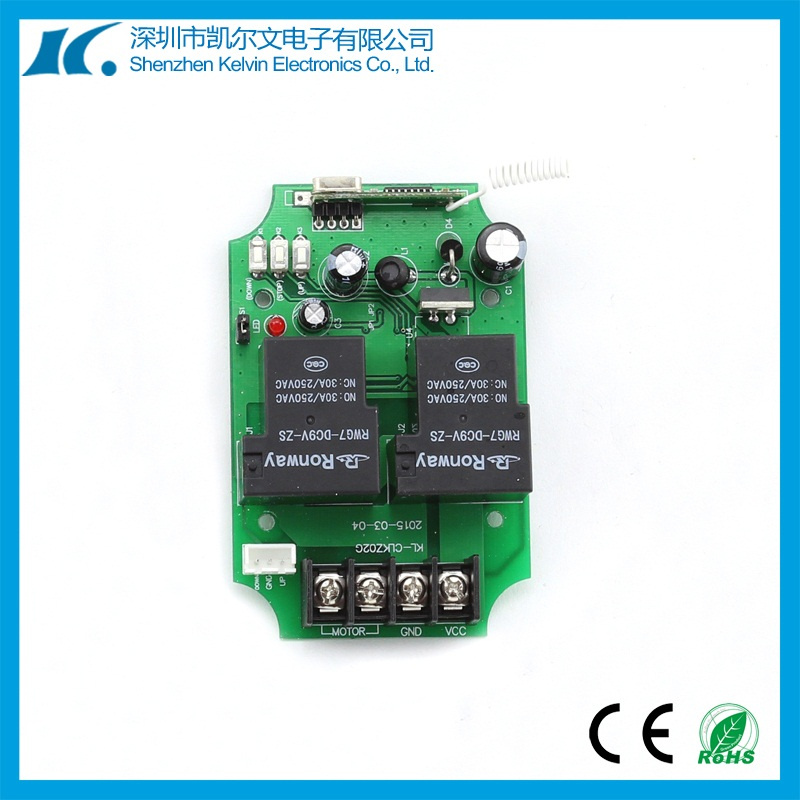

Product Description
DC12-48V RF Remote Motor Controller for Forward & ReverseThe product is one of wireless remote controller which work with high directly current, pressing button "UP, STOP, DOWN" on the remote control to make motor forwards, stop, reverse. When motor run the right position, it will trigger limit switch and stop immediately, it supports 30A of momentary current and 20A of continuous current. It is widely used in controlling curtain, electronically gate/window etc.
Technology data
Model | KL-CLKZ02G |
Name | Remote Motor Controller |
Operating voltage | DC 10.5V-40V |
Quiescent current | 10-30mA |
Max load | 20A |
Frequency | 315MHz / 433MHz, optional |
Receiving sensitivity | -103dBm |
Coding Type | Rolling Code |
Size | 92*60*24mm(without case) |
Description of the learning buttons
K1: Motor Reverse
K2: Stop
K3: Motor Forward
How to add/delete remote controls
- Match Code: Press the learning button K1 momentarily on the PCB, LED indicator flashes once, then press the UP/DOWN key of remote control. If the LED blinks 3 times, it means learning successfully. Repeat above procedure to DOWN/UP and STOP.
- If need to add more remote controls, just repeat step 1. Each button stores maximum 7 groups of different address code.
- Delete Code: Hold the learning button for over 3 seconds until LED indicator from on to off, then release finger, delete successfully.
Additional function:1. Working Mode Change:Jumper on S1: Latching (Press Up, Motor goes up; Press Stop, Motor Stops; Press Down, Motor goes down.)No jumpers on S1: Momentary Mode (Press and hold Up, Motor goes up; Release, Motor stops.)2. 120s Time delay OFF:Jumper on the holder, function enabled; (In this mode, the motor will go up/down maximum 120s then stop automatically, no matter whichever the working mode is.)No jumpers on the holder, function disabled. 3. 3-Pin Manual Switch:Connect UP to GND, motor goes up. Connect DOWN to GND, motor goes down.Manual switch has the highest priority.

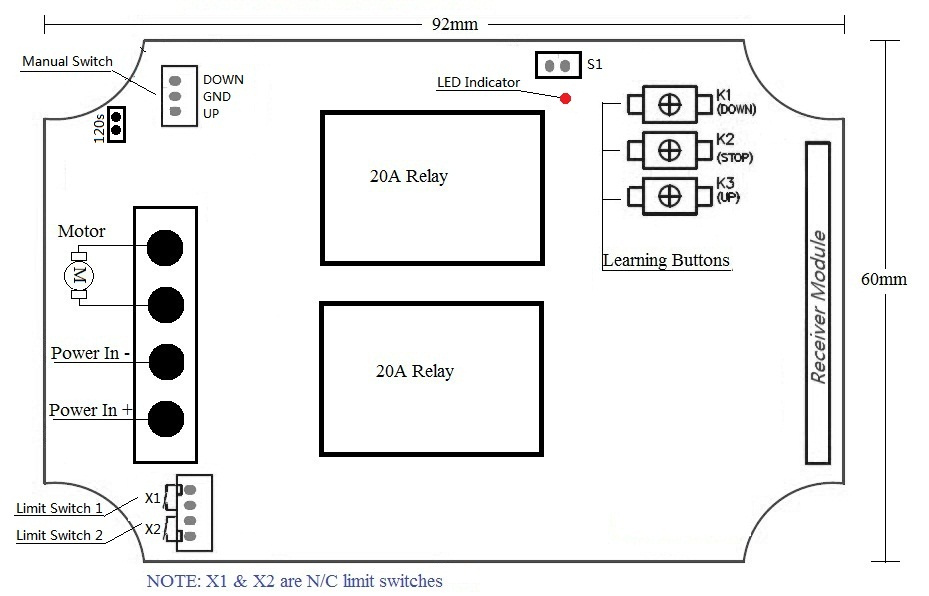

Diagram:
Shipping
1) Express: DHL, FedEx, UPS, TNT, EMS, etc.
2) By air
3) By sea
4) By special line
Depends on buyer's requirement.
