DC12V Wireless Copy Fixed Code Remote Control Kl180c-4k

Product Description

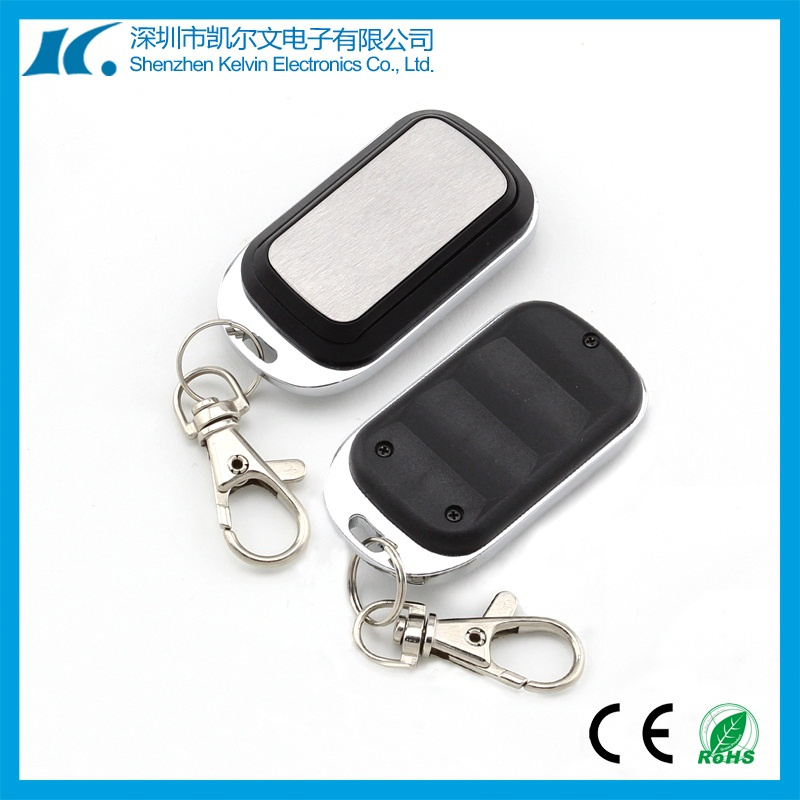

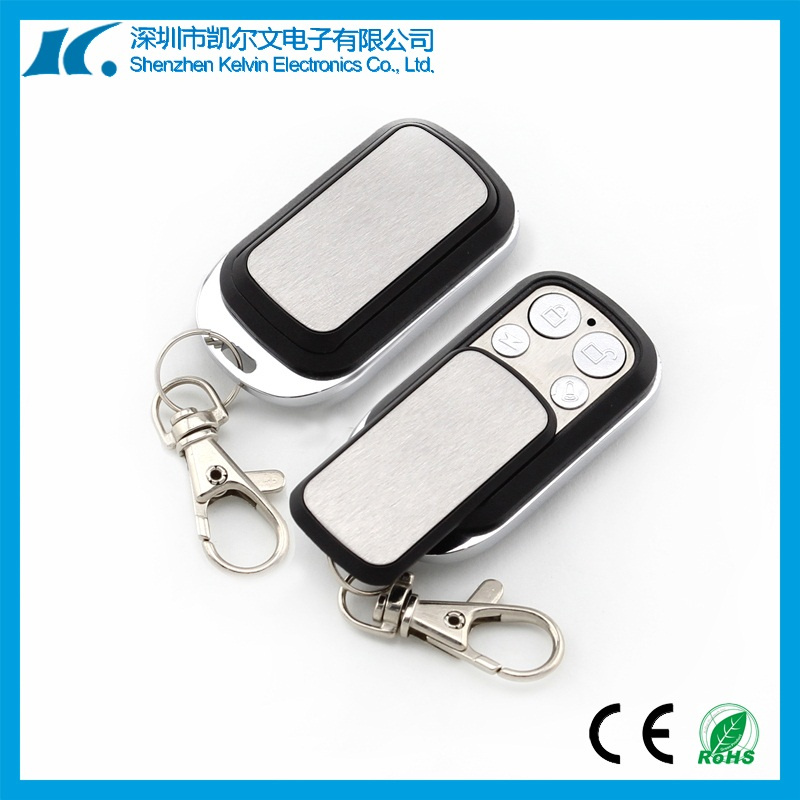

DC12V Wireless Copy Fixed code Remote Control Kl180c-4k

1.Description

Shenzhen Kelvin 4-Channel Universal RF Remote Control Duplicator suitable for cars, gates, garage door openers, barriers, home security systems, etc.

This gadget operates at 433.92MHz frequency (IMPORTANT: leave us a message along with order if you want 315MHz or other frequency), capable of copying most fixed code or learning code RF remote controls face to face, so you will always have a backup remote control.

Please note that the frequency band 286MHz to 400MHz can't be used in the EU, which means you're likely to use a 433.92MHz / 418MHz / 868MHz remote control if you are in the EU.

2.Specification

Size and weight

• Prevents loss and replaces your old remote controls
• Self learning remote control
• Used in car alarms, home alarms, panic buttons, garage doors, rolling curtains and more
• Copies most radio frequency fixed code remote controls
• Learning face to face in secon

• PT2240 / PT2242
• 2260 / 2262 / 2264
• EV1527 / FP527
• HT12D / HT12E
• HT600 / HT640 / HT680
• HT6010 / HT6012 / HT6013 / HT6014 / HT6207
• AX5026-1 / AX5026-2 / AX5026-3 / AX5026-4
• AX5326-3 / AX5326-4
• SMC918 / MC145026

NOTICE: Please check your existing remote control with our compatibility list before ordering.

4.Methods of operation

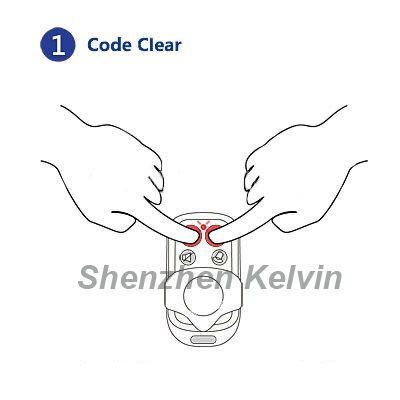

1, Clear out code:

To Clear up test stored rf signal memory from factory by pressing the locking key and unlock the key at the same time, two seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. Indicates that the remote control codes stored has been cleared out.

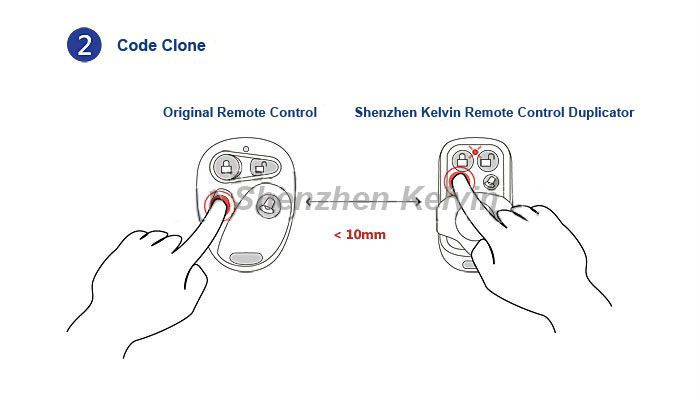

2, Duplicating (learning)

 Hands are holding remote control , and the other are holding the duplicating remote control, 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A',B-B') three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that this copy of the remote control buttons are same as copied on the remote control button codes . Several other keys are also according to the above approach to learning.

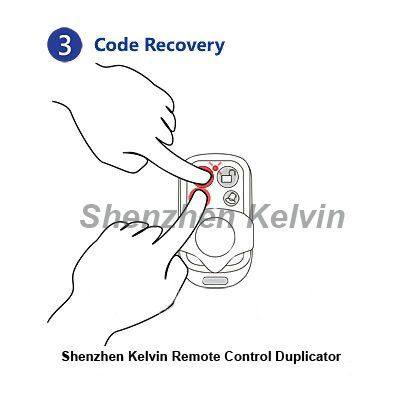

3, Recovery code

 If the code copied have been mistakenly removed the remote control, you do not worry, the remote control can restore yourself. Method is pressing (up-down eg: locking key and bell key) two buttons (metal shell remote control on the left, the plastic shell remote control on the right) at the same time ,3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.



The other way, you can delete all and relearn them again.


5. Shipping

1) Express: DHL, FedEx, UPS, TNT, EMS, etc.

2) By air

3) By sea

4) By special line

Depends on buyer's requirement.

6.FAQ

1) What is your warranty period?

Generally, we provide 1 year warranty for all our products unless otherwise mentioned. (Some are 2 years.)

For DOA (Defective On Arrival) items, which will be replaced or refund, please inform us within 3 days of arrival, please also keep all components and original packaging as further checking maybe required, faulty items must be returned for repair or exchange.

2) If i don't know how to use the products, what can i do?

Pls contact us whenever you need our help, even we are not online.

You can write email to us, or contact us byTrademanager, Skype, and other IM tools.

We are all very glad to answer your questions.

3) What certifications do you have?

Most of our products are approved with CE certification, some are with FCC.

If you have any other requriements with certifications, we also would like to help you.

7. Our Service

1. Accept OEM, ODM &silk-screen printing you logo on the shell.

2. Response in 10 hours.

3. Experienced R&D staff.

4. Professional SMT equipments.

5. Accept payment via T/T, Paypal, Western Union, Escrow, and so on.

6. Delivery by DHL,UPS,EMS or by sea as your requirments.

8. For order

1).Accept OEM.

2).Print logo on the case and pakage

3).Payment Details :30% deposite,70% balance before shipment. Payment accept T/T, Western union, PayPal, optional)

4).Minimum Order:100 pcs (accept trial order)

5).Delivery Details: within 3-5 days depends on order quantity.
