Guangzhou CBB Battery Technology Co., Ltd. >> Deep Cycle Gel Battery for Photovoltaic & Wind System-Npcg100-12-12V100ah

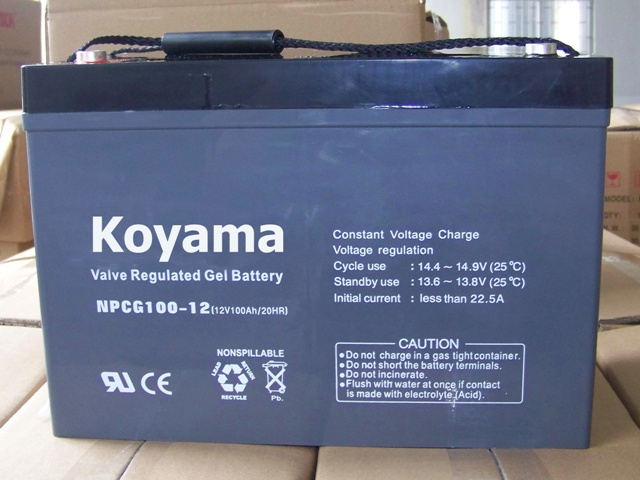

Deep Cycle Gel Battery for Photovoltaic & Wind System-Npcg100-12-12V100ah

Deep Cycle Gel Battery for Photovoltaic & Wind System-Npcg100-12-12V100ah
Price: US $ 116/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: NPCG100-12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cycle Life: Very Long
Type: Lead-Acid Batteries
Usage: Electric Bicycle
Nominal Voltage: 12V
Discharge Rate: Low Discharge Rate
Shape: Square Battery
Rechargeable: Chargeable

Product Description

Deep cycle battery
Gel battery
Solar battery
Storage battery
Lead acid battery

Gel Batteries for Deep Cycle Services

Deep-Cycle Gel(DCG)batteries are maintenance free and require no watering, while providing
With the unmatched quality and power of advanced deep cycle technology. Koyama Battery offers a complete
Portfolio of Deep-Cycle Gel(DCG)products, featuring these benefits: Long-lasting runtime and battery life
In the most demanding of applications; Proprietary Gel formulation prevents stratification;
Superior engineering offers exceptional durability.

Features

The success of DCG batteries comes from the internationally superior Gel technology
- Excellent energy storage capacity combined with high reliability
- Designed in accordance with IEC 60254-1
700 Cycles at 75%DOD
-10 years design life at 20 ° C ambient temperature (80% remaining capacity from C20)
-Grid plate construction consisting of a lead calcium alloy
-Very low gassing due to the internal gas recombination
-High cycle service life
- Better temperature resistance performance
-Excellent deep cycle performance
-Superior low current discharge performance
-Better charge acceptability
-Better safety performance and reliability
-High Performance price/ratio and low yearly operating cost
-Non-Spillable construction design
- Safety valve installation for explosion proof
-Low self discharge characteristic
-ABS containers and covers (UL94HB, UL94V-0 optional)
-Gel-batteries are designed to be operated within a wide temperature range 40° C and +55° C
-Maintenance-free (no topping up) motive power batteries in gel technology
-Completely recyclable

Applications:
-Aerial Work Platform (AWP)/Access
-Material Handling
-Floor Machine
-Recreational Vehicle (RV)
-Industrial
-Electric Boats
-Golf/Utility/Neighborhood Electric Vehicle (NEV)
-Wheel chairs
-Remote Monitoring & Instrumentation
-Renewable Energy (Solar, Small Wind and Small Hydro)

Certificates: CE/ISO/UL

Specifications:
Voltage& Capacity: 12V100AH
Model No.: NPCG100-12
Dimension: L-307*W169*H211*TH216
Terminal: T3
Weight: 30.2kgs
Model NoRated Voltage(V)Capacity (Ah)DimensionWeightTerminal
LengthWidthHeightTotal Heightkg
 mmmm mm mm
DCG200-6620030616822022230.7T5
DCG210-6621026018024724930.2T5
DCG220-6622030616822022232.2T5
DCG225-6622524318727527532.2T5
DCG310-6631029517835436046.3T5/T6
DCG330-6633029517835436047.0T5/T6
DCG380-6638029517840441055.6T5/T6
DCG420-6642029517840441057.5T5/T6
DCG200-8820026018229530140.8T5
DCG24-1212241661751261268.6T3
DCG26-1212261651261741748.8T2
DCG35-12123519613015516710.6T3
DCG40-12124019816617417414.6T3
DCG55-12125522913820821217T3
DCG70-12127035016717817823.6T3
DCG75-12127526016921121525.1T3
DCG85-12128526016921121526.2T3
DCG90-12129030716921121628.7T3
DCG100-121210030716921121630.7T3
DCG110-121211033117421422033.8T4
DCG120-121212040717321023339.7T5
DCG135-121213534117328328941.8T5
DCG150-121215048417124124146.3T4
DCG180-121218053220621622256.4T4
DCG200-121220053220621622259.0T4
DCG210-121221052224021922566.3T5
DCG240-121224052026920320971.5T5
DCG260-121226052026822022677.5T5
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.

We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.

In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.

We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.

As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.

With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
