Deep Cycle Solar Gel Battery 6V200ah, Htl6V-200ah
| Price: |
US $ 100-150/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
HTL6-200AH |
| Model: |
Solar Gel Battery 6V200ah |
| Size: |
306*168*220*225mm |
| Gross Weight: |
30kgs |
| Warranty: |
3 Years |
| Delivery Time: |
10-15 Days |
| Design Life: |
18 Years |
| Brand: |
Cspower/OEM |
| Color: |
Red Color with Black Cover |
| OEM: |
Available |
| Rated Capacity: |
200ah |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar and Wind System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Electrolyte: |
Gel |
Product Description

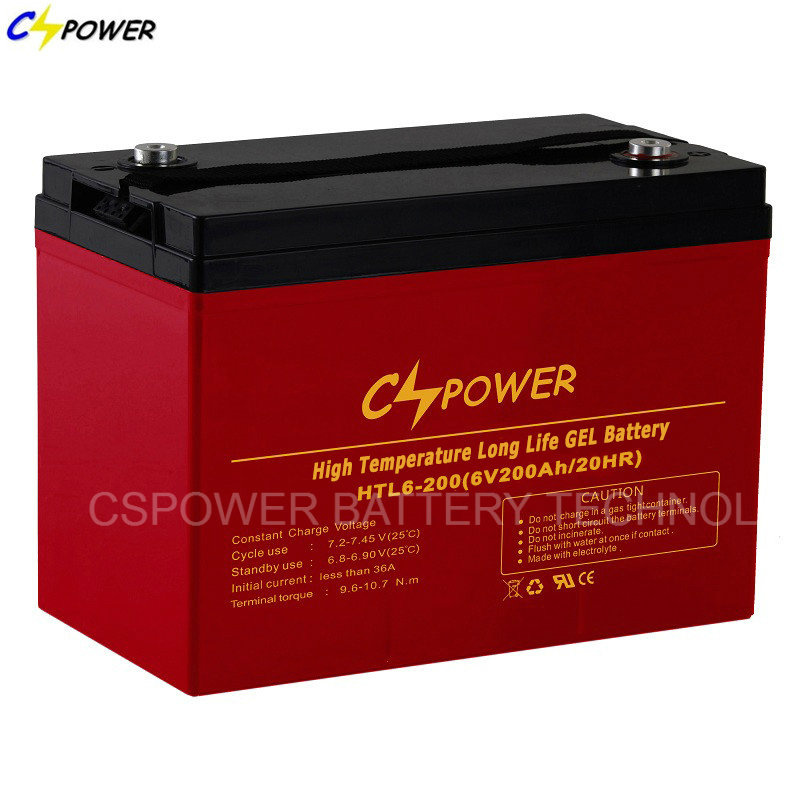

Deep Cycle Solar Gel Battery 6V200AH, HTL6V-200AH
1. NEWEST IN 2016, CSPOWER HIGH TEMPERATURE LONG LIFE GEL BATTERY, BEST CHOICE TO WORK IN HOT TEMPERATURE SITES AND LONG LIFE OVER 15YEARS.
Many countries in Middle East and Africa such as Pakistan, Israel, Nigeria have an average temperature of 40°C during hot season. If the battery lay out of door, the temperature is even higher and can go up to 50 °C. You may already know it, for every 10°C increase in temperature, the battery life will be reduced by half.
Due to the nature and construction of the normal AGM lead acid battery, it cannot bear such a hot temperature, this is why for outdoor use have to be equipped with air-conditioner.
Not only does it increase your capital expenses (CAPEX) and operational expenditure (OPEX) by spending thousands of dollars per year and per site in maintenance & electricity fees, it will also increase the energy used and thus increase your CO2 emissions. Reduction of Energy Consumption and increase of Energy Efficiency is one of the most important keys for outdoor use application.
Considering the above challenge, we developed a new range type of battery adapted for these environments.
We are proud to introduce our High Temperature Long Life Deep Cycle GEL Battery - HTL series.
Using thick plate design with special additives (super-C). This newly developed battery can work even high temperature up to 60°C without the use of any air-conditioner.
2. CSPOWER Long Life Deep cycle Solar Gel Battery 6V200AH Features
HTL series is High-temperature sealed free maintenance deep cycle GEL battery with 15-18 years design life in float service. Best partner for solar and UPS system.
It meets with IEC, CE and ISO standards.With up-dated valve regulated technology and high purity raw GEL materials, the HTL series battery maintains high consistency for better performance and reliable standby service life. It is designed specially for using under high temperature sites.
3. CSPOWER Long Life Deep cycle Solar Gel Battery 6V200AH Speciality
1) Positive plate: Thick high Sn low Ca grid minimize corrosion and prolong life
2) Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
3) Separator: Advanced AGM separator for ultra low float current
4) Electrolyte: nano GEL electrolyte import from Evonik Degussa Germany.
5) Battery container and cover: fire resistance ABS for higher temperature
6) Pillar seal: 100% factory tested, proven two layers epoxy resin seal
7) Relief valve : Complete with integrated flame arrestor
4. CSPOWER Long Life Deep cycle Solar Gel Battery 6V200AH Advantages
1. Three years warranty at 35°C-40°C average
2. Able to operate at -40°C to 60°C
3. Longer life and higher stability under high temp. environment (no air-con needed)
4. Use super-C additives lead plates: Deep discharge recovery capability
5. Cycle usage: 50% DOD, 1500 Cycles work in high/cold temp. area.
5. CSPOWER Long Life Deep cycle Solar Gel Battery 6V200AH Application
BTS Stations
Solar & Wind energy system
UPS system
Golf Cart&Electric Wheels
Other power system
6. CSPOWER Long Life Deep cycle Solar Gel Battery 6V200AH Factory Pictures
7. CSPOWER High Temperature Solar Gel Battery 12v 6v Specifications
| POWER MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) |
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) |
| HTL12-14 | 12 | 14 | 152 | 99 | 96 | 102 | 3.8 |
| HTL12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 6.0 |
| HTL12-24 | 12 | 25 | 166 | 175 | 126 | 126 | 8.3 |
| HTL12-26 | 12 | 25 | 165 | 126 | 174 | 179 | 8.4 |
| HTL12-35 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 |
| HTL12-40 | 12 | 40 | 198 | 166 | 174 | 174 | 14.2 |
| HTL12-55 | 12 | 55 | 229 | 138 | 208 | 212 | 16.0 |
| HTL12-70 | 12 | 70 | 350 | 167 | 178 | 178 | 23.3 |
| HTL12-75 | 12 | 75 | 260 | 169 | 208 | 227 | 25.0 |
| HTL12-85 | 12 | 85 | 260 | 169 | 208 | 227 | 26.1 |
| HTL12-90 | 12 | 90 | 307 | 169 | 211 | 216 | 28.2 |
| HTL12-100 | 12 | 100 | 307 | 169 | 211 | 216 | 30.2 |
| HTL12-110 | 12 | 110 | 331 | 174 | 214 | 220 | 33.3 |
| HTL12-120 | 12 | 120 | 407 | 173 | 210 | 233 | 39.2 |
| HTL12-135 | 12 | 135 | 344 | 172 | 280 | 285 | 40.8 |
| HTL12-150 | 12 | 150 | 484 | 171 | 241 | 241 | 45.5 |
| HTL12-180 | 12 | 180 | 532 | 206 | 216 | 222 | 56.0 |
| HTL12-200 | 12 | 200 | 532 | 206 | 216 | 222 | 58.4 |
| HTL12-230 | 12 | 230 | 522 | 240 | 219 | 225 | 65.0 |
| HTL12-250 | 12 | 250 | 520 | 268 | 220 | 226 | 71.0 |
| HTL12-300 | 12 | 300 | 520 | 268 | 220 | 226 | 77.0 |
| HTL6-200 | 6 | 200 | 306 | 168 | 220 | 222 | 30 |
| HTL6-210 | 6 | 210 | 260 | 180 | 247 | 249 | 29.5 |
| HTL6-220 | 6 | 220 | 306 | 168 | 220 | 222 | 31.5 |
| HTL6-225 | 6 | 225 | 243 | 187 | 275 | 275 | 30.5 |
| HTL6-310 | 6 | 310 | 295 | 178 | 346 | 366 | 46 |
| HTL6-330 | 6 | 330 | 295 | 178 | 354 | 360 | 46.6 |
| HTL6-380 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 |
| HTL6-420 | 6 | 420 | 295 | 178 | 404 | 410 | 56.8 |

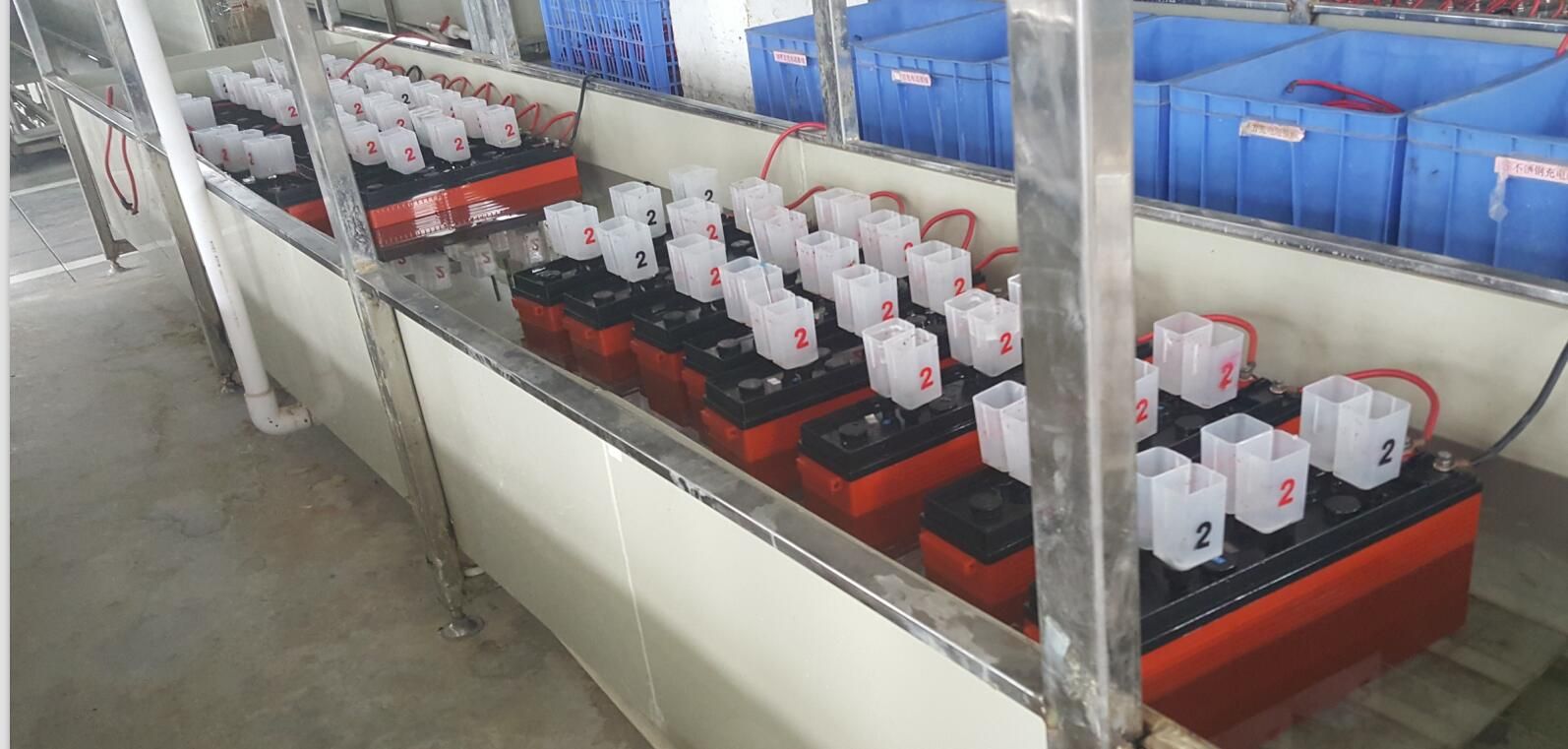

www.csagmbattery.com8. CSPOWER Long Life Deep cycle Solar Gel Battery 6V200AH-420AH Charging and testing
9. CSPOWER Deep cycle Gel Batteries Certificates: CE, IEC, ISO

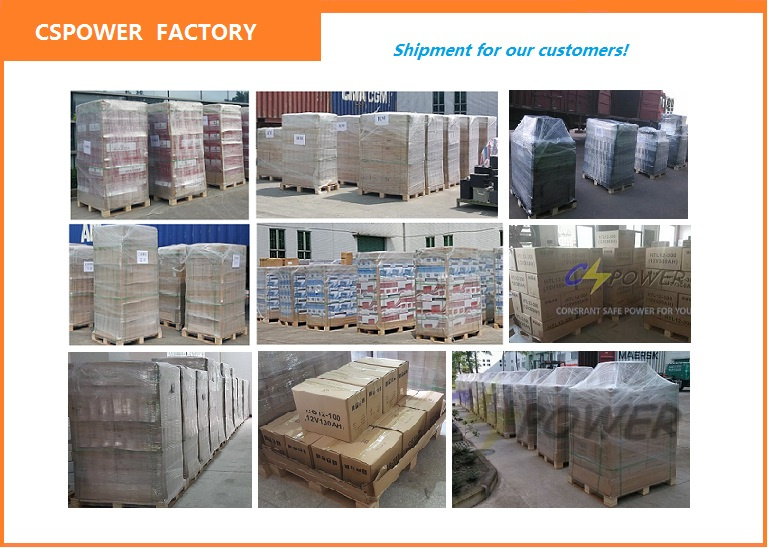

10. CSPOWER Long Life Deep cycle Solar Gel Battery 6V200AH-420AH ready to sea shipping
