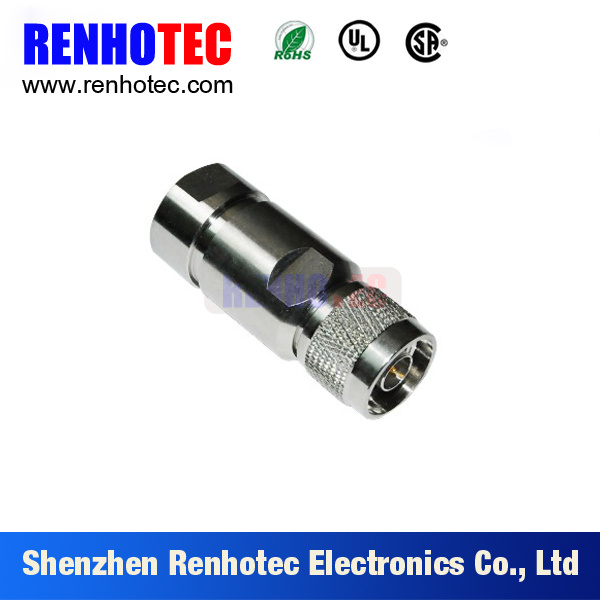

The connectors are kind of low to medium power connectors, with screw coupling mechanism, are widely used connect of the RF coaxial-cable in electronic equipment and instruments, and can be interchange able with the same-type connectors of abroad. Characteristic impedance 50Ω and 75Ω.
Features & Benefits
| Broadband performance DC to 18 GHz with low reflection stainless steel construction and ¼ - 36 threaded coupling offers high performance in a compact design. |
| Low cost Commercial Grade (Brass SMA) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles. |
| Available for .085" and .141" diameter semi-rigid cables and all the standard flexible cables including double shielded RG-316. |
| Phase Adjustable SMA connectors provide ease of mechanical screw adjustments, compared to the delays and expense of laborious cable-trimming. |
Applications
| Base Stations | | Cable Assemblies | | Components |
| Instrumentation | | Mil/Aero | | PC/LAN |
| Process Controls | | Telecom | | |
Specifications
Electrical |
Impedance | 75 Ω |
Frequency Range | 0 - 1 GHz |
Voltage Rating | 1,500 volts peak |
VSWR | MIL-C-39012 straight connectors: 1.3 max 0-11 GHz MIL-C-39012 right angle connectors: 1.35 max 0-11 GHz |
Dielectric Withstanding Voltage | 2,500 volts rms |
Insulation Resistance | 5,000 MΩ minimum |
Center Contact Resistance | 1.0 mΩ |
Outer Contact Resistance | 0.2 mΩ |
RF Leakage | -90 dB minimum at 3 GHz |
Insertion Loss | .15 dB maximum at 10 GHz |
Mechanical |
Mating | 5/8-24 threaded coupling |
Braid or Jacket Cable Affixment | All crimps: hex braid crimp Clamps: screw-thread nut and braid clamp |
Center Conductor Cable Affixment | Crimp: crimp or solder All others: solder only |
Captivated Contact | All crimps unless specified otherwise |
Cable Retention | Crimps: 60-120 lbs Clamps: 30-70 lbs |
Material |
Male Contacts | Brass, silver or gold plated |
Female Contacts | Phosphorous bronze or beryllium copper, silver or gold plated |
Other Metal Parts | Brass with ASTROplate® finish; M39012 has silver finish |
Insulators | TFE, copolymer of styrene or glass-TFE (hermetic seal) |
Weatherproof Gaskets | Silicone rubber of synthetic rubber |
Crimp Ferrule | Copper |
Environmental |
Temperature Range | TFE: -65°C to +165°C |
Weatherproof | All series N with gaskets are weatherproof |
Hermetic Seals | Pass helium leak test of 2x10-8 cc/sec |
Pressurized Shock | Compression seal MIL-STD-202, method 213 |
Vibration | MIL-STD-202, method 204, test condition B |
Moisture Resistance | MIL-STD-202, method 106 |
Corrosion | MIL-STD-202, method 101, test condition B |
Temperature Cycling | MIL-STD-202, method 102, test condition C |
Altitude | MIL-STD-202, method 105, test condition C |
Military |
MIL-C-39012 MIL-A-55339 | Where applicable |
Note: These characteristics are typical but may not apply to all connectors.
Company Information
RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.
Packing:
Normal packing: 100 pcs per tray or polybag ,1000pcs per carton.
Private packing and label service are available as per your requirement.
Shipping:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. Items can be sent within 7-10 working days after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
FAQ
1. When can I get the quotation?
2. What's your MOQ?
Normally our MOQ is 1000pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How do you guarantee the quality?
All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly accoring to UL, ROHS standards. QC will inspect goods before shipping to ensure the quality.
5. What's the warranty?
One year, 12 months.
