Dh48j 4-Digit Counter

Name: Dh48j 4-Digit Counter
Brand: all-electronics-online.com
SKU: 802834875
Availability: InStock
Rating: 4.4 (118 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DH48J
Dimension:	123X51X51
Supply Voltage:	12, 24VDC; 110, 220 or 380 VAC
Qty Of Contacts:	1 Group
Contacts Capacity:	AC250V 5A Resistive
Counting Speed:	30 Times/Sec

Product Description

Please remark the supply voltage,default is 220Vac

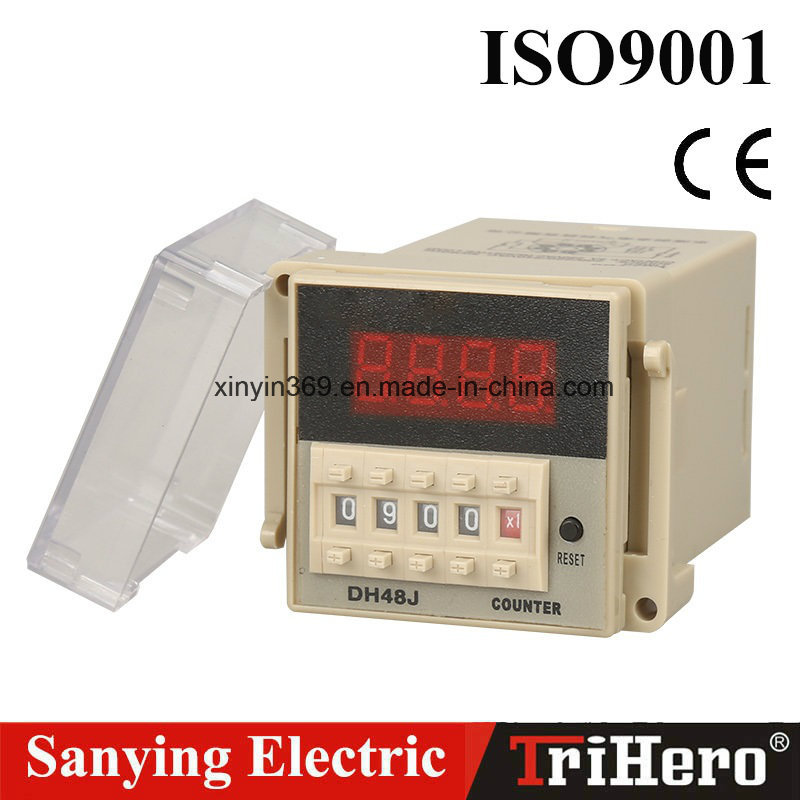

DH48J series digital counter
Model number and counting range

Model number	Counting range	Input signal	Remark
DH48J-8	1-9999 x1/x10/x100 multiple	Relay, limit switch, etc	With reset function
DH48JA	1-9999 x1/x10/x100 multiple	Proximity sensor, Photoelectric sensor, etc
DH48J-11A	1-9999 x1/x10/x100 multiple	Relay, limit switch, sensor, etc	With reset function

General

Model number	DH48J series
Supply voltage	12, 24Vdc; 110, 220 or 380 Vac
Operating mode	Up counting, down counting
Input Signal	Contact,level, sensor
Max. counting speed	30 cps
Min. counting pulse	15ms
No-power memory	DH48J-11A: 10 years
Control form	SPDT
Contact rating	5A@250Vac, 7A@24Vdc
Mechanical life	1x10⁷
Electrical life	1x10⁵
Power consumption	5W max
Setting method	Dial switch
Indication method	8-segment 4-digital display
External dimensions	48x48x97 mm
Perforate dimensions	46¹₀x46¹₀ mm
Counting error	≤1
Reset time	≥0.05s
Power reset	≥1s
Dielectric strength	2000Vac, 50/60Hz for 1min
Insulation resistance	100MΩ min. at 500 VDC
Termination	DH48J, DH48JA: 8 pin; DH48J-11A: 11 pin
Mounting	Panel, Din rail
Matched socket	DH48JA,DH48JA: PF083A, DH48J-11A: PF113A
Matched sensor	LJ12A3-4-Z/BX
Operating temperature	-10 to 50 °C
Operating humidity	30-85% RH max, non-condensing
Alias name	DH48J series counting relay, counter relay

Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
