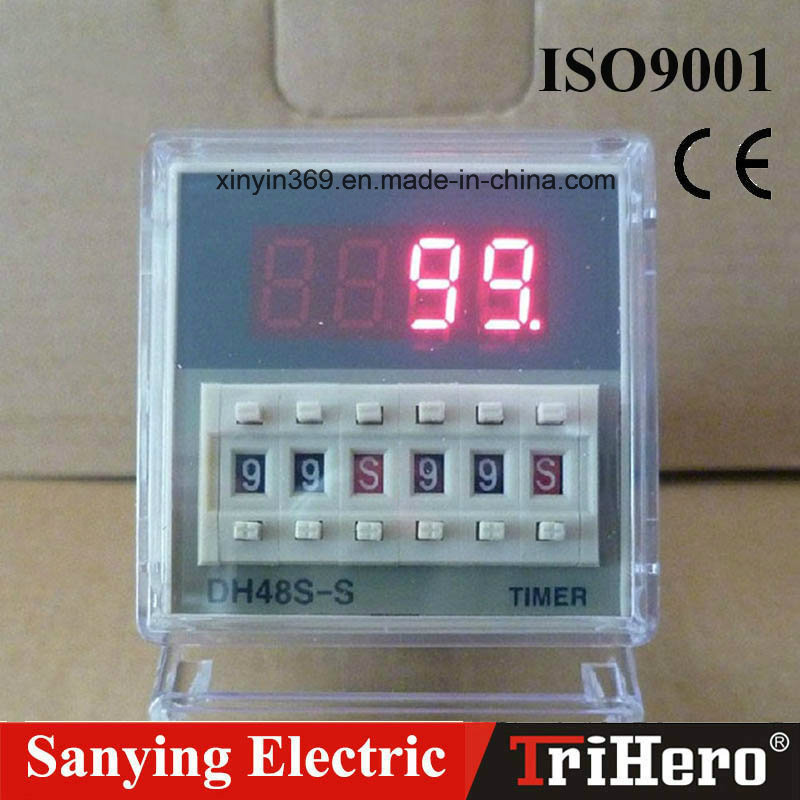

Dh48s-S Digital Timer

Name: Dh48s-S Digital Timer
Brand: all-electronics-online.com
SKU: 802841225
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

DH48S series digital time relay

Contact form and delay time:

Model number	Contact form	Delay time
DH48S-1Z	On-delay SPDT	1m-99h99m; 1s-99m99s; 0.01s-99.99s
DH48S-2Z	On-delay DPDT	1m-99h99m; 1s-99m99s; 0.01s-99.99s
DH48S-2ZH	On-delay SPDT with SPDT instantaneous	1m-99h99m; 1s-99m99s; 0.01s-99.99s
DH48S-S	Repeat cycle SPDT	0.1s-990h
DH48S-S-2Z	Repeat cycle DPDT	0.1s-990h

General:

Model number	DH48S
Supply voltage	36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc
Tolerance	-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption	2W max
Setting method	Dial switch
Indication method	8-segment 4-digital display
External dimensions	48x48x97.4 mm
Perforate dimensions	45 10x45 10 mm
Contact rating	3A@250Vac, 5A@28Vdc
Repeat accuracy	±0.3%, ±0.05 sec
Setting error	±0.5%, ±0.05 sec
Termination	8 pins
Mounting	Panel, din rail
Matched socket	PF083A, PF083A-E
Mechanical life	1x106
Electrical life	1x105
Operating temperature	0 to 50 °C (32 to 122 °F)
Operating humidity	95% RH max, non-condensing
Alias name	DH48S digital timer

Prod Model:	DH48S-S
Dimension:	123X51X51
Supply Voltage:	AC:36V,110V,127V,220V,380V; DC24V
Working Method:	Repeat Cycle Spdt
Contacts Capacity:	AC250V 5A Resistive
Qty Of Contacts:	1 Group

Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

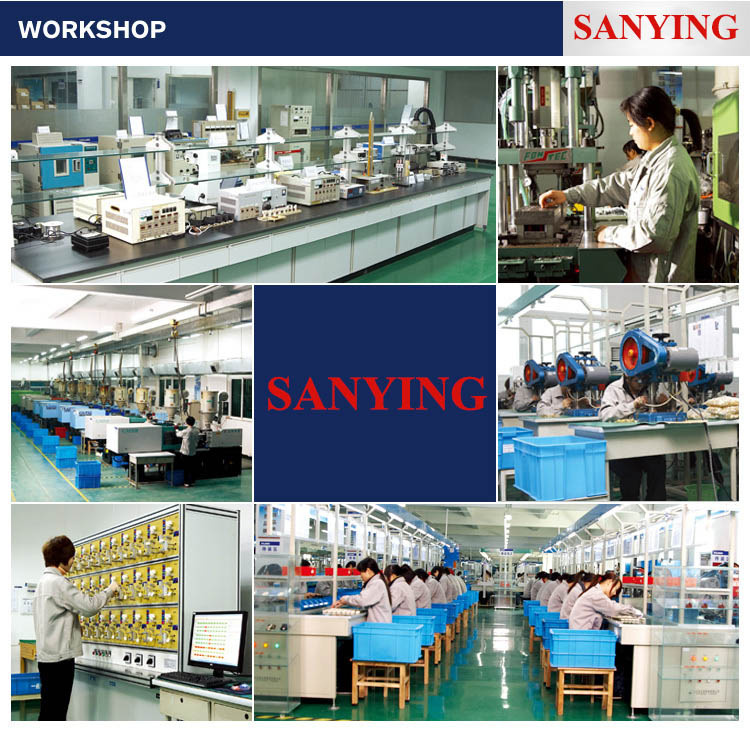

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
