Diaphragm Seal Flange Liquid Level Transmitter for Corrosive Application
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
WNK57 |
Range Down: |
100:1 |
Output Signal: |
4~20m, 4~20mA/Hart, Profibus-PA |
Housing Material: |
Aluminum Alloy |
Stability: |
0.25% of Url for 1 Year |
Temperature Drift: |
0.0625% of Url/10oc |
Protection Class: |
IP66/67 |
Accuracy Grade: |
0.075 |
Product Description

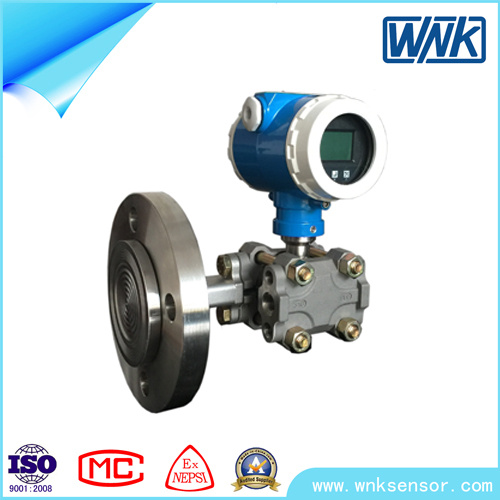

WNK57 single flange differential Pressure Transmitter
(Gauge/absolute/Differential pressure/Liquid Level transmitter) Features | Applications: |
1. High reference accuracy up to 0.075%, higher on request. | Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement. |
2. Long-term drift ≤±0.25%URL for 1 year. |
3. Range down ratio 100:1; higher on request. | Level measurement in liquids. |
4. Replaceable display unit & electronic module. | High process temperatures up to 280ºC with diaphragm seals. |
5. Universal electronics. | It can be used below particular occasiaon |
6. Menu-guided operation. | 1. Need to isolate the high temperature medium with transmitter |
7. Factory default data recovery is supportive | 2. The measuring medium is corrosive to the transmitter |
8. Hart, PROFIBUS-PA or FF protocol for option. | 3. The measuring medium solidification or crystallization due to environmental or temperature changes |
| 4. Suspended liquid or high viscosity medium |
Technical Data-WNK57 single flange Gauge/Absolute/Differential pressure transmitter |
Applicable media | liquid, gas and steam |
Pressure range | -4000kPa~4000kPa |
Accuracy | 0.075%, higher on request |
Stability | ±0.25% of URL for 1 year |
Temperature drift | ±0.0625% of URL/10ºC |
Output signals | 4~20mA, Hart, PROFIBUS-PA for option |
Housing material | Aluminum14 |
Mechanical connection | M20×1.5;G1/2;1/2NPT |
Protection class | IP66/67 |
Diaphragm material | 316L, Alloy C-276, Monel, Tantalum diaphragm, 316L with PTFE coating etc for option |
Fluid filled | Silicon oil,Vegetable oil,Inert oil ,High temperature oil etc for option |
Ex-proof | Exia II CT4, other option per request |
Power Supply | 10.5-55V DC 10.5-30V DC |
Ambient temperature | -40 to 85ºC,-40 to 80ºCfor LCD header |
Storage temperature | -45 to 85ºC,-40 to 80ºC for LCD header ; |
Sealing diaphragm filling technical parameters Liquid filled | Temperature 0.05bar Pabs≤1bar | Temperature Pabs≥1bar | Density (g/cm³) | Viscosity (cSt 25ºC) | Thermal expansion (1/K) | Remark (suitable for) |
Silicone oil | -40...+180ºC | -40...+250ºC | 0.96 | 100 | 0.00096 | Food industry |
High temperature oil | -10...+200ºC | -10...+350ºC | 0.81 | 30 | 0.0007 | High temperature |
Inert oil | -40...+80ºC | -40...+175ºC | 1.87 | 27 | 0.000876 | Ultra pure gas and oxygen occasions |
Vegetable oil | -10...+120ºC | -10...+200ºC | 0.94 | 9.5 | 0.00101 | Food industry |
For more information, please contact us for product manual. Installation diagram
