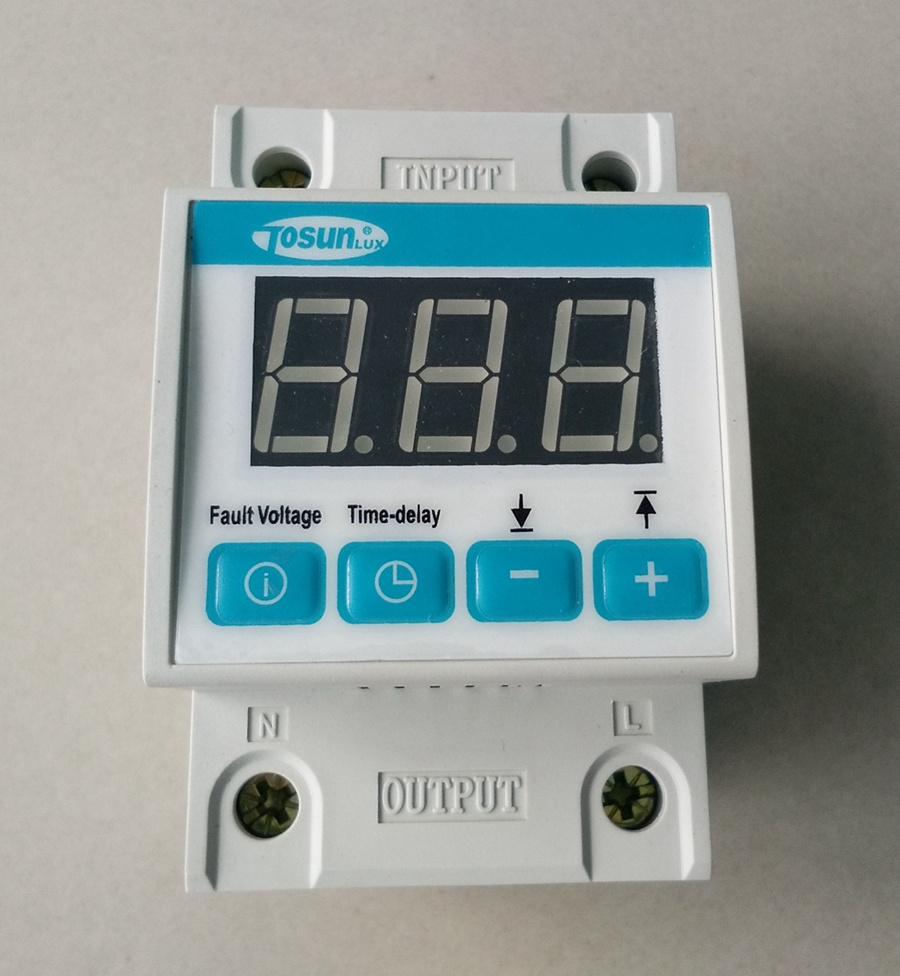

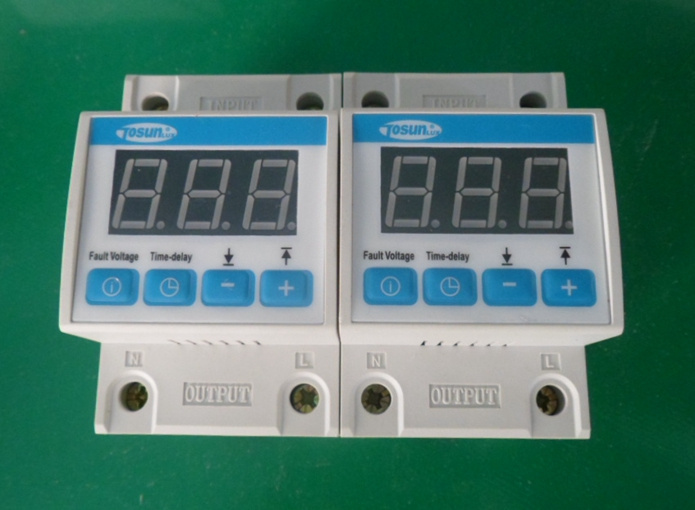

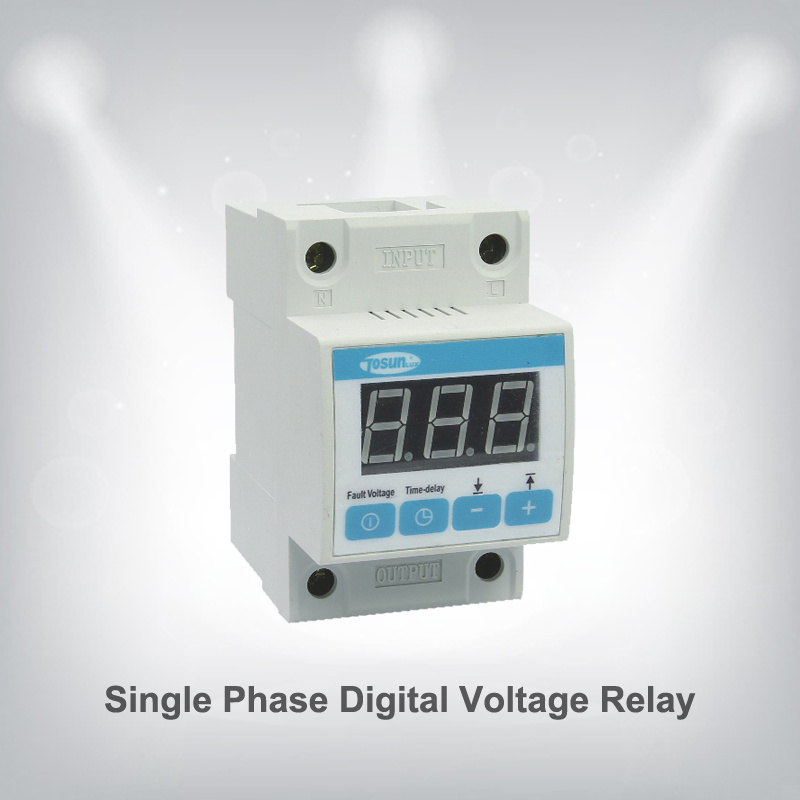

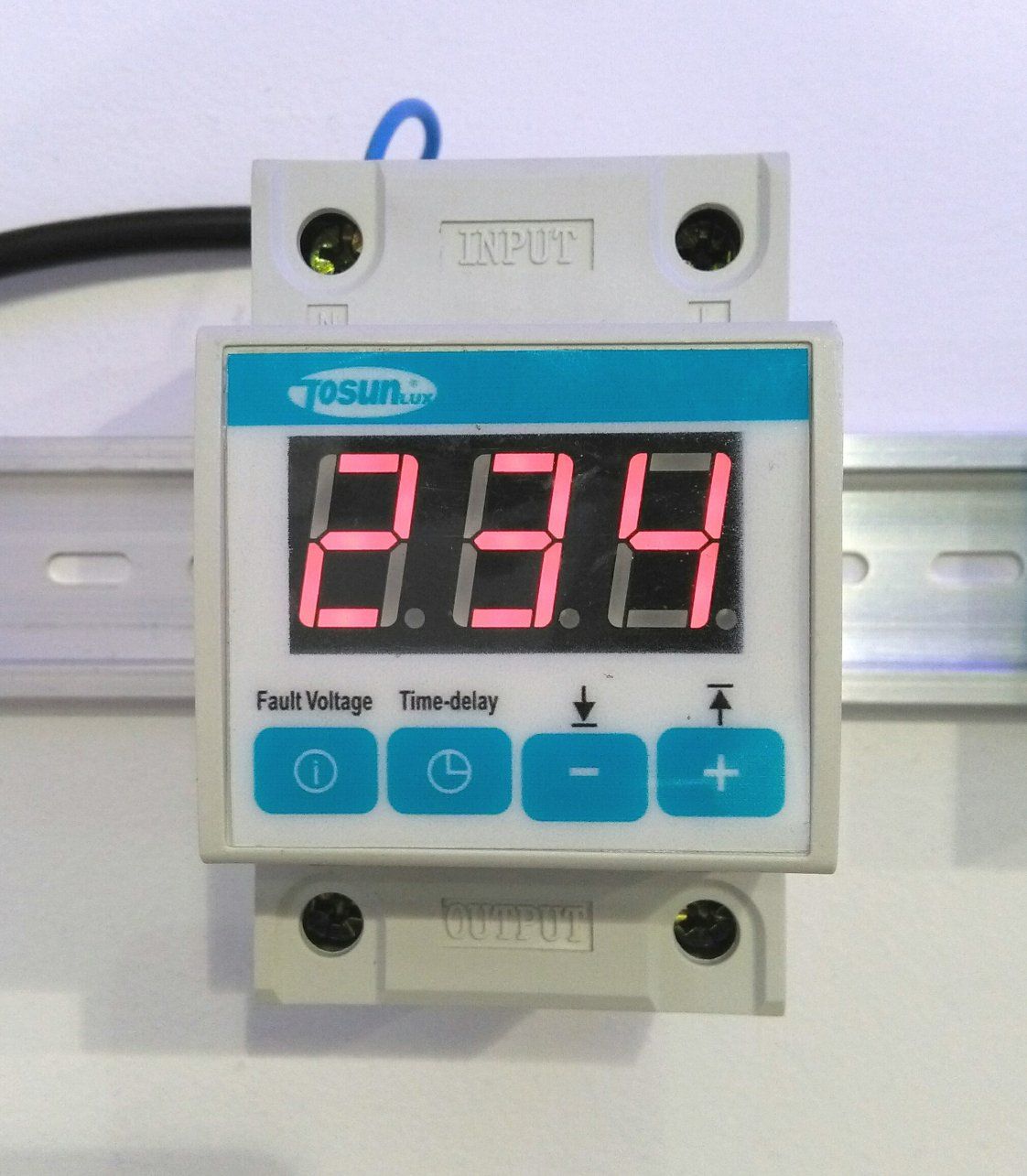

Digital Voltage Protector (cutoff voltage adjustable)

Name: Digital Voltage Protector (cutoff voltage adjustable)
Brand: all-electronics-online.com
SKU: 833367355
Availability: InStock
Rating: 4.8 (80 reviews)

Price:	US $ 4-10/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Application

TDP Modular Digital Over & Under Voltage Protector is self-healing phase failure & phase sequence protective relay. It is a newly developed household electrical equipment protector.

The protector can quickly disconnect the power supply to protect the appliances in case of power interruption or voltage over or under the predetermined value. When power supply recovers, the protector automatically connects the power after 1-2 minutes' delay.

All the protective actions are automatically controlled. Indicators on the panel shows the working conditions.

Specification

Model	TDP-1					TDP-3
Number of Poles	1P					3P
Rated Voltage	AC 220V					AC 380V
Rated Current	20A	30A	40A	50A	60A	30A	40A	50A	60A
Loading Power	4.4kVA	6.6kVA	8.8kVA	11kVA	13kVA	20kVA	25kVA	30kVA	40kVA
Over-voltage Cut Off Value	AC 230-270V adjustable (400V short time)					AC 390-450V adjustable
Delay	0.02s					1-2s
Under-voltage Cut Off Value	AC 120-210V adjustable					AC 210-360V adjustable
Delay	1s					1-2s
Recovery Time	10-600s adjustable
Self Power Consumption	≤3W					≤2W
Ambient Temperature	-20~+40 ºC

Why us?
1. 24 years' experience. We have been in this field since 1994.

2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².

3. Reliable quality. Professional inspectors supervisng the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.

4. Favorable service. Experienced salesmen to handle business for you specially.

5. Attractive packing. Particular designers in charge of packing material in a unique style.

Prod Model:	TDP-1
Model:	Tdp-1
Number Of Poles:	1 P
Rated Voltage:	AC220V
Rated Current:	20A, 30A, 40A, 50A, 60A
Capacity:	4.4-13kVA
Over-Voltage Action Value:	AC230-270V Adjustable
Over-Voltage Action Delay:	0.02s
Under-Voltage Action Value:	AC120-210V Adjustable
Under-Voltage Action Delay:	1s
Recovery Time Setting Range:	10-600s
