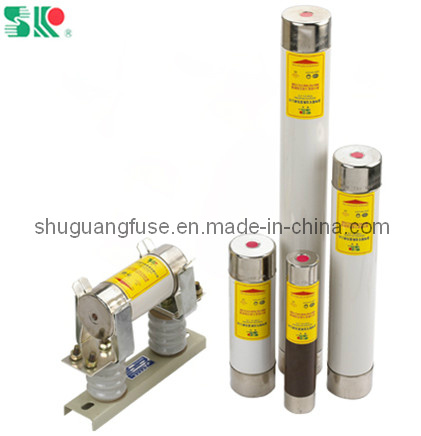

DIN Dimensioned High Voltage Current Limited HRC Motor Fuse (IEC standard)

Prod Model:	XRNM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White, Brown
Material:	Ceramic
Rated Voltage:	3.6kv-10kv
Rated Current:	25A-355A
Length:	254mm, 403mm, 600mm
Diameter:	51mm, 76mm
Service:	OEM, ODM
Sample:	Available
Delivery:	as Required
Operation:	Automatic
Breaking Capacity:	High Voltage
Type:	High Voltage Fuse
Usaga:	Motor Protection
Standard:	IEC282-1 GB15166.2

Product Description

Key Specifications/Special Features:

1. Motor protection

2. High breaking capability

3. High voltage current limiting fuse

4. Suitable for electrical power system of AC 50Hz, rated voltage 10kV and below, rated current up to 400A(3.6KV), 224A(7.2KV) circuit for protecting motor and other power equipment from overload and short-circuit.

5. High-pressured fuse conforms to the national GB15166.2 standard and the international electrical committee IEC 60282 standard as well as German DIN standard and British BS standard.

DIN dimensioned motor fuse links(IEC standard):

Advantages:

1. Full scope protection

2. High breaking capability

3. High voltage current limiting fuse

4. Design as customer required

5. Low power dissipation

Specification:

Material: Ceramic

Color: White, Brown

Length: 254mm, 403mm, 600mm

Diameter: 51mm, 76mm

Some other specification can be designed as required.

Type	Rated voltage (KV)	Rated current (A)	Diameter (mm)	Length (mm)
XRNM1	3.6	50 63 80 100 125	51	254
XRNM1	3.6	125 160 200	76	254
XRNM1	3.6	250 315 355 400	76	254
XRNM1	7.2	25 31.5 40 50 63 80 100 125 160	76	403
XRNM1	7.2	200 224	76	403
XRNM1	10	25 31.5 40 50 63 80 100 125 160 200 224	76	600
