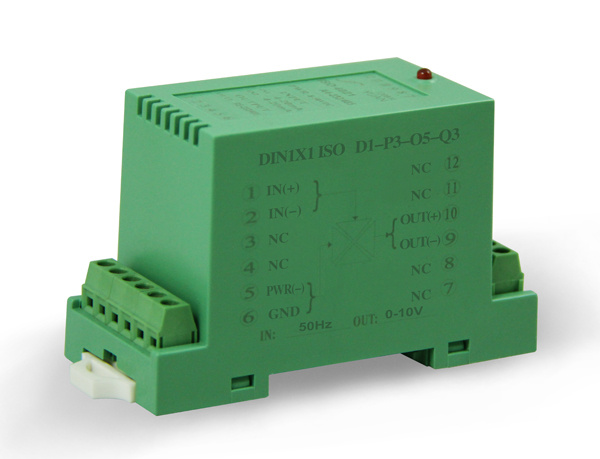

DIN Rail DC Current or Voltage Isolated Distributor
DIN1X1ISOEM U(A)-P-O-S Series Converter/Transmitter General parameter:
"Zero"and "Gain" adjustment
0-5V/0-10Vvoltage signal or 0-10mA/0-20mA/4-20mA/ current signal isolation and transfer
With good anti-jamming capability
Assistant power: 5VDC/12VDC/15VDC/24VDC
Three-port (power/input/output) isolation: 3000VDC
Input port with a isolated power supply
DIN35 Rail Mounting
Applications
Passive sensor isolated power distribution, signal acquisition & transmission.
Supply power for preamplifier, weighing bridge tocollect signals.
PLC, DCS analog signal isolation and dataacquisition.
DC current/voltage signal isolation, amplification and conversion.
Analog signal ground interference rejection anddata isolated acquisition.
Industrial site signal isolation and long-distance transmission.
Receiving and Transmitting the signals between meters& Instruments and sensors.
Electric monitoring, medical equipments isolated safety bar.
Product Model Sellection:
ISO EM U(A) -P- O- S
Signal Input: Current/Voltage
U1: 0-5V A1: 0— 1mA
U2: 0-10V A2: 0— 10mA
U3: 0-75mV A3: 0— 20mA
U4: 0-2.5V A4: 4— 20mA
U8: Customized A8: Customized
Auxiliary Power Supply
P1: 24VDC P2: 12VDC
P3: 5VDC P4: 15VDC
P8: Customized
Signal Output
O1: 4-20mA O2: 0-20mA
O4: 0-5V O5: 0-10V
O6: 1-5V O8: Customized
Isolated Distribution Power Supply
S1: 9VDC
S2: 15VDC
S3: 24VDC
S4: 5VDC
S8: Customized
Model Sellection Example:
E. G. 1: Input 0-5V; Power supply: 24VDC, Output: 0-5V Isolated power supply: 15V
Part number: DIN1x1 ISO-U1-P1-O4-S2
E. G. 2: Input: 4-20mA, power supply: 24VDC, Output: 4-20mA Isolated power supply: 24V
Part Nomber: DIN1x1 ISO-A4-P1-O1-S3
|
Precision,Linearity Error Grade |
Auxiliary Power Supply |
Operating Temp. |
Storage Temp. |
Storage Humidity |
Backlash |
Isolation |
Insulation Resistance |
Withstand Volt |
Leakage current |
Inpulse Volt. Test |
|
0.1,0.2 |
5V,12V,15V,24VDC |
-20~+70 centigrade |
-45~+85centigrade |
10~95%(No Condensation) |
<0.5% |
Signal Input/Output/Auxiliary Power Supply |
>=20MOhm |
3KV(60HZ/S) |
1mA |
3KV,1.2/50us(Peak Value) |
