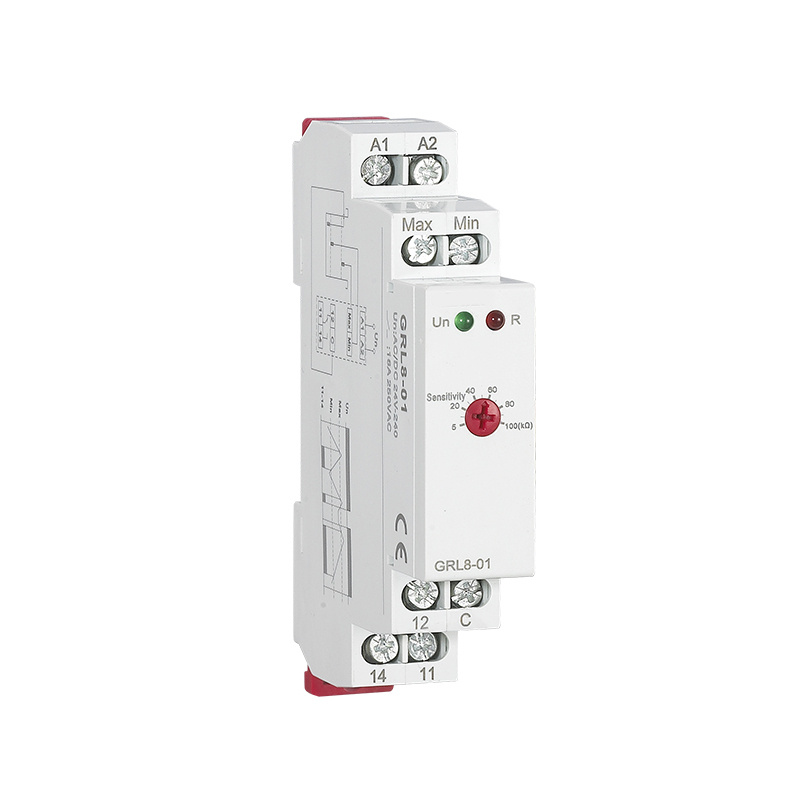

DIN Rail Single Phase Monitoring Voltage Relay Industrial Control Overvoltage Undervoltage Protection Relay

Name: DIN Rail Single Phase Monitoring Voltage Relay Industrial Control Overvoltage Undervoltage Protection Relay
Brand: all-electronics-online.com
SKU: 839157925
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Type 1: Select-Overvoltage-Undervoltage with Knob AC220V

Type 2: Select-Overvoltage-Undervoltage with Knob DC12V

Type 3: Automatically-Overvoltage-Undervoltage Control AC220V

Type 4: Automatically-Overvoltage-Undervoltage Control DC12V

Type 5: Select-Overvoltage-Undervoltage with Knob AC/DC12-48V

Type 6: Select-Overvoltage-Undervoltage with Knob AC/DC110-240V

Type 7: Automatically-Overvoltage-Undervoltage Control AC/DC12-48V

Type 8: Automatically-Overvoltage-Undervoltage Control AC/DC110-240V

Please leave us a message of the type you need if there's no options you need.

Applications
-Protect electrical equipment and motors from over-voltage and under-voltage.
-Normal/emergency power supply switching.

Function Features
-Controls its own supply voltage(True RMS measurement)
-.User may select operation mode through knob.
-Voltage measurement accuracy<1%.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

Model and connotation
Rated control supply voltage:
Rated supply voltage code:D12 AD48 AD240 A220
Rated supply voltage:DC 12V AC/DC24…48V AC/DC110…240V AC220V
supply voltage LIMITS:DC7…20V AC/DC15…100V AC/DC50…270V AC160…270V
Range of adiustment:DC9…15V AC/DC20…80V AC/DC65…260V AC180…260V
Function Of Mode
01-Over/under voltage in windows mode

Technical Date

Electrical features

Product Name	Single Phase Monitoring Voltage Relay
GRV8-01	Function: Overvoltage or Undervoltage
GRV8-02	Function: Overvoltage & Undervoltage
Voltage Range	AC/DC12-240V DC12V AC/DC24-48V AC220V
Supply Terminals	A1-A2
Output	1SPDT
Current Rating	10A/AC1
Voltage Range	50/60HZ
Time Delay	Adjustable 0.1s-10s (10%)
Reset Time	1000ms
Standard	EN 60255-1,IEC60947-5-1
Protection Degree	IP40 for Front Panel, IP20 for Terminals
Weight/pcs	0.1KG/PCS
Certifications	CE CB
Warranty/guarantee	18months
MOQ	1PCS

Prod Model:	GRV8-01/02
Volatge:	AC230V , AC/DC12-240V
Current:	16A
Mounting:	DIN Rail
