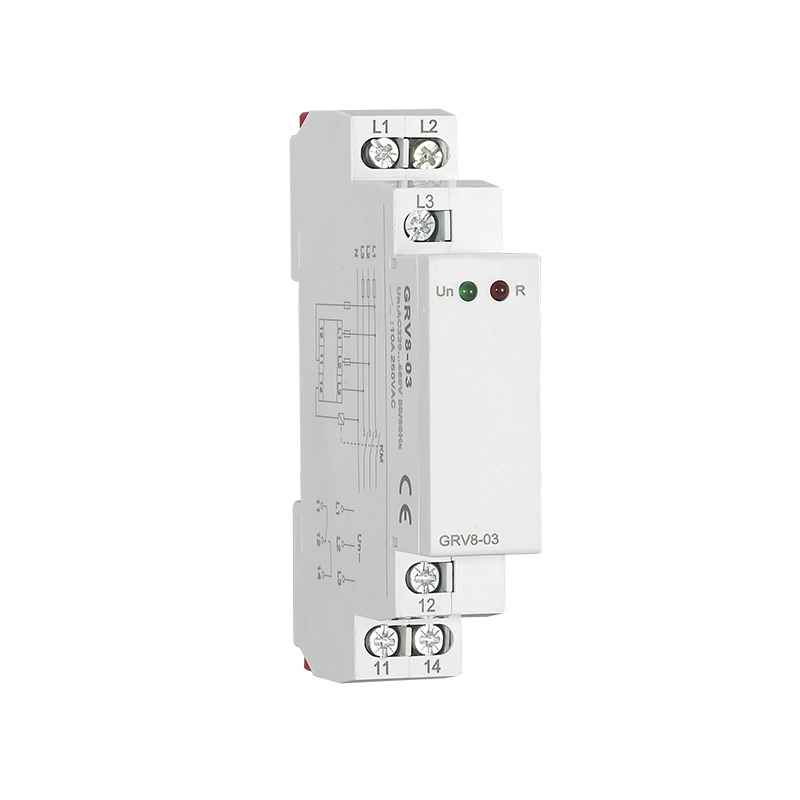

DIN Rail Three Phase Monitoring Voltage Relay Industrial Control Phase Sequence Failure Protection Relay

Name: DIN Rail Three Phase Monitoring Voltage Relay Industrial Control Phase Sequence Failure Protection Relay
Brand: all-electronics-online.com
SKU: 839157255
Availability: InStock
Rating: 4.9 (129 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Applications
-Control for connection of moving equipment(site equipment,agriculturaequipent,refrigerated trucks).
-Control for protection of persons and equipment against the consequencesof reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure).

Function Features
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
- Measuring frequency range:45Hz-65Hz.
- Voltage measurement accuracy<1%.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting

GRT8
Rated control supply voltage:
M460:220-230-240-380-400-415-440-460VAC(P-P)
M265:127-132-138-220-230-240-254-265VAC(P-N

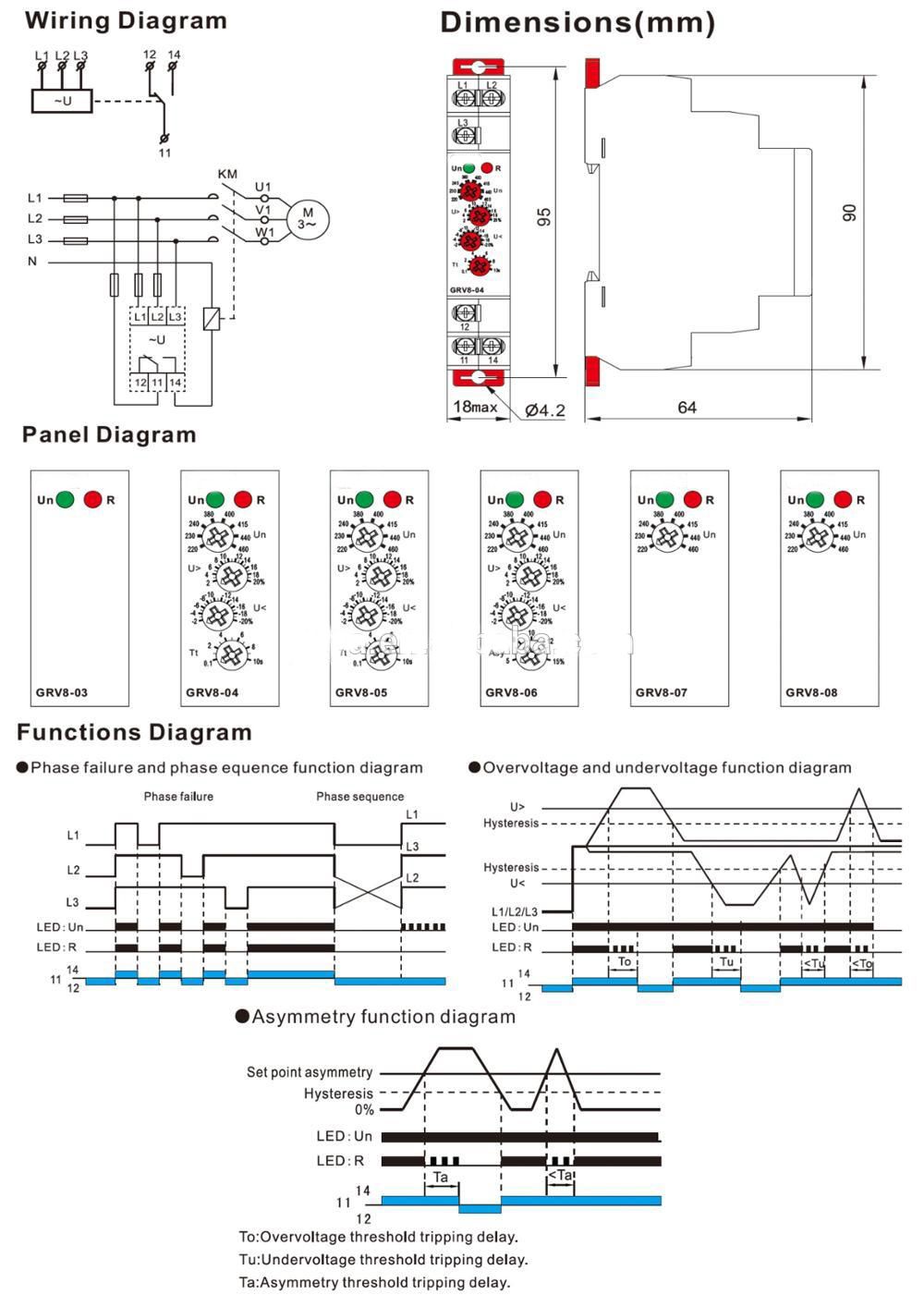

Function Of Mode

Technical Date

Electrical features

Product Name	3 Phase or 3Phase +N Monitoring Voltage Relay
Function	Overvoltage, Undervoltage, Asymmetry, Delay Time, Phase Sequence, Phase Failure
Rated Control Supply Voltage	3P=M460 (P-P) 3P+N=M265(P-N)
Monitoring Terminals	L1-L2-L3 OR L1-L2-L3-N
Supply Terminals	L1-L2 OR L1-N
Output	1SPDT
Current Rating	10A/AC1
Voltage Range	45/65HZ
Time Delay	Adjustable 0.1s-10s (10%)
Reset Time	1000ms
Standard	EN 60255-1,IEC60947-5-1
Protection Degree	IP40 for Front Panel, IP20 for Terminals
Weight/pcs	0.1KG/PCS
Certifications	CE CB
Warranty/guarantee	18months
MOQ	1PCS

HOW TO CHOOSE THE MODEL

Product Code	Over Voltage	Under Voltage	Asymmetry	Delay Time	Phase Sequence	Phase Failure
GRV8-03
GRV8-04	2%~20%	-20%~2%		0.1s~10s
GRV8-05	2%~20%	-20%~2%	8%	0.1s~10s
GRV8-06	2%~20%	-20%~2%	5%~15%	2s
GRV8-07			8%	2s
GRV8-08	15%	-15%	8%	2s

Note Means The Function is Available

Volatge:	AC230V , AC/DC12-240V
Current:	16A
Mounting:	DIN Rail
