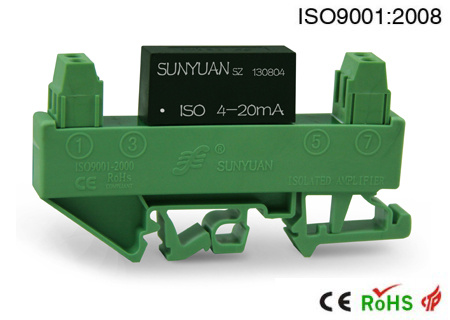

DIN3 ISO 4-20mA Rail Loop Powered 4-20mA Isolator /Transmitter
| Price: |
Negotiable/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
DIN3 ISO 4-20mA |
| Input: |
4-20mA |
| Output: |
4-20mA |
| Isolation Method: |
Electromagnetic Isolation |
| Isolation Voltage: |
3000VDC |
| Package: |
DIN3 Small Size |
| Remark: |
DIN Rail Loop Powered 4-20mA Isolator |
Product Description
DIN3 ISO 4-20mA Rail Loop Powered 4-20mA Isolator /TransmiterGeneral characteristics:
>> Efficiency Grade:0.1/0.2
>> Easy to use,extra power supply is not required.
>> High precision, error and nonlinearity < 0.2%
>> 0-10mA/0-20mA/4-20mA international standard current signal input and output
>> Between input and output uses the passive electromagnetism isolation technology,isolation voltage can reach 3000VAC.
>> Temperature Range:-25~70 deg.C

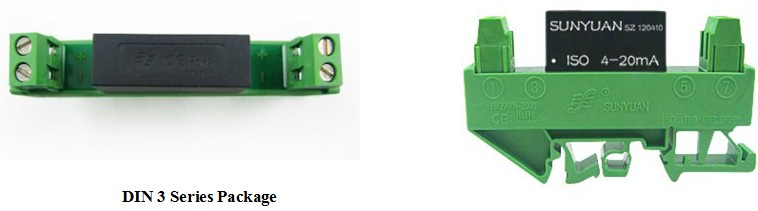

>> Standard DIN Rail35 package,super slim (12.5mm),low cost.
Applications:
>> DC current/voltage signal isolation and transmission.
>> Equipment and sensor signal acquisition.
>> 4-20mA signal isolation and transfer.
>> Ground-loop elimination.
>> Electric power,medical instrument isolated safety bar.
>> No distortion in long distance signal.
4-20mA/0-5V/0-10V/0-10mA,etc Isolation Transmitter/Converter Application Solutions:
The Universal Connection Solutions for Industrial Sensor and Instruments (ISO 4-20mA) Series
The External Protection of Isolation Amplifier Transmitter IC
Model selection
DIN3 ISO 4-20mA
Small size Magneto-electric isolation
DIN Rail35 4-20mA/0-20mA/0-10mA without adjustment

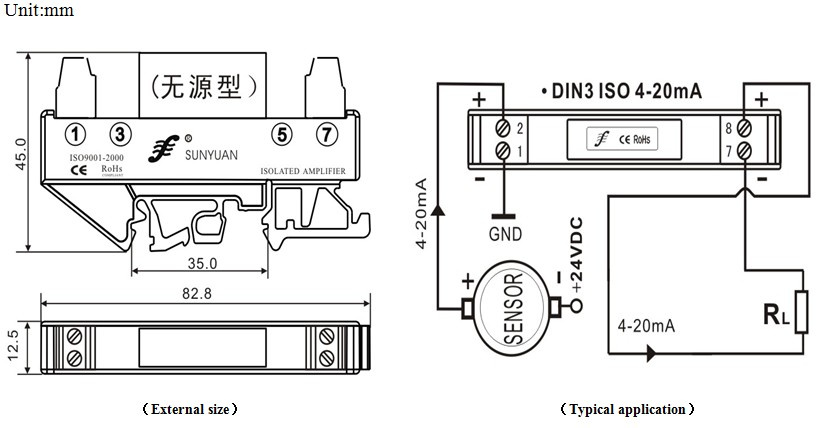

DIN Rial 4-20mA Loop Powered Isolator Circuit:
