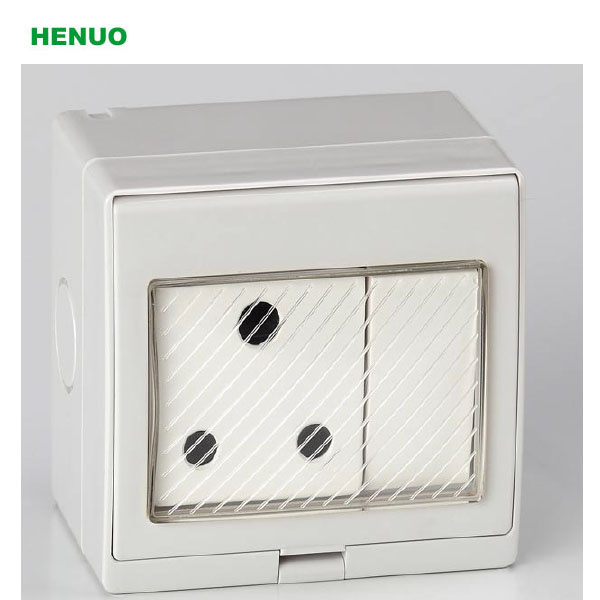

The waterproof switch is suitable for the ports, shipping, cold storage, car washing and kitchen, bathroom, balcony,
such as washing machines placed in damp or spray more environment, operation can be through the transparent
membrane directly. Can be equipped with belt joint module series accessories and basic series; Framework can be
installed in front of the fastening screw on the base of enough cable wiring space, make the installation Powder
compact and reliable, convenient maintenance, ensure the protection grade is IP65 are closed.
Protection level and installation: (IP65 when the lid is closed, the lid is opened IP2)
S surface installation IP55 [1.2.3 module] or IP55 [(2 + 2). 1. 2. 6 (3 + 3) module]
S embedded installation IP65 [3 modules]
Technical features:
S electrical flow: 13 a voltage: 250 v
S reference standard: IEC60670
S recognition certificate: CE, VDE CCC
S shell color: grey RAL7035
S resistance to fire, glow wire test 650 ° C
S cable accessories: three phi 23 mm out of the mould and 1 PGI6 cable casing.
S wall installation hole diameter is 4.4 mm; 6 m grounding terminals.
S IP55 embedded products with gaskets, installed on the wall, through anti-seepage coating processing, maintain their integrity.
Reference standard: IEC60670
Colour: Grey RAL 7035
Accepts module series accessories(and basic series accessories with specific bearing adaptors)
Protection degree: IP55 with the cover colsed
Cable accessories: Three 23mm knock out openings and one with PG16 cable sleeve
Resistance to fire: Glow-wire test 650 degree
It is possible to install more then one box closed together.
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
