Distribution Transformer /Power Transformer/Power Substation
| Price: |
US $ 500-90000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
S9-M-30-2000kVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LV: |
0.4 |
| Hv: |
6 6.3 10 10.5 11 |
| Tapping: |
± 5% or ± 2X2.5% |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Three Winding |
| Brand: |
Ville |
Product Description
General:

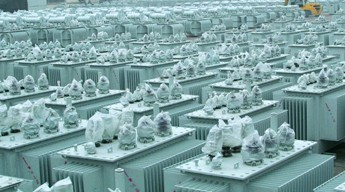

Different from normal type, S9 - M -30 -2000KVA Three phase oil-immersed transformer is cooled by the corrugated plate of tank without conservator. It is applicable to 10kV, 50Hz power transmission and distribution system for power supply and lighting in industrial and agricultural field.
Feature:
1. Energy saved:
Compared with old type S7, no-load loss decreases 10.25% averagely and on-load current decreases 37.9%, which means 18.39% operation cost is reduced.
2. Long-term reliable service life:
Fully enclosed transformer tank and rim shall be bolted together or welded firmly. Isolation between oil and air keeps insulation away from moisture, which lowers insulation aging and improves service life.
3. Free from untanking:
Free from untanking before operation, so its cost is saved.
4. Free from maintenance
5. Low noise:
Impacted structure in design, new material and new technology adopted and low noise.
6. Small size and artistic appearance:
Owing to the corrugated plate used for radiation, oil volume is changed by adjustment and compensation through expansion and shrinkage of corrugated plate when the temperature of oil is changed. Corrugated tank is small size in good looking.
Model
| Rated Voltage
(kVA)
| Voltage Combination | Vector Group
| Po
(w)
| Pk
(w)
| Io
(%)
| Uk
(%)
| Soud Level
(dB)
|
HV
(kv)
| Tapping | LV
(kv)
|
S9-M-30/10
| 30
| 6
6.3
10
10.5
11
| ± 5%
or ± 2x2.5%
| 0.4
| Y,yn0
or
D,yn11
| 130
| 600
| 2.1
| 4.0
| 44
|
S9-M-50/10
| 50
| 170
| 870
| 2.0
|
S9-M-63/10
| 63
| 200
| 1040
| 1.9
|
S9-M-80/10
| 80
| 250
| 1250
| 1.8
| 48
|
S9-M-100/10
| 100
| 290
| 1500
| 1.6
|
S9-M-125/10
| 125
| 340
| 1800
| 1.5
| 49
|
S9-M-160/10
| 160
| 400
| 2200
| 1.4
|
S9-M-200/10
| 200
| 480
| 2600
| 1.3
| 51
|
S9-M-250/10
| 250
| 560
| 3050
| 1.2
|
S9-M-315/10
| 315
| 670
| 3650
| 1.1
| 53
|
S9-M-400/10
| 400
| 800
| 4300
| 1.0
|
S9-M-500/10
| 500
| 960
| 5150
| 1.0
| 55
|
S9-M-630/10
| 630
| 1200
| 6200
| 0.9
| 4.5
|
S9-M-800/10
| 800
| 1400
| 7500
| 0.8
| 57
|
S9-M-1000/10
| 1000
| 1700
| 10300
| 0.7
|
S9-M-1250/10
| 1250
| 1950
| 12000
| 0.6
| 59
|
S9-M-1600/10
| 1600
| 2400
| 14500
| 0.6
|
S9-M-2000/10
| 2000
| 2520
| 17820
| 0.6
|
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:

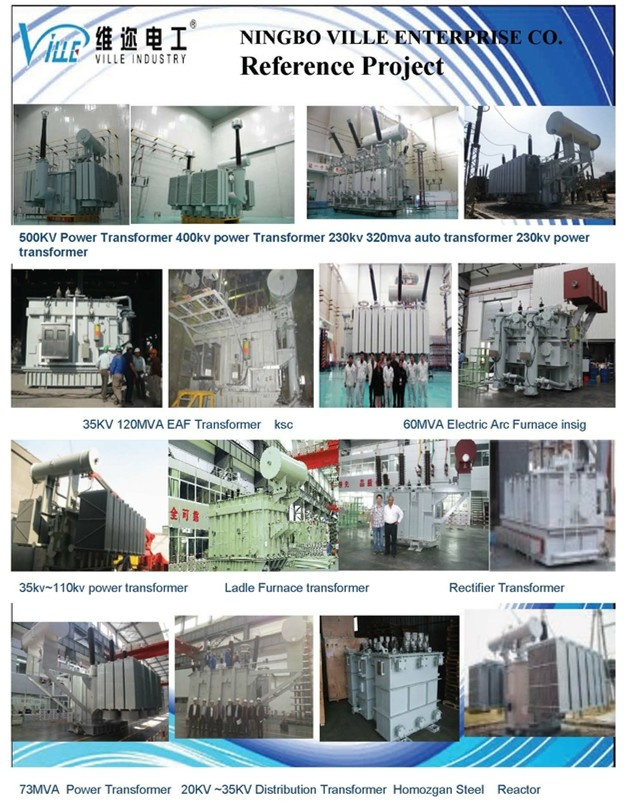

Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier"
