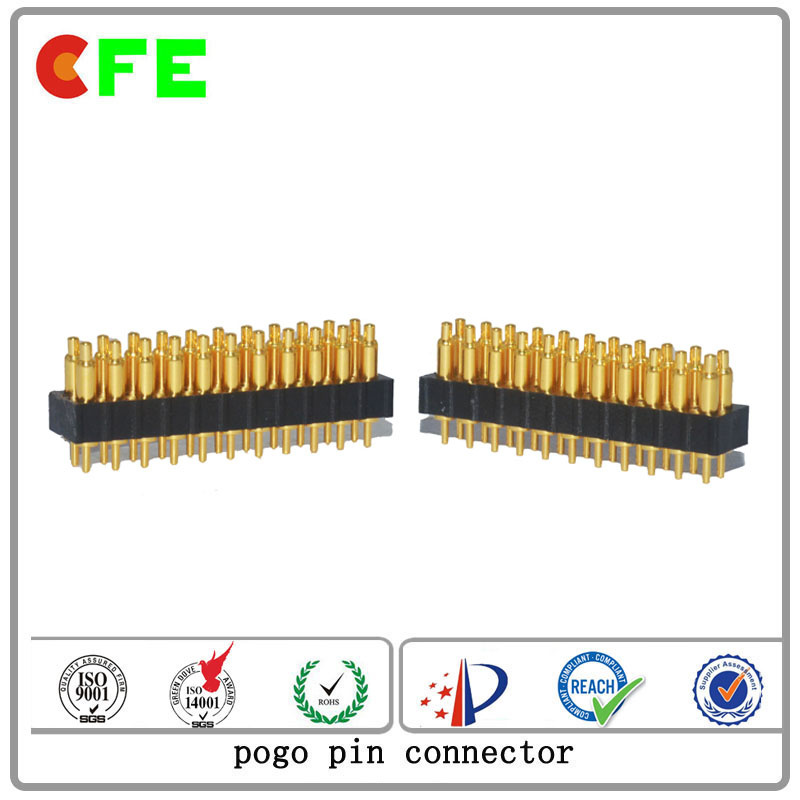

Double Row DIP 22pin Pogo Pin Connector
| Price: |
US $ 0.8-1.3/Piece |
| Min Order: |
2000/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Double row DIP 22pin pogo pin connector
Product Details:| Materiral: | Brass/ aluminum /steel /iron /zinc /alloy |
| Any other materials and dimension depends on customers demand |
| Istruction: | Rate Current:1-10A(Different structures) |
| Rate Voltage:AC/DC 12V |
| life Test:100,000-1,000,000cycles |
| Reflow Tmep:265° ,4~5sec |
| Contact Resistance:50mΩ Max(stillness,Working stroke) |
Type of Pogo Pin | SMT Type:1.27-2.54mm pitch |
| Pin height(mm) | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 | 7.0 | 7.5 | 8.0-15.0 |
| Number of pins (single row) | 1-64-pin |
| Number of pins (double row) | 2-128-pin |
| DIP type:1.27-2.54mm pitch |
| Pin height(mm) | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 | 7.0 | 7.5 | 8.0-15.0 |
| Number of pins (single row) | 1-64-pin |
| Number of pins (double row) | 2-128-pin |
| Right angle type |
| Pin height (mm) | / | / | / | / | 6.5 | 7.0 | 7.5 | 8.0 |
| Number of pins (single row) | 1-64-pin |
| Number of pins (double row) | 2-128-pin |
| Solder cup type: 2.54mm pitch |
| Pin height (mm) | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 | 7.0 | 7.5 | 8.0 |
| Number of pins (single row) | 1-64-pin |
| Number of pins (double row) | 2-128-pin |
| SMT/DIP/right angle type female connector: 2.54mm pitch |
| Number of pins (single row) | | | | 1-64-pin |
| Number of pins (double row) | 2-128-pin |
Products Advantages: 1)Customize high current pogo pin more 1600 items(2A-20A).
2)Customize Pogo pin connector more 300 items(2pin-30pin).
3)Development 1.27Pitch 2-40pin standard products (6mm-15mm pin's lenght).
4)2.54pitch 2.5mm height, 2-40pin standard products,housing height 1.27mm.
5)Development 2.54pitch 2-128pin male & female pogo pin connector.
4.5mm-15mm height SMT/DIP/Right Angle/Solder Cup .
Product Application:
1)PCB board;
2)Digital camera/Medical products/ Printer cartridges;
3)Golf handle/ Electric vehicles/ Telephony applications;
4)Cardiac defibrillator/Car charging /Air purifier;
5)LED flat luminaries/LED flash light/Tablet/Laptop/PC ;
6) Power bank/ Digital product/ Small household electrical application;
7)Charging products/Signal transmission products etc.
About us:
Over 14-year experience in manufacturing pogo pin connector and we own 25items national patent of spring contacts .
Highest life test has up to 1,000,000 cycles can customized various shapes, small structure and high current (2A-30A).
Our factory has been accredited ISO 11439:2013, ISO 14001 certifications, spring loaded connector accord with HF, RoHS Directive-compliant, REACH standard,
100% electrical test provided on function before delivery.
We believe that: quality to win markets, improvement to win progress/welcome customer's all over world come to our factory to give guidance for development.
Company picture:
| More details: |
|
| Delivery Terms | EXW,FOB,CIF |
| Payment Terms | T/T ,HSBC,PayPal,Western Union,Paypal,Wechat |
| Shipping Method | UPS,DHL,TNT,EMS,Fedex |
| Lead time | Sample time:5-7 working days
Order time:15-20 working days |

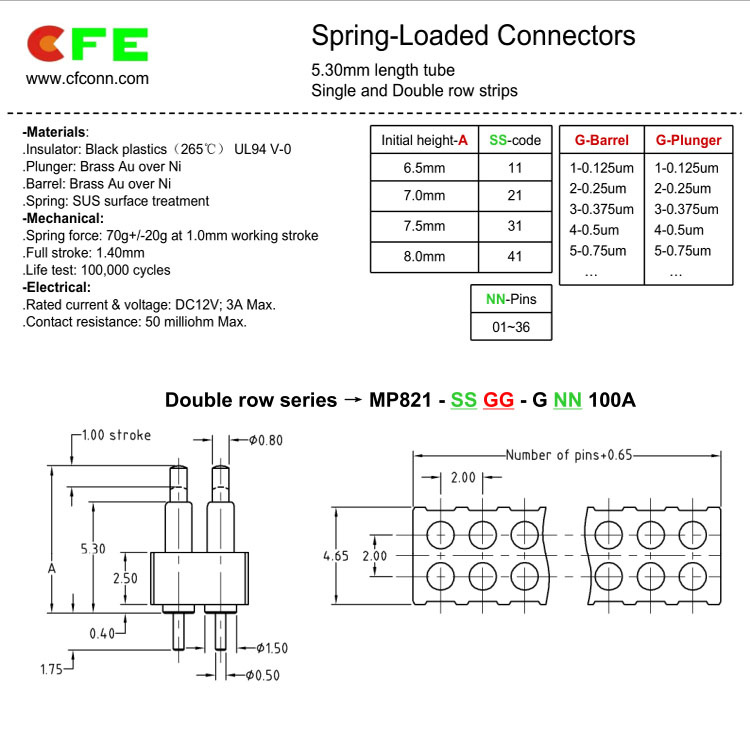

| Prod Model: |
MP820-SSGG-GNN100A |
| Product Name: |
Double Row DIP 22pin Pogo Pin Connector |
| Rated Voltage: |
12V |
| Rated Current: |
3A |
| Life Test: |
100000cycles |
| Material: |
Copper |
| Application: |
Power/Charing |
| Type: |
DIP |
| Species: |
Connector |
| Certification: |
ISO9001/RoHS/Reach/MSDS/SGS |
| Brand: |
Cfe |
