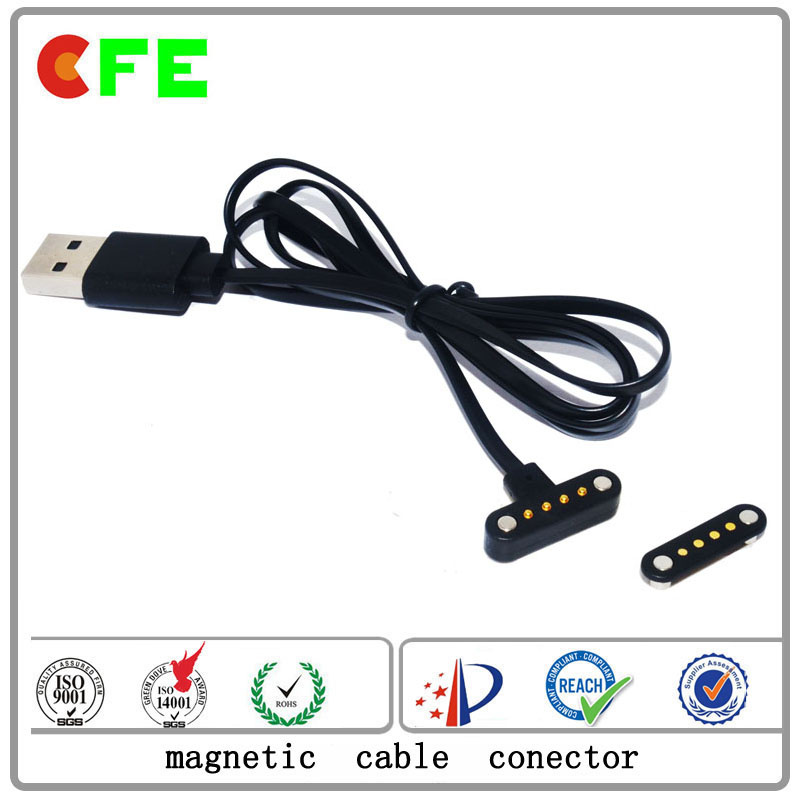

Waterproof 4pin Magnetic Cable Connector with USB
| Price: |
US $ 0.1-2/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

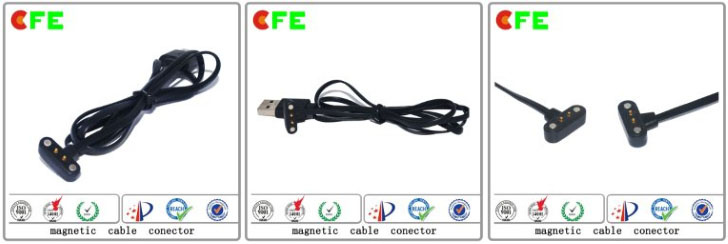

Waterproof 4pin Magnetic Cable Connector With USB
| CM-BP34911-04300H0A&M-BP34901-04300H0F |
| Current | Voltage | Magnetic force | Contact force | Life test | Color |
| 1A | 12V | 150g | 40+/-20g | 20,000cycles | Black |
Related products:
CFE Magnetic connector strong point1) Operate in a long life cycle, supports 100,000-200,000 reattachment life times;2) Can achieve excellent waterproof and dust-proof (IPX8)3) Support a high current (5A-10A), faster recharge, with less operating time;4) Excellent corrosion rating (48H-120H) meet the harsh environments;5) A reliable high RF signal transmission. it is USB 2.0 and HDMI 1.3 certified.6) Customize service according to product application and requirement.Strict test project of connector:| Mechanical performance test: | 1) contact retention force |
| 2) normal force, durability |
| 3) Life testing |
| Electrical performance test: | 4) insulation resistance |
| 5) dielectrics withstanding voltage |
| 6) LLCR |
| 7) temperature rise |
| 8) salt spray |
| 9) humidity |
| Environmental performance test: | 10) vibration |
| 11) shock |
| 12) temperature |

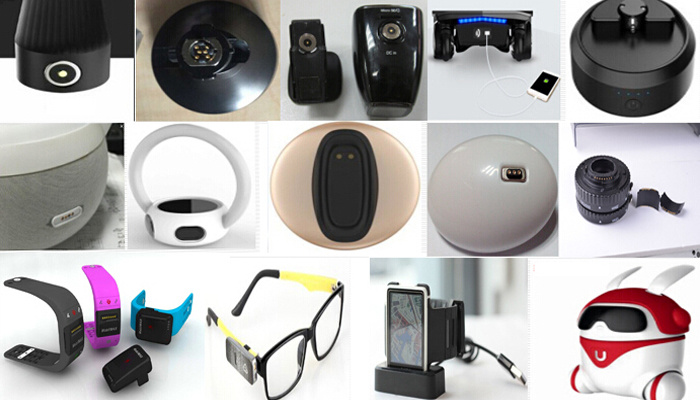

Magnetic connector Application:1.Consumer electronics, Smart wearable, Digital Electronics products;
2.Medical products, Teaching products, Fitness and health equipment;
3.Marine equipment,Aerospace electronic,fire-fighting equipment,
4.LED lights, Automatic device, Smart Handel devices,Smart home products.
Why choose us:1.Life test up to 1000,000 cycles.
2.All products can pass HF, RoHS REACH standard.
3.100% electrical test provided on function before delivery.
4.In-house developed 90 styles standard products.
5.Customized over 220 solutions in widely fields.Client visiting:
Main clients group:
Patent:
More details: | Delivery Terms | EXW,FOB,CIF |
| Payment Terms | T/T ,HSBC,PayPal,Western Union |
| Shipping Method | UPS,DHL,TNT,EMS,Fedex |
| Lead time | Sample time:7-10 working days
Order time:15-20 working days |
FAQ1)How can I get samples?Please notice us the product part number and qty.2)What is the sample leading time and mass production.Sampling: 7 working days; Mass production 15~20 working days.3)Can our information and relevant confidential documents be protected?Yes, We will sign the NDA with our clients and keep on top confidential. 4)What is the payment term?Our standard payment term is 50% deposit, 50% balance before shipment.5)What certificate and test report do you have?CFE is ISO9001 and 14001 certificated company, has RoHS,HF,REACH, MSDS. 6)What product test do you do?
CFE do Salt Spray, Sweat test, Retention Force, Life test, Adsorption and so on. 7) What kind of environment protection report you can?CFE is ISO9001 and 14001 certificated company, has RoHS,HF,REACH, MSDS.8) What kindly warranty we can get for shipment?All shipment from CFE is 100% electrical test provided on function before shipment.
| Prod Model: |
CM-BP34911-04300H0A |
| Current: |
1A |
| Voltage: |
12V |
| Magnet Force: |
150g |
| Certificate: |
ISO9001/RoHS/Reach/MSDS/SGS |
| Type: |
Male and Female |
| Material: |
Magnet/Pogo Pin/PVC |
| Application: |
Wearable Electronics |
| Production Process: |
Ultrasound/Molding |
| Certification: |
ISO9001/RoHS/Reach/MSDS/SGS |
| Brand: |
Cfe |
