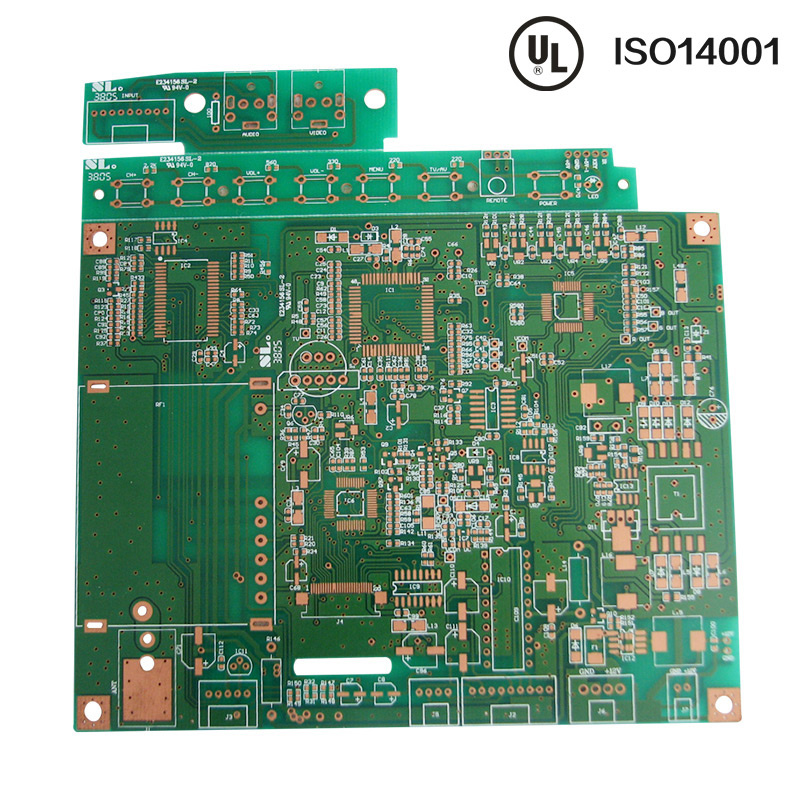

Double Side PCB with Immesion Gold

Name: Double Side PCB with Immesion Gold
Brand: all-electronics-online.com
SKU: 811631775
Availability: InStock
Rating: 4.7 (84 reviews)

Price:	US $ 60-75/Square Meter
Min Order:	5/Square Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

double side PCB with immesion gold
1.We have 17 years PCB manufacturer history and have 10 years export
experience.
2.We have 527 employes and monthly 60,000 square meters capacity.
3.We produce 1-32 Layers FR4 PCB and 1-2 Layers Aluminium PCB
4.Possesses kinds of surface finish processing lines such as immersion Gold, HASL lead free and leaded, OSP,etc...
5.We approved by ISO/TS 16949, UL E253641.
6.We are one of the biggest PCB manufacturer in South east area of China.
7.Lead time: 2 weeks regular, urgent cases 3-7 days
8.the most renowned PCB manufacturer in Zhejiang province,China. All production obey government regulations of environment protection.
9.Zapon is recognized as eco-friendly factory by government.
10.ZAPON main customers: APTECH USD7.0 million.Sansumg Meters USD6.5 million Infiniti : USD5.1 million CREE USA: 1.6 million

Item		Capabilities
Number of Layers		Double Side
Material		FR-4,CEM-3,HighTg, Aluminum, Halogen Free
PCB Thickness	Min.thickness	0.2mm(8mil)
	Max.thickness	3.2mm(128mil)
Surface finished		Gold Plating
		Immersion Gold(Silver)
		HAL Lead Free
		Hot Air Solder Leveling(HASL)
		Entek Coating (OSP)
Solder Mask		Green,White,Black,Yellow,Red,Blue
Other printing		Gold Finger
		Carbon Print, Peelable Mask
		Solder Mask Plugged Hole
Copper thickness		1/ 2 oz (18 μm) - 4 oz (140 μm)
Min. Finished Hole Size		0.3mm(12mil)
Hole Size Tolerance (PTH)		+/ -0.076mm (3 mil)
Hole Size Tolerance (NPTH)		+/-0.05mm (2 mil)
Min. Line Width and Spacing		0.10mm (4 mil)
Min. Solder Mask Clearance		0.076mm (3 mil)
Min. Annular Ring		0.1mm (4mil)
Profile and V-Cut		CNC-Routing, Stamping and Beveling,V-CUT,CNC
Special Process		Micro-section, Chamfer for Gold Finger

Prod Model:	Double Sided PCB-102
Surface:	OSP,Immersion Gold,Hal Lead Free,Hal
Solder Mask:	Green,Red,Yellow,White,Black,Blue,etc
Shipment:	Air,Sea,Express(DHL TNT FedEx EMS UPS)
Sample Date:	3-5days
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Application:	Electronics
Base Material:	Fr-4
Brand:	Zapon

Zhejiang Zapon Electronic Technology Co., Ltd is a professional manufacture of Aluminum base PCB and rigid PCB. Which have the factory of Alu base PCB, double side PCB, multi-layer PCB and PCB assembly etc. We have the ability of produce for any medium and mass quantity. The machine of our factory are on work all day and all night. With Zapon as a supplier, you will have the highest quality, quickest delivery. The detail information of our company are in below:
Establishment: 1997
Registered Capital: US$10M
The area of company: 16800m2
The number of staff: 622
Products:
Aluminum base PCB: One side aluminum PCB and double side Alu-PCB
Double-side PCB: FR-4, CEM-3, High Tg, Halogen Free
Multi-layer PCB: 4 to 22 layers(FR-4, High Tg, Rogers)
Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS
THE CAPACITY OF PRODUCTION: 50, 000SQM. /month

All your inquiry of quotation will be replied within 4-hour. Our engineer will be on your service at any time. And your satisfaction is our biggest wish! ! !

Through the efforts of all staffs. Zapon has stood out among PCB company like us and has became a leading company in this industry. We have won accptance and set up a good reputation in domestic and international markets with the competitive price, the perfect atfter-sales services and the wide support of the suppliers. Our main clients in Samsung, Turkey, Italy, England, Portugal, America etc. Our products meet the military and IPC standards and specifications.

We hope we can be your best partner and offer you the best price with good service Do the biggest assistant for you to reduce your cost.
As long as we have the first cooperation, we believe we will get together, we are confident for establishing a long term friendship once our first cooperation made.
