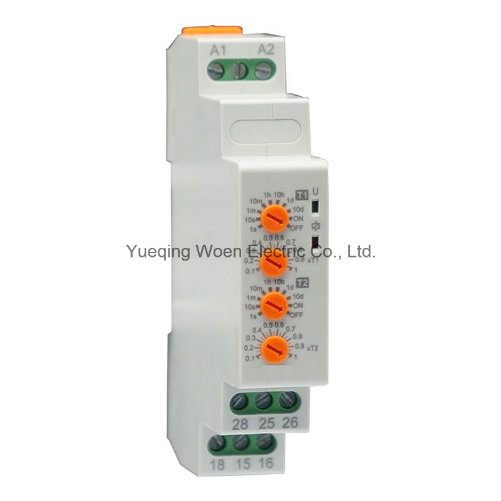

Double Stage Time Relay

Double Stage Time Relay
Price: US $ 8.0/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram
Prod Model: TR/TD23

Product Description



Features

1. 1 module DIN rail housing
2.  2 x Delay ON
3. Repeat accuracy ≤0.2%
4.  10 selectable time range
5.  Fine adjustment of selected time range
6. Green LED indication for supply/timing status
7. Red LED indication for relay status
8. Conforms to IEC 61812

Technical data
ModelTR/TD23
Supply terminalsA1,A2
Supply voltageAC/DC24-240V
Rated frequency50/60Hz
Time range0.1s-10days
setting accuracy≤5%
Repetition accuracy≤0.2%
Output contacts2C/O
Current rating8A/AC1
Contacts capacityAC-15: 2A
Insulation voltage250V
Mechanical life10000000
Electrical life1000000
Protection degreeIP20
Pollution degree3
Altitude≤2000m
MountingTH-35 Rail




Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
